Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter
Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter
Stainless Steel Woven Mesh Parameter
Material: Stainless Steel Wire, Nickel Wire, Copper Wire, etc.
Stainless Steel Wire is divided into SUS 201, 202, 304, 316, 316L, 321, etc

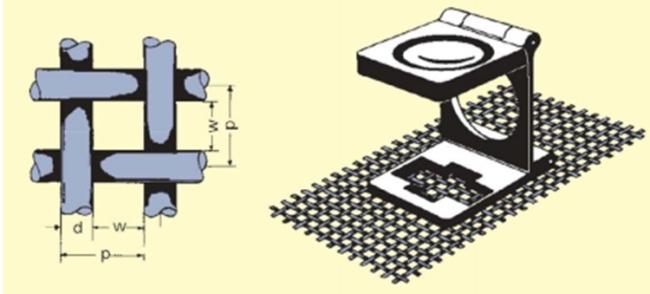

Mesh Count: The number of meshes per inch of length is called mesh.
The mesh number reflects the thinness or density of the mesh.
Generally, stainless steel meshes higher than 80 meshes are called fine meshes
those below 80 meshes are called coarse meshes

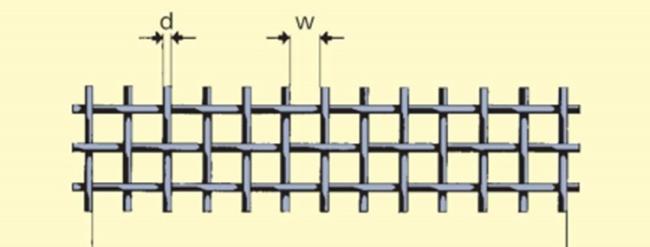

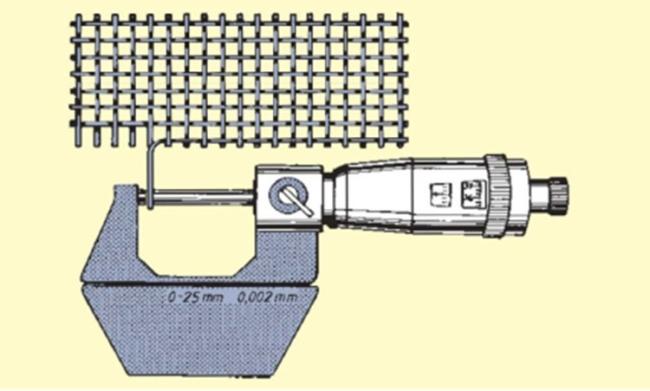

Wire Diameter: Unit -- mm, wire number, inch.
In length direction -- Warp (warp wire / line wire)
In width direction -- Weft (cross wire / weft wire / shute wire)
Aperture / Mesh Size / Opening Size / Hole Size: Unit -- mm, inch.

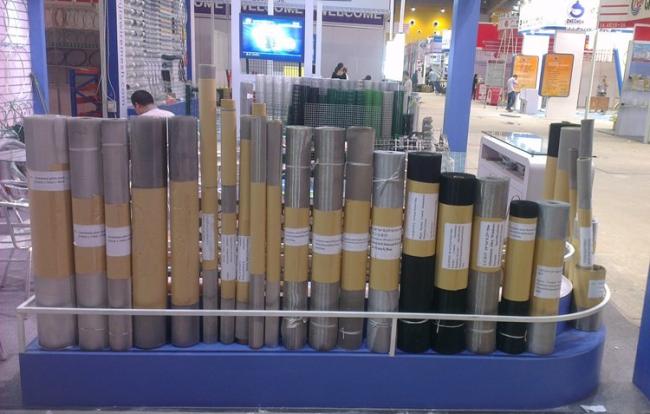

Stainless Steel Woven Mesh Pictures:
Stainless Steel Woven Mesh Specification
| Weaving Type | Mesh Count | Wire Diameter | Aperture (mm) | Weight (kg/m2) |
| Plain | 1 | 2mm | 23.4 | 2.0 |
| Plain | 2 | 1.5mm | 11.2 | 2.25 |
| Plain | 3 | 1.0mm | 7.466 | 1.5 |
| Plain | 4 | 0.9mm | 5.45 | 1.62 |
| Plain | 5 | 0.8mm | 4.28 | 1.6 |
| Plain | 6 | 0.7mm | 3.53 | 1.47 |
| Plain | 7 | 0.6mm | 3.02 | 1.26 |
| Plain | 8 | 0.5mm | 2.675 | 1.0 |
| Plain | 9 | 0.5mm | 2.322 | 1.125 |
| Plain | 10 | 0.8mm | 1.74 | 3.2 |
| Plain | 11 | 0.7mm | 1.609 | 2.695 |
| Plain | 12 | 0.6mm | 1.516 | 2.16 |
| Plain | 13 | 0.5mm | 1.453 | 1.625 |
| Plain | 14 | 0.4mm | 1.414 | 1.12 |
| Plain | 15 | 0.4mm | 1.293 | 1.2 |
| Plain | 16 | 0.35mm | 1.237 | 0.98 |
| Plain | 17 | 0.35mm | 1.144 | 1.041 |
| Plain | 18 | 0.35mm | 1.061 | 1.10 |
| Plain | 19 | 0.35mm | 0.986 | 1.16 |
| Plain | 20 | 0.4mm | 0.97 | 0.97 |
| Plain | 21 | 0.3mm | 0.909 | 0.945 |
| Plain | 22 | 0.3mm | 0.854 | 0.99 |
| Plain | 23 | 0.25mm | 0.854 | 0.718 |
| Plain | 24 | 0.25mm | 0.858 | 0.48 |
| Plain | 25 | 0.2mm | 0.816 | 0.50 |
| Plain | 26 | 0.2mm | 0.776 | 0.52 |
| Plain | 27 | 0.2mm | 0.740 | 0.54 |
| Plain | 28 | 0.3mm | 0.607 | 1.26 |
| Plain | 29 | 0.3mm | 0.575 | 1.30 |
| Plain | 30 | 0.3mm | 0.546 | 1.35 |
| Plain | 40 | 0.25mm | 0.385 | 1.25 |
| Plain | 50 | 0.2mm | 0.308 | 1.0 |
| Plain | 60 | 0.15mm | 0.273 | 0.675 |
| Plain | 70 | 0.14mm | 0.222 | 0.686 |
| Plain | 80 | 0.12mm | 0.197 | 0.576 |
| Mesh Count | Wire Diameter (mm) | Aperture (mm) |
| 80 | 0.12 | 0.197 |
| 100 | 0.1 | 0.154 |
| 120 | 0.08 | 0.131 |
| 150 | 0.07 | 0.099 |
| 200 | 0.05 | 0.077 |
| 300 | 0.03 | 0.054 |
| 400 | 0.018 | 0.0455 |
| 500 | 0.0128 | 0.038 |
