Coarse Plain Weave Wire Mesh 1-80 Mesh Stainless Steel Screen Wear Resistant
Coarse Plain Weave Wire Mesh 1-80 Mesh Stainless Steel Screen Wear Resistant

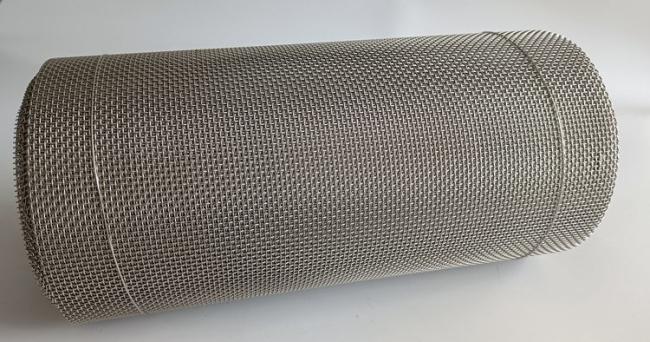

Coarse Mesh -- Stainless Steel Wire Mesh Screen
Generally less than 80 mesh, called coarse mesh.
Features: The mesh surface is flat, wear-resistant, high-temperature resistant, corrosion-resistant, and can play a protective role.
Application: It can be used for window screens of various buildings, bulletproof and anti-theft security window mesh, slope protection mesh, mine screens, laboratory test sieves, etc.
| Weaving Type | Mesh Count | Wire Diameter | Aperture (mm) | Weight (kg/m2) |
| Plain | 1 | 2mm | 23.4 | 2.0 |
| Plain | 2 | 1.5mm | 11.2 | 2.25 |
| Plain | 3 | 1.0mm | 7.466 | 1.5 |
| Plain | 4 | 0.9mm | 5.45 | 1.62 |
| Plain | 5 | 0.8mm | 4.28 | 1.6 |
| Plain | 6 | 0.7mm | 3.53 | 1.47 |
| Plain | 7 | 0.6mm | 3.02 | 1.26 |
| Plain | 8 | 0.5mm | 2.675 | 1.0 |
| Plain | 9 | 0.5mm | 2.322 | 1.125 |
| Plain | 10 | 0.8mm | 1.74 | 3.2 |
| Plain | 11 | 0.7mm | 1.609 | 2.695 |
| Plain | 12 | 0.6mm | 1.516 | 2.16 |
| Plain | 13 | 0.5mm | 1.453 | 1.625 |
| Plain | 14 | 0.4mm | 1.414 | 1.12 |
| Plain | 15 | 0.4mm | 1.293 | 1.2 |
| Plain | 16 | 0.35mm | 1.237 | 0.98 |
| Plain | 17 | 0.35mm | 1.144 | 1.041 |
| Plain | 18 | 0.35mm | 1.061 | 1.10 |
| Plain | 19 | 0.35mm | 0.986 | 1.16 |
| Plain | 20 | 0.4mm | 0.97 | 0.97 |
| Plain | 21 | 0.3mm | 0.909 | 0.945 |
| Plain | 22 | 0.3mm | 0.854 | 0.99 |
| Plain | 23 | 0.25mm | 0.854 | 0.718 |
| Plain | 24 | 0.25mm | 0.858 | 0.48 |
| Plain | 25 | 0.2mm | 0.816 | 0.50 |
| Plain | 26 | 0.2mm | 0.776 | 0.52 |
| Plain | 27 | 0.2mm | 0.740 | 0.54 |
| Plain | 28 | 0.3mm | 0.607 | 1.26 |
| Plain | 29 | 0.3mm | 0.575 | 1.30 |
| Plain | 30 | 0.3mm | 0.546 | 1.35 |
| Plain | 40 | 0.25mm | 0.385 | 1.25 |
| Plain | 50 | 0.2mm | 0.308 | 1.0 |
| Plain | 60 | 0.15mm | 0.273 | 0.675 |
| Plain | 70 | 0.14mm | 0.222 | 0.686 |
| Plain | 80 | 0.12mm | 0.197 | 0.576 |
