Plain Twilled 3um-300um Stainless Steel Woven Mesh Hollander Weave Mesh
Price:
negotiation
MOQ:
10 Square Meter
Delivery Time:
7-20 days
Brand:
JIUFU
Product Description
Plain Twilled 3um-300um Stainless Steel Woven Mesh Hollander Weave Mesh
Hollander Weave Stainless Steel Wire Mesh, same as Stainless Steel Dutch Wire Mesh

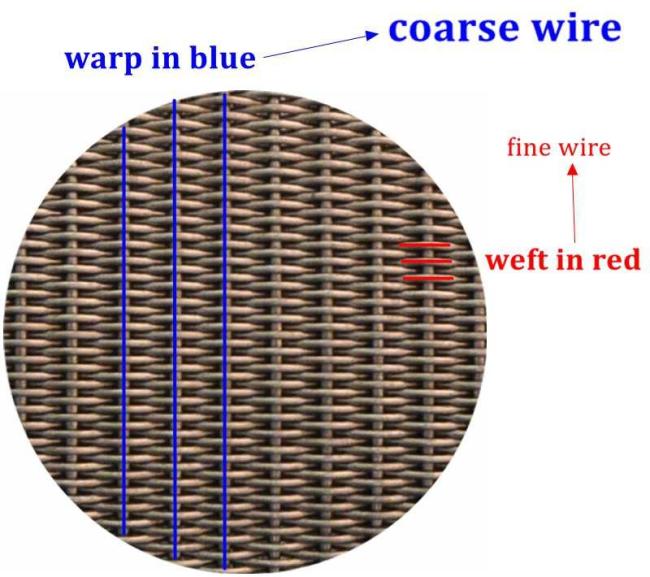

Hollander weave, a plain weave or twilled weave with the warp wires of larger diameter than the weft wire. The weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires which can be knocked up.
Feature: this cloth is strong and firm, micron-scale small mesh size.
Application: most frequently used for high pressure filtration.
Hollander Weave Mesh Parameter
|
Product Name
|
Hollander Weave Mesh, Dutch Wire Mesh
|
|
Material
|
Stainless steel wire, Nickel wire, Black iron wire, Copper wire, etc
|
|
Wire Diameter
|
0.018-0.6mm
|
|
Weave Type
|
Plain Dutch Weave; Twilled Dutch Weave
|
|
Width
|
1m-1.6m
|
|
Feature
|
Stable and Fine Filtration Performance
|
|
|
Used for precision pressure filter, fuel filter, vacuum filter, also suitable for aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries.
|
|
Common Specifications
|
12 x 64 mesh * 0.58mm x 0.40mm * 280um
24 x 110 mesh * 0.355mm x 0.25mm * 120um 30 x 150 mesh * 0.25mm x 0.18mm * 80um 45 x 250 mesh * 0.16mm x 0.112mm * 56um 70 x 350 mesh * 0.11mm x 0.08mm * 35um 127 x 1100 mesh * 0.07mm x 0.05mm * 17um 165 x 1400 mesh * 0.071mm x 0.04mm * 16um 200 x 1400 mesh * 0.071mm x 0.04mm * 12um 254 x 2000 mesh * 0.04mm x 0.028mm * 8um 325 x 2300 mesh * 0.035mm x 0.025mm * 5um 400 x 3100 mesh * 0.035mm x 0.019mm * 3um |
Hollander Weave Mesh Packing and Transporation
