20 40 60 Mesh Mild Steel Black Wire Mesh Extruder Filter Screen
20 40 60 Mesh Mild Steel Black Wire Mesh Extruder Filter Screen
Black Wire Mesh Introduction:
Black Woven Wire Mesh is also called black woven wire cloth, is woven by the low carbon steel wire without any surface treatment. Black woven wire mesh is normally used in plastic industry, rubber industry, industrial filtration, petroleum and chemical filter and filter food industry.
Black woven wire mesh is commonly supplied in rolls, we can cut into pieces in round, rectangular, square, oval and other shapes as your requirements.
Black Wire Mesh Features:
1. Even meshes.
2. Smooth surface.
3. Outstanding filtering performance.
4. Widely applications.
5. Long service life.
6. Low cost.
The black woven wire mesh is widely used as the filtration material in various fields.
Plastic recycling.
Rubber industry.
Industrial filtration.
Oil and chemical filtration.
Grain industry filtration.
| Mesh/Inch | Opening (mm) | Wire Diameter (mm) |
Reference weight (kg/sq. meter) |
| 10 mesh × 10 mesh | 1.94 | 0.6 | 1.8 |
| 10 mesh × 10 mesh | 1.98 | 0.56 | 1.56 |
| 12 mesh × 12 mesh | 1.52 | 0.6 | 2.16 |
| 12 mesh × 12 mesh | 1.56 | 0.56 | 1.88 |
| 18 mesh × 18 mesh | 0.96 | 0.45 | 1.82 |
| 18 mesh × 18 mesh | 1 | 0.41 | 1.52 |
| 18 mesh × 18 mesh | 1.04 | 0.37 | 1.23 |
| 18 mesh × 18 mesh | 1.06 | 0.35 | 1.1 |
| 20 mesh × 20 mesh | 0.86 | 0.41 | 1.68 |
| 20 mesh × 20 mesh | 0.9 | 0.37 | 1.38 |
| 22 mesh × 22 mesh | 0.74 | 0.35 | 1.33 |
| 22 mesh × 22 mesh | 0.79 | 0.3 | 0.99 |
| 24 mesh × 24 mesh | 0.7 | 0.35 | 1.5 |
| 26 mesh × 26 mesh | 0.63 | 0.35 | 1.66 |
| 28 mesh × 28 mesh | 0.6 | 0.31 | 1.36 |
| 30 mesh × 30 mesh | 0.64 | 0.31 | 1.46 |
| 32 mesh × 32 mesh | 0.5 | 0.29 | 1.36 |
| 34 mesh × 34 mesh | 0.47 | 0.28 | 1.3 |
| 36 mesh × 36 mesh | 0.47 | 0.28 | 1.3 |
| 38 mesh × 38 mesh | 0.41 | 0.26 | 1.1 |
| 40 mesh × 40 mesh | 0.39 | 0.25 | 1.2 |
| 40 mesh × 40 mesh | 0.41 | 0.23 | 1.06 |
| 40 mesh × 40 mesh | 0.43 | 0.21 | 0.88 |
| 42 mesh × 42 mesh | 0.365 | 0.24 | 1.1 |
| 44 mesh × 44 mesh | 0.347 | 0.23 | 1 |
| 46 mesh × 46 mesh | 0.332 | 0.22 | 1 |
| 48 mesh × 48 mesh | 0.319 | 0.2 | 0.96 |
| 50 mesh × 50 mesh | 0.318 | 0.19 | 0.91 |
| 50 mesh × 50 mesh | 0.338 | 0.17 | 0.72 |
| 56 mesh × 56 mesh | 0.248 | 0.17 | 0.81 |
| 60 mesh × 60 mesh | 0.27 | 0.15 | 0.68 |

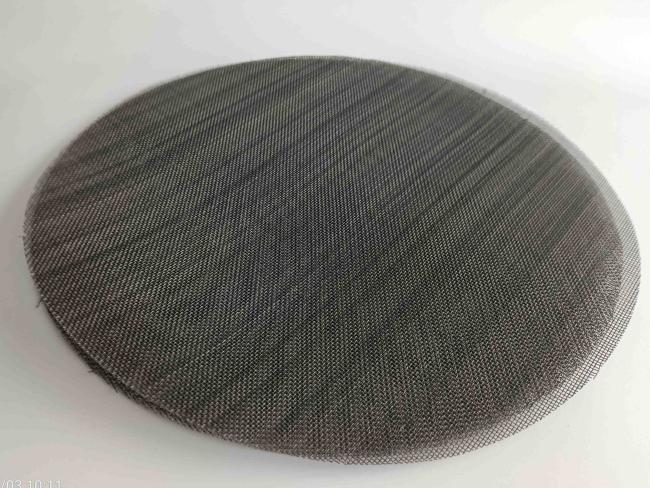

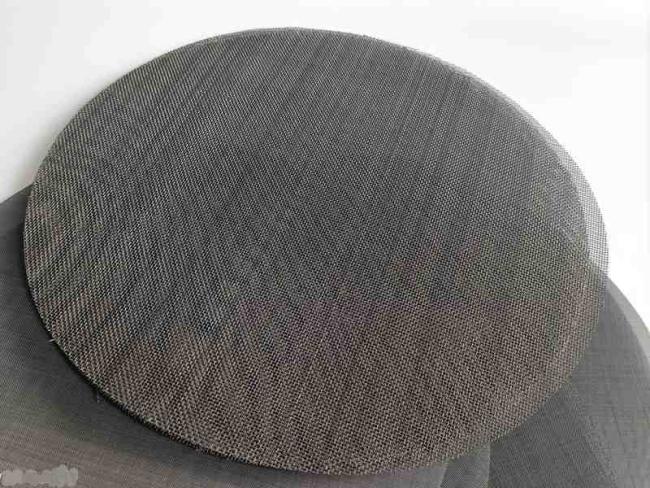

Black Wire Mesh Disc Filter Detailed Picture
Black Wire Mesh Packing
