AISI304 150mm Width 0.15mm SS Knitted Wire Mesh For Gas Liquid Separator
Price:
negotiation
MOQ:
50kg
Delivery Time:
7-20 days
Brand:
JIUFU
Product Description
AISI304 150mm Width 0.15mm SS Knitted Wire Mesh For Gas Liquid Separator
Stainless Steel Knitted Wire Mesh Type
HG/T21618-1998 Specifications of knitted wire mesh for mesh demister are: SP, DP, HR, HP four standard specifications.
Three types of knitted wire mesh are specified in the standard, namely standard type, high-efficiency type and high-penetration type.
| HG/T21618-1998 Technical parameters of vapor-liquid filter for wire mesh demister: | |||
| Type | Volume weight (kg/m3) | specific surface area (㎡/m3) | void ratio ε |
| SP | 168 | 529.6 | 0.9788 |
| HP | 128 | 403.5 | 0.9839 |
| DP | 186 | 625.5 | 0.9765 |
| HR | 134 | 291.6 | 0.9832 |
| Standard SP knitted wire mesh technical parameters: | ||||||
| wire diameter dw(㎜) | mesh width allows (㎜) | bulk density ρ(㎏m3) | specific surface area α(㎡/m3) | void ratio ε | ||
| flat wire | round wire | ±20 | 150 | flat wire | round wire | 0.981 |
| 0.1×0.4 | 0.23 | 475 | 320 | |||
| 28 layers of wire mesh per 100mm thick mesh pad | ||||||
| High Efficiency DP knitted wire mesh technical parameters: | ||||||
| wire diameter dw(㎜) | mesh width allows (㎜) | bulk density ρ(㎏m3) | specific surface area α(㎡/m3) | void ratio ε | ||
| flat wire | round wire | ±20 | 182 | flat wire | round wire | 0.977 |
| 0.1×0.28 | 0.19 | 626 | 484 | |||
| 32 layers of wire mesh per 100mm thick mesh pad | ||||||
| High Penetration HP knitted wire mesh technical parameters: | ||||||
| wire diameter dw(㎜) | mesh width allows (㎜) | bulk density ρ(㎏m3) | specific surface area α(㎡/m3) | void ratio ε | ||
| flat wire | round wire | ±20 | 98 | flat wire | round wire | 0.9875 |
| 0.1×0.4 | 0.23 | 313 | 217 | |||
| 28 layers of wire mesh per 100mm thick mesh pad | ||||||

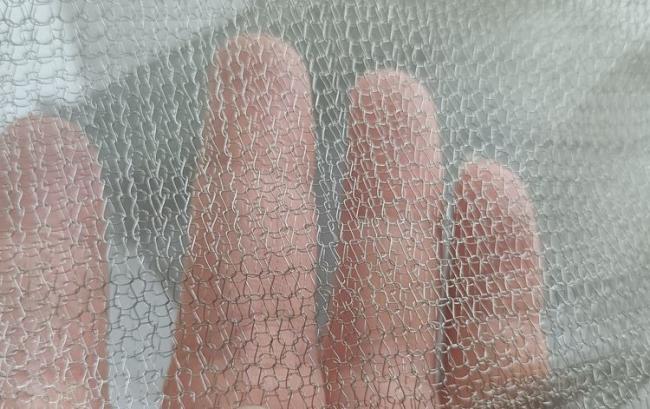

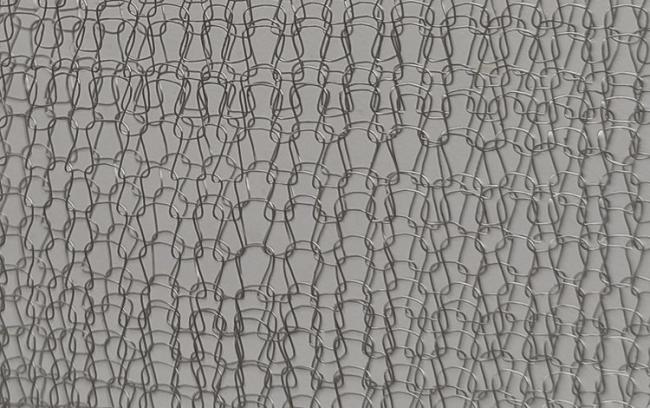

150mm Width 0.15mm Wire Stainless Steel Knitted Wire Mesh Pictures
FAQ
1. who are we?
We are based in Hebei, China, start from 2012, sell to Oceania(20.00%), North America(10.00%), Southeast Asia(10.00%), Eastern Europe(10.00%), South America(10.00%), Northern Europe(8.00%), Central America(8.00%), Western Europe(8.00%), Southern
Europe(8.00%), Eastern Asia(5.00%), South Asia(3.00%). There are total about 51-100 people in our office.
We are based in Hebei, China, start from 2012, sell to Oceania(20.00%), North America(10.00%), Southeast Asia(10.00%), Eastern Europe(10.00%), South America(10.00%), Northern Europe(8.00%), Central America(8.00%), Western Europe(8.00%), Southern
Europe(8.00%), Eastern Asia(5.00%), South Asia(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
stainless steel wire mesh, filter wire mesh,window screen, decorative wire mesh, perforated wire mesh, etc.
4. why should you buy from us not from other suppliers?
The company has 20 years of research and development experience, with our own factories, equipment, machinery, technical personnel
and so on. Our independent research and development of the art diamond net, obtained a patent technology.
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, EUR, RMB;
Accepted Payment Type: T/T, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese
