Electromagnetic Shielding Copper Wire Mesh Roll 0.76m—1.2m Width
Electromagnetic Shielding Copper Wire Mesh Roll 0.76m—1.2m Width
Copper Wire Mesh Introduction:
Copper wire mesh,We also call it shielding copper wire mesh,
Material: copper wire
Features: non-magnetic, wear-resistant, good sound insulation, filter electron beam
Specifications: 4 mesh/inch - 30 mesh. inch
Width: 0.76—1.2m
Weave: plain, twill.
Uses: Screen all kinds of particles, powders, china clay, glass, wall sound insulation, electronic display screen.
The main function
1: Electromagnetic radiation protection, effectively blocking the damage of electromagnetic waves to the human body.
2: Shield electromagnetic interference to ensure the normal operation of instruments and equipment.
3: Prevent electromagnetic leakage and effectively shield the electromagnetic signal of the display window.
Copper Wire Mesh Specification
| Mesh Count | Wire Diameter | Mesh Count | Wire Diameter | Mesh Count | Wire Diameter |
| mm | mm | mm | |||
| 1 | 3.00 | 22 | 0.370 | 104 | 0.060 |
| 2 | 1.00 | 22 | 0.380 | 120 | 0.090 |
| 2 | 1.50 | 24 | 0.270 | 120 | 0.058 |
| 2 | 1.60 | 24 | 0.350 | 120 | 0.080 |
| 3 | 1.20 | 26 | 0.400 | 140 | 0.070 |
| 4 | 1.00 | 26 | 0.300 | 145 | 0.045 |
| 4 | 1.19 | 28 | 0.300 | 145 | 0.060 |
| 5 | 1.00 | 30 | 0.230 | 150 | 0.060 |
| 6 | 0.90 | 30 | 0.250 | 150 | 0.050 |
| 7 | 0.80 | 30 | 0.300 | 160 | 0.050 |
| 8 | 0.70 | 31.8 | 0.250 | 160 | 0.040 |
| 8 | 0.80 | 40 | 0.190 | 160 | 0.035 |
| 10 | 0.30 | 40 | 0.200 | 165 | 0.050 |
| 10 | 0.60 | 50 | 0.180 | 180 | 0.050 |
| 10 | 0.61 | 50 | 0.200 | 180 | 0.040 |
| 10 | 0.63 | 50 | 0.225 | 200 | 0.053 |
| 12 | 0.350 | 60 | 0.122 | 200 | 0.050 |
| 12 | 0.550 | 60 | 0.160 | 200 | 0.040 |
| 14 | 0.500 | 60 | 0.190 | 220 | 0.050 |
| 15 | 0.230 | 64 | 0.100 | 230 | 0.035 |
| 16 | 0.280 | 66.8 | 0.080 | 230 | 0.030 |
| 16 | 0.315 | 70 | 0.120 | 250 | 0.040 |
| 16 | 0.450 | 80 | 0.120 | 250 | 0.035 |
| 16 | 0.500 | 80 | 0.130 | 250 | 0.030 |
| 16.9 | 0.250 | 80 | 0.140 | 270 | 0.035 |
| 18 | 0.315 | 90 | 0.110 | 270 | 0.030 |
| 18 | 0.380 | 100 | 0.035 | 280 | 0.035 |
| 18 | 0.500 | 100 | 0.050 | 300 | 0.030 |
| 20 | 0.400 | 100 | 0.055 | 270 | 0.030 |
| 20 | 0.450 | 100 | 0.100 | 280 | 0.035 |
| 22 | 0.300 | 100 | 0.110 | 300 | 0.030 |

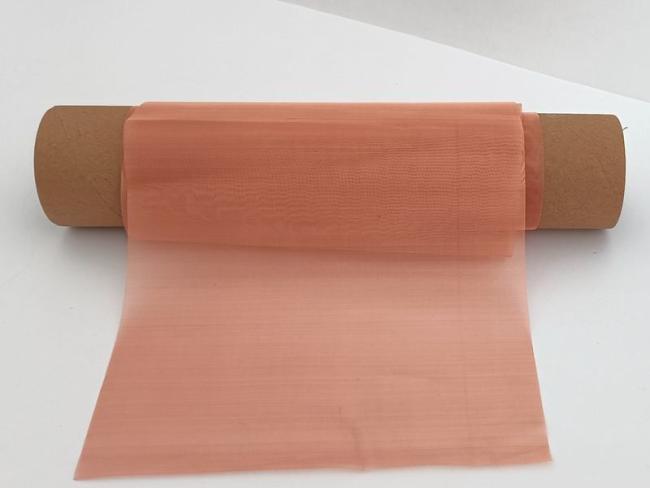

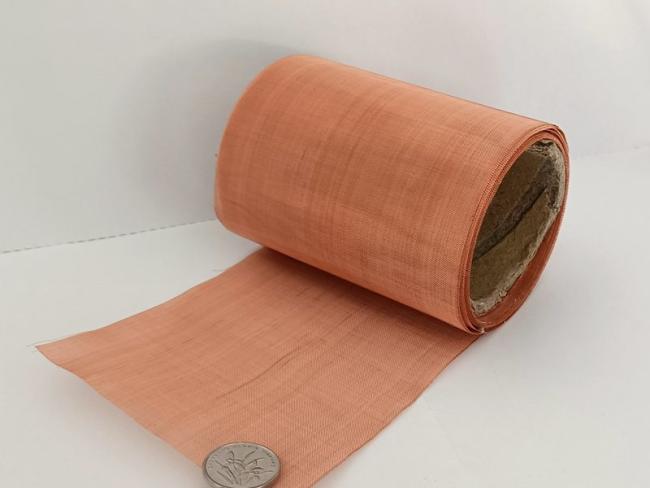

Copper Wire Mesh Product Details:

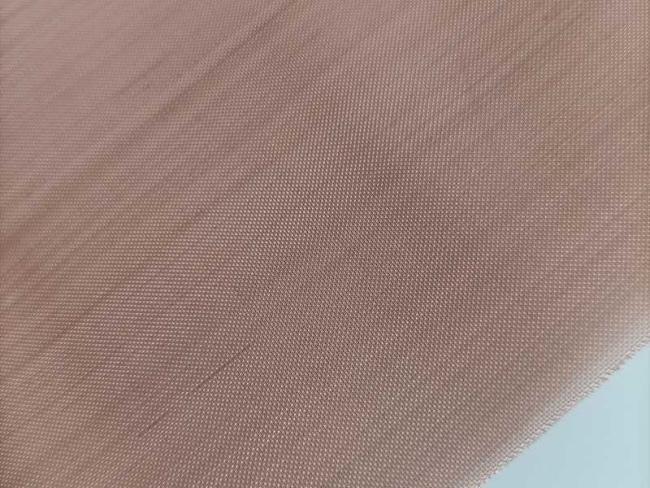

80 mesh

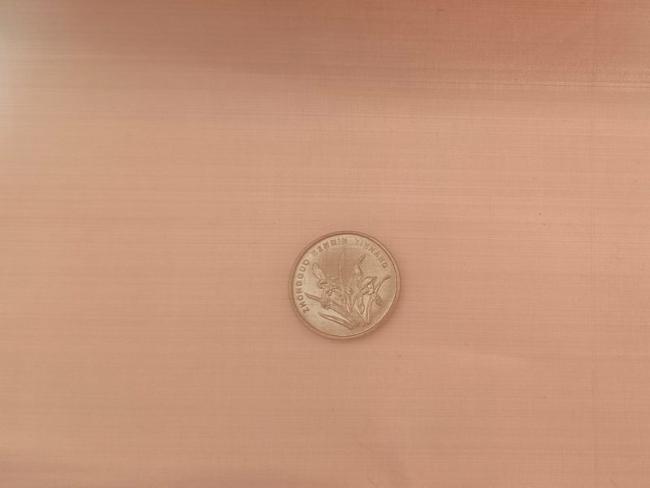

300 Mesh

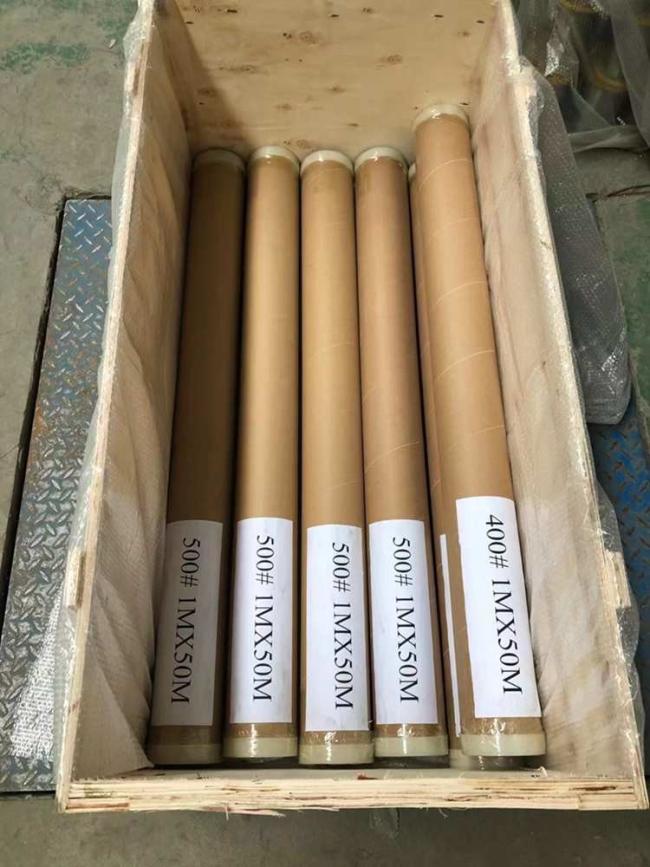

Copper wire mesh Packing box
