Four Shaft Automatic Tape Cutting Machine Adhesive PVC Kraft Paper Tape
Four Shaft Automatic Tape Cutting Machine For Adhesive Tape/ PVC Tape/ Kraft Paper Tape
Features:
1.Four shaft automatic turret cutting, high cutting efficiency, easy operation.
2. Driven by sevo moto, cutting width can be set up freely, high precision.
3. PLC programmable control, operating with touch screen and easy maintenance.
4. Sevro knife feeding, auto adjustment for circular knife angel, neat cutting edge.
5. Cutting with main shaft , circular knife stepless speed adjustable by frequency conerting,suiable for different kinds of material.
6. The log roll is fixed up by compressed air automatically when overturn.
Technical Parameters:
| Model | UW-703D-3 | UW-704E-3 | UW-706 |
| Material | Foam ADHESIVE TAPE .ETC | ||
| Voltage(V/Hz) | 3Phase 380V 50HZ | ||
| Effective work width | 1300mm/ 1600mm | ||
| Max.cutting diameter | Φ300mm | ||
| Inner diameter of core | Φ76mm~Φ77mm | ||
| Min.slitting width | 0.5mm (please confirm) | ||
| Feeding way | Liquid pressure cut feeding | Variable-Frequency cut feeding | Servo cut feeding |
| Automatic Grade | Automatic, Fully Automatic | ||
| Driven Type | Electric, Double Servo Motor | ||
| Power | 7.5KW | ||
| Weight | 1500kgs-1800kgs | ||
| Dimension(L*W*H) | 3150*1300*1440mm | ||

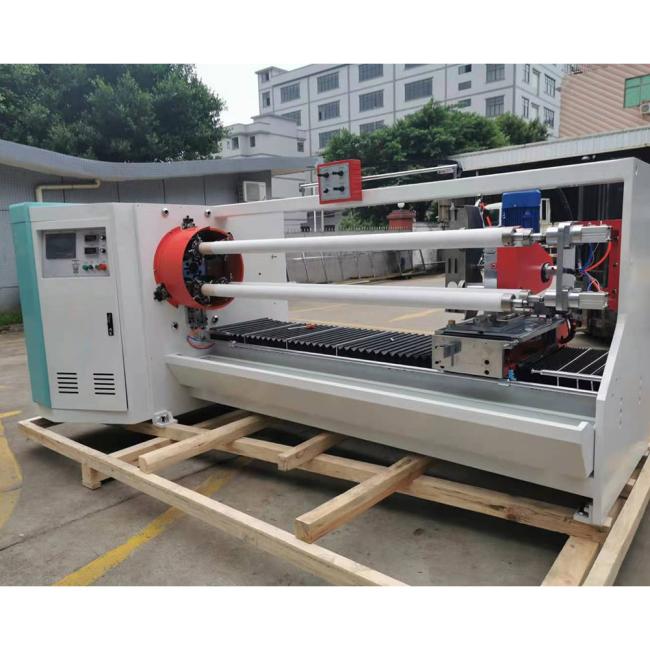

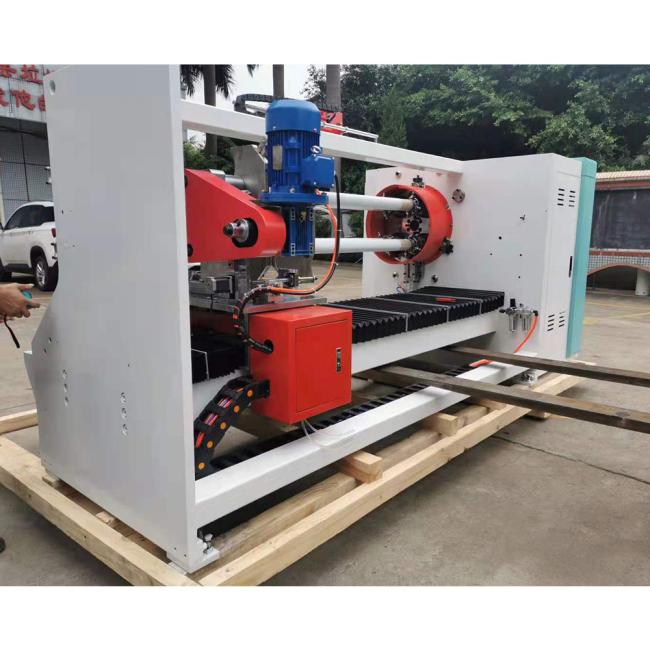

Machine photos:
FAQ:
Q:Are you Trading Company orManufacturing Factory?
A: We are the leading manufacturer in Changzhou area for 10 years,our products have competitive price and qualityguarantee.Welcome to send your inquiry!
Q: How about the Delivery time?
A: 10-15days after receiving the deposit based on the MOQ.Normally,30-35days to finish the order for a 20ft container.
Of course,we can also meet the urgent delivery time if the production schedule is not tight.Welcome to ask for the detailed deliverytime according to your order quantity!
Q:How do you pack the machine?
A: Free fumigation export plywood cases
Q: How big is the power supply?
A: Usually we provide 380V/50HZ, we can also convert the power supply to meet your local power supply, please contact us for confirmation.
Q: Can you provide quality certification?
A: Yes, we can provide the quality certificate issued by our laboratory or the quality certificate issued by a third-party international inspection agency for free, and charge an extra fee.
Q: Which machine do you require?
A: We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Q: Beat Prices?
A:We are the manufacture and our president build this companyfrom nothing.So we are the professional
and will do the best price.
Q:How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and missing parts before shipping.The detailed
inspection pictures of the order will be sent to you for your confirmation before delivery.
Q:How do you deliver the machine?
A:By sea,by air,by train or others.
Q: Will you support oversea service?
A: Yes, our engineer can go to buyer’s factory to install the machine and train the operator for buyer.
