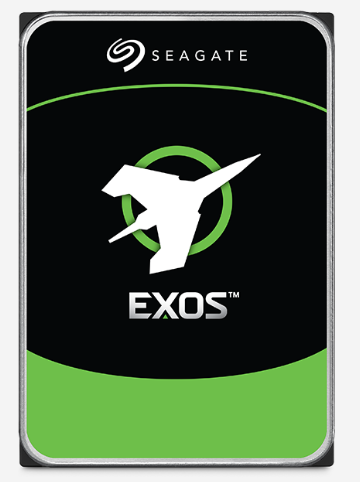

Seagate Exos Enterprise Hard Drives EXOS 20TB Model No: ST20000NM002H

Price Negotiable
Price: $880-1450 pcs Negotiable
MOQ: 1
Delivery Time: Negotiable
Brand: Seagate
Product Description


Seagate's Exos hard drives deliver extraordinary storage capacityand power efficiency for Al and data-intensive applications in cutting-edge cloud and enterprise environments.



Specifications SAS 12Gb/s
Capacity 24TB 20TB 16TB 12TB
Standard Model - Seagate Instant Secure Erase (ISE) ST24000NM007H ST24000NM007H ST24000NM007H ST24000NM007H
SED Model ST24000NM005H ST24000NM005H ST24000NM005H ST24000NM005H
SED-FIPS ST24000NM006H ST24000NM006H ST24000NM006H ST24000NM009H
FEATURES
Helium Sealed-Drive Design Yes Yes Yes Yes
Conventional Magnetic Recording (CMR) Yes Yes Yes Yes
Super Parity Yes Yes Yes Yes
PowerChoiceT Idle Power Technology Yes Yes Yes Yes
PowerBalancePower/Performance Technology Yes Yes Yes Yes
Hot-Plug Support3 Yes Yes Yes Yes
Cache, Multisegmented (MB) 512 512 512 512
RSA 3072 Firmware Verification (SD&D) Yes Yes Yes Yes
RELIABILITY/DATA INTEGRITY
Mean Time Between Failures (MTBF, hours) 2500000hr 2500000hr 2500000hr 2500000hr
Reliability Rating @ Full 24x7 Operation (AFR) 0.35% 0.35% 0.35% 0.35%
Nonrecoverable Read Errors per Bits Read <1 in 10E15 <1 in 10E15 <1 in 10E15 <1 in 10E15
Power-On Hours per Year (24x7) 8760 8760 8760 8760
512e Sector Size (Bytes per Sector) 512,520,528 512,520,528 512,520,528 512,520,528
4Kn Sector Size (Bytes per Sector) 409,641,604,224 409,641,604,224 409,641,604,224 409,641,604,224
Limited Warranty (years) 5 5 5 5
PERFORMANCE
Spindle Speed (RPM) 7200RPM 7200RPM 7200RPM 7200RPM
Max. Sustained Transfer Rate OD (MB/s,MiB/s) 285/272 285/272 285/272 285/272
Random Read/Write 4K QD16 WCD (IOPS) 168/550 168/550 168/550 168/550
Interface Ports Dual Dual Dual Dual
Rotation Vibration @ 20-1500 Hz (rad/sec2) 12.5 12.5 12.5 12.5
POWER
Idle A (W) Average 6.5 6.5 6.5 6.5
Max Operating, Random Read/Write 4K/16Q (W) 9.8.8.2 9.8.8.2 9.8.8.2 9.8.8.2
Power Supply Requirements +12Vand +5V +12Vand +5V +12Vand +5V +12Vand +5V
ENVIRONMENTAL
Temperature, Operating (°C) (Ambient / Drive Reported) 5/60 5/60 5/60 5/60
Vibration, Nonoperating: 2 to 500Hz (Grms) 2.27 2.27 2.27 2.27
Shock, Operating 2ms (Read/Write) (Gs) 40Gs 40Gs 40Gs 40Gs
Shock, Nonoperating 2ms (Gs) 200 200 200 200
PHYSICAL
Height (mm/in, max) 26.1mm/1.028in 26.1mm/1.028in 26.1mm/1.028in 26.1mm/1.028in
Width (mm/in, max) 4 101.85mm/4.010in 101.85mm/4.010in 101.85mm/4.010in 101.85mm/4.010in
Depth (mm/in, max)4 147mm/5.787in 147mm/5.787in 147mm/5.787in 147mm/5.787in
Weight (gm/lb) 685g/1.511b 685g/1.511b 685g/1.511b 685g/1.511b
Carton Unit Quantity 20 20 20 20
Cartons per Pallet/Cartons per Layer  40/8  40/8  40/8  40/8



Unmatched Capacity: Up to 32TB of storage in an industry-standard 3.5-inch formfactor delivers capacity at scale while optimizing space utilization in data centers


Breakthrough Areal Density: Exos hard drives now boast an industry-leading 3TB perplatter, enabling massive storage capacity in the same footprint for maximized Al-driven data center efficiency.


Time-Tested Excellence Meets Next-Gen Innovation: The latest generation of Exosblends 90% of trusted, proven components from previous generations with cutting-edgeMozaic technology.


Enterprise-Class Reliability: Designed for the stringent demands of cloud serviceproviders and enterprise data centers, Exos drives deliver durable, always-onperformance essential for critical enterprise applications and backed by a 5-year limitedwarranty and 2.5M-hr MTBF rating


Proven helium side-sealing weld technology: For added handling, robustness, andleak protection.


Sustainability: Built with more renewable energy and recycled materials than anyprevious Seagate product, the latest generation of Exos drives enable businesses toalign with their sustainability initiatives while reducing environmental impact.Additionally, the PowerBalance TM feature optimizes watts per terabyte.


Compatibility and Interoperability: Maintains the same form factor, interface, andcooling as previous generations, simplifying integration into existing infrastructure andreducing upgrade complexities.


Efficient cooling: Engineered for optimal heat dissipation, ensuring reliableperformance without increasing cooling requirements in your data center.


Seagate Secure: Built-in reliable data protection enhances security, safeguardingyour data against threats in enterprise environments.
