China Female Threaded Brass Swing Check Valve for sale

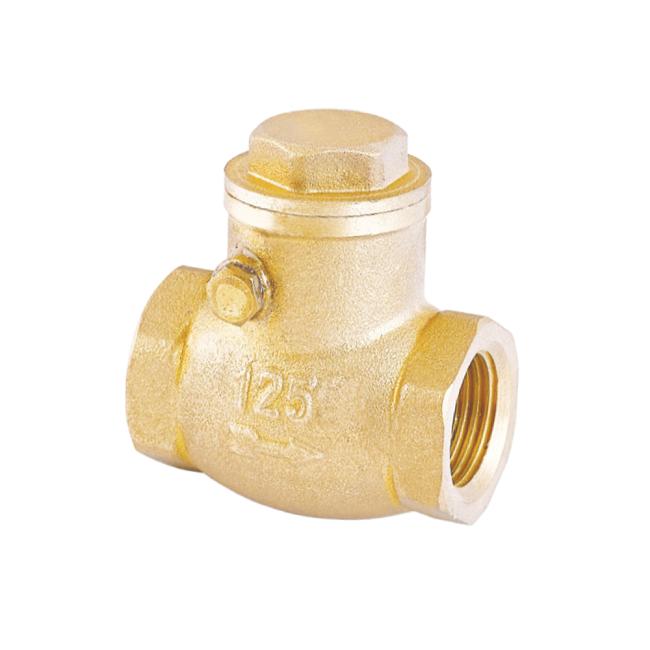

Female Threaded Brass Swing Check Valve

Price Negotiable

Price: $1.10 - $2.00/pieces

MOQ: 500 pieces

Delivery Time: Negotiable

Brand: QISHANG

Product Description

1/4" to 3"

Swing Check Valve - Bronze

Features & Benefits

* Check valves permit flow in one direction only and close automatically if flow reverses.

* Entirely automatic in action, depending upon pressure and velocity of flow within the line to perform their functions of
opening and closing

* The Crane D142 bronze check valve is of the swing variety

Connection size	1/4" to 3"
Material	Brass/zinc
Seal material	NBR (nitrile rubber)
Vacuum(bar)	0
Recommended for	Air Alcohols Lubricant Oil Water (up to 60°C)
Valve bore	40
Connection type	Inner thread cylindrical BSPP-G
Valve shape	Inline spring closed
Min temperature	-20
Max temperature	100

G 1 1/2 inch check valve made of brass with an NBR seal. The minimum differential pressure across the non-return valve must be higher than 0.04 bar (0.58 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 18 bar (261 psi). The operating temperature depends on the media: -20° C to +100° C (-4° F to 212° F) for air, -20° C to +60° C (-4° F to 140° F) for gas, and 0° C to +100° C (32° F to 212° F) for water. The Kv-value is 31.63 m3/h (527 l/min @1 bar pressure). In imperial units: Cv = 36.56 GPM @ 1 psi pressure.

Pros:
* Suitable for neutral and non-corrosive media
* Cost effective but reliable check valve
* NBR can be used with water, air, oil, solvents and alcoho
