Rust Resistance 100psi Brass Float Valve 3/4 Inch Ball Float Valve
Price:
$1.10 - $2.00/pieces
MOQ:
500 pieces
Delivery Time:
Negotiable
Brand:
Qishang
Product Description

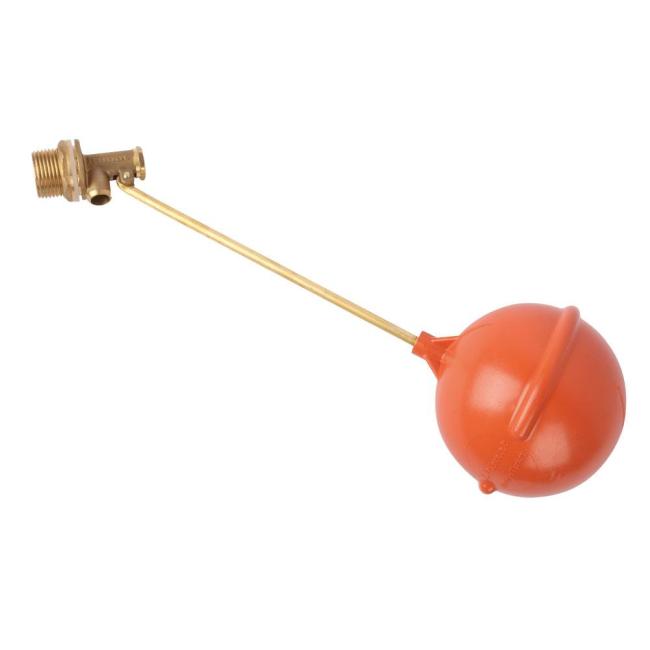

NEW Brass 3/4" Ball Float Valve / Ball Cock for Water Tank with 4.5" Float ![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Description
Float Valve, Mounting Bulkhead, Size 3/4 in, Connection Type MNPT, Rod Thread 1/4 in -20, Rod Length 2 in, Body Material Brass,
Valve Flow - Pressure (1) 65 psi, Valve Flow - Flow (1) 32.5 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 40 gpm,
Max. Pressure 100 psi, Max. Temp. 180 Degrees F, Includes Locknut and Gasket, Valve Material Brass
Float Valve, Mounting Bulkhead, Size 3/4 in, Connection Type MNPT, Rod Thread 1/4 in -20, Rod Length 2 in, Body Material Brass,
Valve Flow - Pressure (1) 65 psi, Valve Flow - Flow (1) 32.5 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 40 gpm,
Max. Pressure 100 psi, Max. Temp. 180 Degrees F, Includes Locknut and Gasket, Valve Material Brass

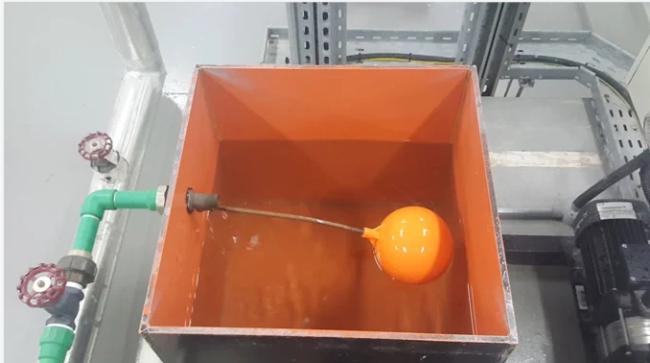

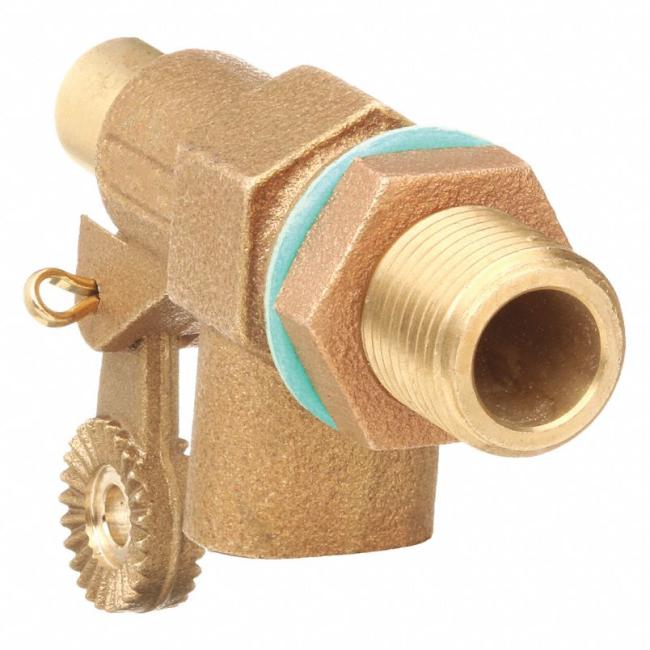

Heavy duty mechanical float valve for commercial, industrial, and agricultural applications used as inlet valve for controlling high-capacity water flow. Ideal for using in air conditioning and irrigation systems. Easy to adjust and maintain. It has a bronze body construction to provide for durability, longer service life and corrosion resistance, with a diameter of ½ inches. The water level can be set using the vertical adjuster. This float valve is designed with interchangeable parts to make replacement easy, for simple fluid level control within open tanks and vessels.
Item | Float valve | Pipe size | 1/2", 3/4" | |
Connection type | MNPT | Body material | Brass | |
Valve material | Brass | Valve flow- flow(1) | 32.5gpm | |
Rod length | 2 in | Valve flow - pressure(1) | 65psi | |
Max. pressure | 100psi | Valve flow - flow(2) | 40gpm | |
Rod thread | 1/4 in - 20 | Valve flow - pressure(2) | 85psi | |
Mounting | Bulkhead | Max. Temp. | 180 degree F | |
Includes | Locknut and gasket | Size | 1/2", 3/4" |
