EN13766 STS Oil Transfer Hose Flexible High Pressure 21 Bar
EN13766 Specifications STS Hose Flexible High Pressure 21Bar For Oil Transfer
Description

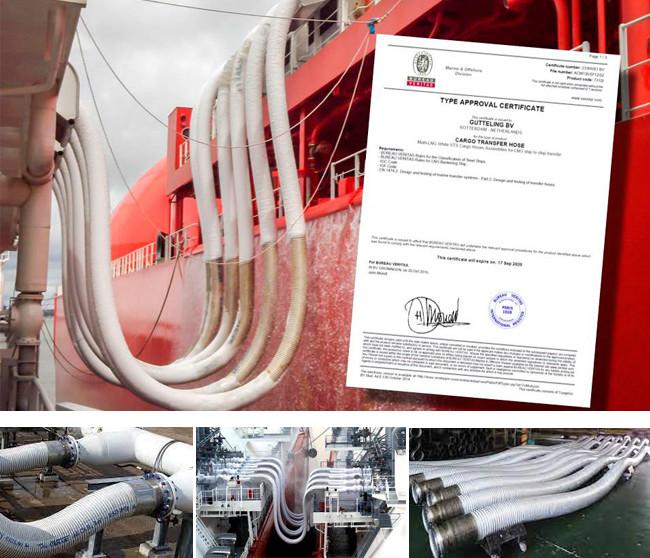

Multi-LNG White Composite STS Hose is specially designed for offshore use in rough conditions, such as Ship to Ship operations where LNG at a temperature of -164°C will be Offloaded. Composite STS Hose can be used in different operations such as Side by Side and Tandem Offloading. These hoses are also suitable as Vapor return line in combination with other transfer systems like loading arms and flexible pipeline systems.
STS hoses are certified by several class societies like DNV-GL, Bureau Veritas (BV) and American Bureau of Shipping (ABS) according to EN 1474-II and EN 12434. These hoses are ready to be used in EN 1474-III certified systems around the World. An extended test program with TNO and Shell and multiple years of operational experience has proven that Multi-LNG White Composite STS Hoses are reliable. Next to that they are also safe to use in all kind of dynamic conditions including Offshore LNG Ship to Ship transfer operations.
Specifications
| Product Name | EN13766 Specifications STS Hose Flexible High Pressure 21Bar For Oil Transfer |
| Brand Name | DockFender |
| Model Number | DF-ST10IN |
| Material | Top-Level PTFE |
| Standard | EN13765/EN13766 |
| Safety Factor | 6:1 |
| Processing Service | Moulding |
| Performance | Ageing resistance, ozone resistance, oil resistance |
| Color | Any color is OK |
| Drawing Format | Available according to design in production |
| Package | Inner-Plastic Bag; Outer -Standard Pallets, wooden case or as your demand |
| Usage | Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge |
| Service | Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Australia and other countries. |
| Model | Dimensions | Working Pressure | Safety Factor | Bending Radius | Weight | Length | ||
| Composite | [mm] | [inch] | [bar] | [psi] | [kg] | [m] | ||
| DF-CH20 | 20 | 3/4" | 16 | 230 | 6:1 | 80 | 0.8 | 40 |
| DF-CH25 | 25 | 1" | 16 | 230 | 6:1 | 100 | 1 | 40 |
| DF-CH32 | 32 | 11/4" | 16 | 230 | 6:1 | 125 | 1.3 | 40 |
| DF-CH40 | 40 | 11/2" | 16 | 230 | 6:1 | 140 | 1.5 | 40 |
| DF-CH50 | 50 | 2" | 16 | 230 | 6:1 | 180 | 2.5 | 40 |
| DF-CH65 | 65 | 21/2" | 16 | 230 | 6:1 | 200 | 3.3 | 40 |
| DF-CH80 | 80 | 3" | 16 | 230 | 6:1 | 260 | 4 | 40 |
| DF-CH100 | 100 | 4" | 16 | 230 | 6:1 | 380 | 6.8 | 40 |
| DF-CH125 | 125 | 5" | 16 | 230 | 6:1 | 440 | 9.2 | 40 |
| DF-CH150 | 150 | 6" | 16 | 230 | 6:1 | 500 | 13.2 | 40 |
| DF-CH200 | 200 | 8" | 16 | 230 | 6:1 | 750 | 18 | 40 |
| DF-CH250 | 250 | 10" | 16 | 230 | 6:1 | 900 | 26 | 25 |
| *Note: Various sizes can be customized according to the requirements. | ||||||||
Features
1. Fully compliant with EN13765 & 13766.
2. Very flexible and small bending radius.
3. Chemical oil resistance.
4. Stainless steel / HDG coupling/flange optional.
Applications
● Ship-to-ship and ship-to-shore
● LNG bulk transfer
● LNG bunkering
● Also suitable for Vapor return lines
● Oil tanker
Advantages
Hose Assemblies
Due to the often hazardous conveyance used it is recommended that composite hose should only be used with properly fixed fittings. Composite hoses are normally fitted by the wire whipped method or by external crimp. All hoses have a 6 to 1 safety factor.
Testing
All hose assemblies must be pressure tested hydrostatically to one and a half times the maximum recommended working pressure and electrically tested to confirm continuity per:
- AS2683, AS2594, AS1180, AS2117
- BSEN13765:2010, BS5842:1980
- EN13766:2010, EN ISO 8031:2009, EN ISO 1402
Fittings
A wide range of fittings can be supplied such as Camlocks, Screwed fittings, flanges etc.
Material fittings - Stainless Steel, Aluminum, Custom.
