Flexible Composite STS Hose EN13766/13765 Technology 15Bar Fuel Oil Transfer

Description

Hundreds of LNG commercial transfers are safely and efficiently conducted every year using DockFender safety transfer systems-Composite STS Hose. Integrating DockFender systems into a LNG transfer system will help protect the system and other assets such as ships, hoses and equipment in the area of the spill. Risk of injury to personnel in the immediate area is therefore minimized and risk of contamination to others and the environment is also greatly reduced.

The care and diligence demonstrated in commissioning the proven technology of DockFender Hose Systems into a LNG transfer system is what helps to protect the reputation of not just the LNG Ship Owner and LNG Operator but also the reputation of the LNG sector as a whole.

Specifications

Features

1. Good resistance to positive and negative pressure.
2. Electrostatic discharge function.
3. It can bear high pressure, wear-resist.
4. High temperature resistance.
5. It have good oil resistance and chemical corrosion resistance.
6. Use affinity is strong, feel good, do not stick, colorful.

Applications

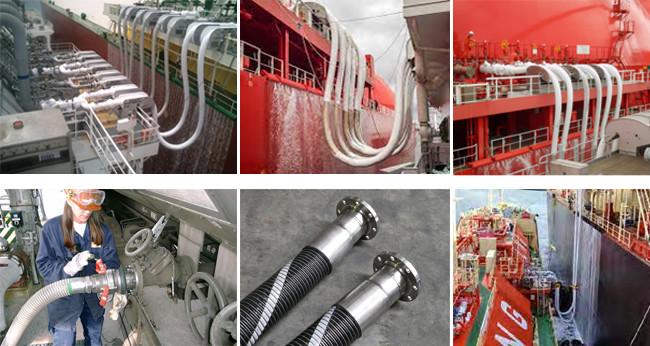

● Ship-to-ship and ship-to-shore
● LNG bulk transfer
● LNG bunkering
● Also suitable for Vapor return lines

● Oil tanker

Advantages

Hose Assemblies

Due to the often hazardous conveyance used it is recommended that composite hose should only be used with properly fixed fittings. Composite hoses are normally fitted by the wire whipped method or by external crimp. All hoses have a 6 to 1 safety factor.

Testing

All hose assemblies must be pressure tested hydrostatically to one and a half times the maximum recommended working pressure and electrically tested to confirm continuity per:

- AS2683, AS2594, AS1180, AS2117

- BSEN13765:2010, BS5842:1980

- EN13766:2010, EN ISO 8031:2009, EN ISO 1402

Fittings

A wide range of fittings can be supplied such as Camlocks, Screwed fittings, flanges etc.

Material fittings - Stainless Steel, Aluminum, Custom.
