Marine Dock Rubber Fender Weatherproof Design Anti Aging Material Oil Resistant
Marine Fenders Weatherproof Design Anti Aging Material Oil Resistant Rubber
Description

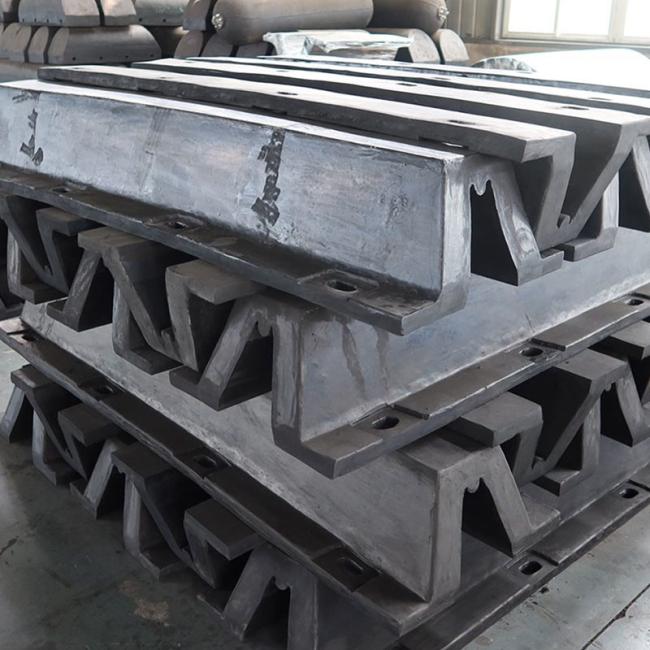

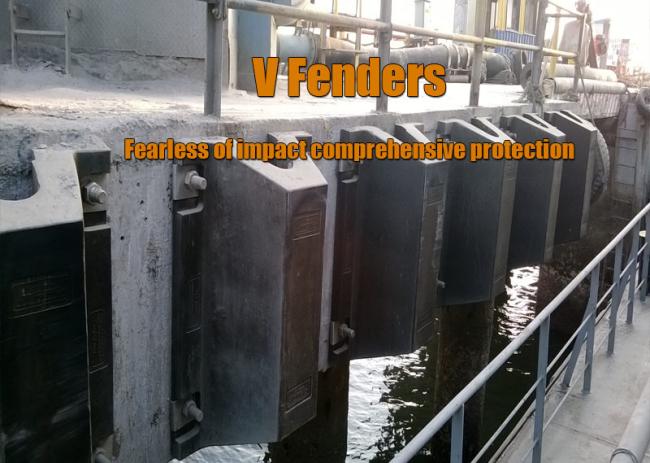

The V-Type Rubber Fender is a top-tier solution for berthing applications, combining innovative design with robust materials. Its unique V-shape maximizes energy absorption, minimizing damage to vessels and infrastructure. Constructed from high-tensile rubber, it resists abrasion, ozone, and seawater corrosion. Suitable for heavy-duty use in commercial ports, shipyards, and ferry terminals, this fender ensures smooth and safe docking operations. Customizable in hardness and dimensions, it adapts to various marine conditions. Easy to install and low-maintenance, our V-Fender enhances operational efficiency while reducing repair costs.
Specifications
|
Product Name |
Dock Rubber Fender |
|
|
Material |
Natural rubber, Silicone rubber |
|
|
Colour |
Black, or customized |
|
|
Surface |
Smooth |
|
|
Size |
Height |
200-1000mm |
|
Length |
1000-3500mm |
|
|
All sizes can be customized |
||
|
Physical Properties |
Polymer Content |
100% virgin |
|
Working temperature |
-50℃~240℃ |
|
|
Tensile strength |
≥16 mpa |
|
|
Density |
90+/-5 Per 100mm in |
|
|
Hardness |
50-70 (shore A) |
|
|
Elongation |
≥400% |
|
|
Features |
1. Through high temperature resistant |
|
|
2. Excellent tear resistant, oil resistant, aging resistant |
||
|
3. Resistant to industrial acid & alkali and good elastic |
||
|
4. Built as per PIANC2002 |
||
|
Application |
Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge |
|
|
Model |
W |
B |
F |
C |
H |
|
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
|
|
HM-DRF200H |
400 |
320 |
145 |
128 |
200 |
|
HM-DRF250H |
500 |
410 |
175 |
160 |
250 |
|
HM-DRF300H |
600 |
490 |
225 |
196 |
300 |
|
HM-DRF400H |
800 |
670 |
300 |
260 |
400 |
|
HM-DRF500H |
1000 |
840 |
375 |
325 |
500 |
|
HM-DRF600H |
1200 |
1010 |
450 |
390 |
600 |
|
HM-DRF800H |
1600 |
1340 |
600 |
520 |
800 |
|
HM-DRF1000H |
2000 |
1680 |
750 |
650 |
1000 |
Features
Fire Resistant Options
Some models include flame-retardant materials for enhanced safety in oil & gas terminals.
Eco Friendly Rubber Compounds
Uses non-toxic, recyclable materials for sustainable port operations.
High Tensile Strength
Resists tearing and cracking under extreme pressure.
Wide Temperature Tolerance
Performs reliably in -30°C to +70°C (-22°F to 158°F) conditions.
Applications
● Fishing harbors
● Naval bases
● Marinas yacht clubs
● Offshore platforms
Advantages
Low Compression Set
Maintains shape after repeated impacts.
Fire Retardant Options
Meets SOLAS safety standards for oil/gas terminals.
Product Design Engineering
PIANC OCIMF Guidelines Compliance Engineered to global marine standards.
Finite Element Analysis (FEA) Optimized
Computer-simulated stress distribution for maximum efficiency.
FAQ
1. Q: How do I determine the right fender size for my dock?
A: Our engineers can recommend sizes based on vessel displacement, berthing velocity and dock structure.
2. Q: What mounting options are available?
A: Bolt-on, chain suspension, and weld-on plate options.
3. Q: Are your fenders resistant to oil and chemicals?
A: Yes, our special compound resists oils, fuels and most chemicals.
4. Q: What maintenance is required?
A: Annual visual inspection and cleaning is recommended.
