High Abrasion Resistant Tug Boat Fenders with Excellent Shock Absorption and Weather Resistance
Tug Boat Fenders are heavy-duty marine protection systems specifically developed for tugboats operating under high-impact and continuous contact conditions. Manufactured using premium-grade natural rubber combined with multi-layer synthetic reinforcement, these fenders provide a balanced combination of flexibility, strength, and durability.

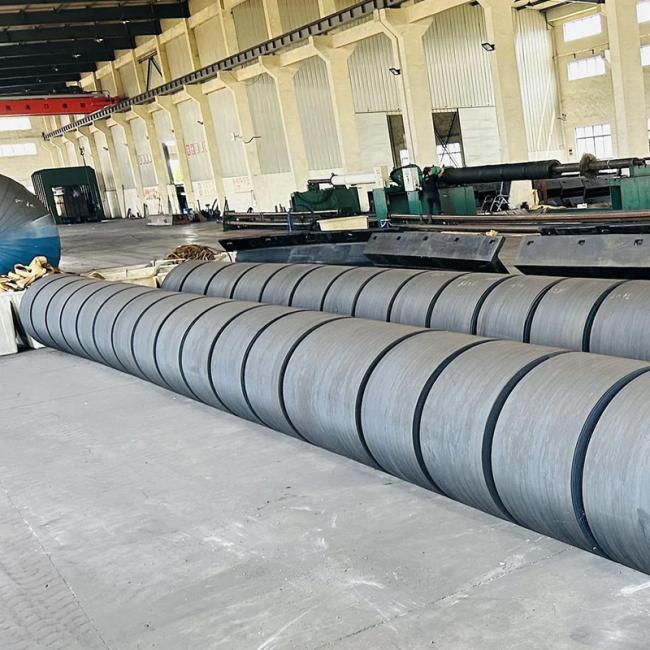

The design allows for uniform energy distribution along the contact surface, reducing peak pressure points and minimizing structural stress on both vessels. These fenders are typically produced in a continuous tubular form with various diameters and lengths to accommodate different tugboat sizes and operational demands.
A port authority in South America operated a fleet of medium-sized tugboats responsible for assisting bulk carriers and LNG vessels in a high-traffic terminal. The tugboats frequently experienced premature fender degradation due to repeated side contact during pushing operations.
Hongruntong Marine provided a redesigned fender solution featuring increased wall thickness and optimized internal reinforcement. After installation, the tugboats demonstrated improved contact stability and significantly reduced visible wear. The upgraded system maintained structural integrity even after extended operational cycles, resulting in decreased replacement frequency and improved consistency in tug performance.
| Place of Origin | China |
|---|---|
| Brand Name | Hongruntong Marine |
| Product Name | Tug Boat Fenders |
| Material | High Quality Natural Rubber |
| Warranty | 3 Years |
| Standard | PIANC2002, HGT2866-2016 |
| Tensile Strength | ≥16 MPA |
| Hardness | ≤82 Shore A |
| Lifespan | 15-20 Years |
| Service | OEM or ODM |
| Color | Customers' Requirements |
| Application | Tugboat, Workboat etc |
| D*d | E | A max | B max | C | M | F | L |
|---|---|---|---|---|---|---|---|
| 250*125 | 190 | 200 | 570 | 500 | 75 | 300 | 2-13 metres in one section or joined for longer length |
| 300*150 | 225 | 225 | 600 | 700 | 75 | 350 | |
| 380*190 | 280 | 225 | 650 | 800 | 100 | 400 | |
| 400*200 | 300 | 250 | 670 | 800 | 100 | 400 | |
| 450*225 | 350 | 250 | 700 | 850 | 100 | 400 | |
| 480*240 | 350 | 250 | 700 | 850 | 100 | 400 | |
| 500*250 | 375 | 280 | 730 | 900 | 100 | 400 | |
| 540*270 | 375 | 280 | 730 | 900 | 100 | 400 | |
| 600*300 | 450 | 300 | 800 | 900 | 125 | 500 | |
| 700*350 | 500 | 350 | 870 | 950 | 125 | 500 | |
| 800*400 | 600 | 350 | 930 | 1000 | 125 | 500 | |
| 900*450 | 675 | 350 | 1000 | 1100 | 150 | 500 |
- High Structural Flexibility with Controlled Compression: Engineered to provide precise balance between flexibility and resistance, absorbing impact energy efficiently without excessive deformation.
- Enhanced Surface Durability for Continuous Contact: Outer rubber layer formulated using advanced compounding techniques for superior resistance against wear and mechanical damage.
- High Tensile Reinforcement for Long-Term Reliability: Multiple layers of high-strength synthetic cords embedded within rubber matrix to improve tensile strength and prevent internal failure.
- Resistance to Environmental and Chemical Exposure: Designed to withstand UV radiation, saltwater corrosion, temperature fluctuations, oil, and marine contaminants.
- Port Tug Assistance Operations: Reliable protection during berthing, unberthing, and escort operations in high-traffic commercial ports.
- Shipyard Support and Vessel Positioning: Prevents accidental contact damage and provides cushioning effect during ship construction and repair.
- Offshore Towing and Marine Construction Support: Ensures safe contact under dynamic conditions during positioning of floating structures and marine construction activities.
- Deep Understanding of Tugboat Operational Demands: Application-driven approach based on comprehensive analysis of real-world working conditions.
- Flexible Manufacturing and Customization Capability: High level of customization for different vessel specifications and operational requirements.
- Consistent Quality Through Advanced Production Processes: Modern manufacturing equipment and strict production controls ensure durability and performance reliability.
- Reliable Technical Support and Service Commitment: Comprehensive support throughout entire product lifecycle from design consultation to after-sales service.
