Marine Roller Fenders with Excellent Shock Absorption Long Service Life and High Stability for Port Terminals
Hongruntong Marine Roller Fenders are high-performance marine protection systems specifically developed for offshore terminals, LNG facilities, energy ports, and heavy industrial marine structures where vessel guidance, impact absorption, and operational reliability are critically important.
These fenders are designed to support safe berthing operations in challenging offshore and coastal environments where vessels are exposed to waves, currents, tidal fluctuations, and strong wind conditions.

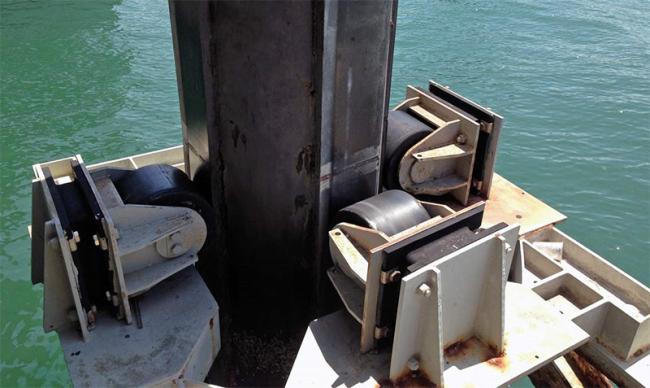

Unlike traditional static rubber fender systems, roller fenders incorporate rotating marine rubber rollers that allow vessels to move smoothly along guiding structures while minimizing friction and surface resistance. This rolling mechanism significantly improves vessel maneuverability during docking operations and reduces structural stress on both the ship hull and berth infrastructure.
An offshore LNG transfer terminal in Northern Europe required a highly reliable vessel guidance system for its newly expanded marine loading facility. The terminal regularly handled LNG carriers ranging from 80,000 CBM to 170,000 CBM under difficult environmental conditions involving strong currents, high tidal variation, and seasonal storms.
Following a comprehensive technical review, Hongruntong Marine developed a customized heavy-duty roller fender system specifically engineered for the LNG terminal's operational environment. The project included oversized roller assemblies, reinforced galvanized steel frames, marine-grade stainless steel shaft systems, and corrosion-resistant bearing components capable of supporting continuous heavy-duty operation.
After commissioning, terminal operators reported a substantial improvement in vessel maneuverability and docking stability. Tugboat coordination became more efficient, and vessel positioning accuracy improved significantly during challenging weather conditions.
| Product Name | Roller Fenders |
|---|---|
| Material | High Density NR/NBR/SBR |
| Temperature | from -30°C to 70°C |
| Specific Gravity | 1.45 g/cm3 |
| Intensity | 3 MPA |
| Hardness | 65 ± 5 Shore A |
| Elongation | ≥300% |
| Size | D1080-2900mm |
| Package | By Pallets, By carton, By Iron Cage |
| Color | Black, as Required |
| Certificate | CE, ROHS, REACH, SGS, MSDS, ISO9001 |
| Experience | 32 years |
| Market | North America, Asia, Europe, South America, Australia, Africa |
| Payment | BANK TRANSFER, 30% T/T, Balance Before Shipment, L/C |
| Model No. | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | G [mm] | H [mm] | J [mm] | K [mm] | L [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| HM-RF1080 | 1250 | 1150 | 610 | 1080 | 1150 | 220 | 460 | 800 | 340 | 60 |
| HM-RF1450 | 1530 | 1400 | 740 | 1320 | 1450 | 260 | 510 | 950 | 400 | 75 |
| HM-RF1500 | 1600 | 1450 | 765 | 1370 | 1500 | 270 | 610 | 1000 | 425 | 75 |
| HM-RF1900 | 2050 | 1850 | 975 | 1750 | 1900 | 350 | 690 | 1250 | 500 | 125 |
| HM-RF2100 | 2300 | 2100 | 1110 | 1980 | 2100 | 400 | 765 | 1400 | 550 | 150 |
| HM-RF2700 | 3000 | 2700 | 1425 | 2550 | 2700 | 500 | 895 | 1800 | 700 | 200 |
One of the primary advantages of Hongruntong Marine Roller Fenders is their advanced low-friction vessel guidance capability. The roller fender system minimizes friction by allowing vessels to move naturally along the berth structure through a controlled rolling mechanism, significantly improving maneuverability and reducing docking resistance.
Engineered using reinforced steel support systems specifically designed for offshore structural reliability. All steel components can be treated using hot-dip galvanization, marine epoxy coatings, or other anti-corrosion treatments to extend operational lifespan in aggressive offshore environments.
The roller surface is manufactured using specially engineered marine rubber compounds that maintain stable physical properties under continuous vessel contact, heavy compression loading, ultraviolet radiation, seawater exposure, and temperature fluctuations.
Hongruntong Marine provides fully customized engineering solutions including roller dimensions, frame geometry, shaft specifications, bearing systems, mounting arrangements, and anti-corrosion protection levels based on project-specific requirements.
- LNG and Energy Terminals: Roller fenders are widely used in LNG transfer facilities, oil terminals, and energy ports where large vessels require controlled low-friction guidance during berthing and cargo transfer operations.
- Offshore Loading Platforms: Offshore platforms handling supply vessels, shuttle tankers, and service ships benefit from roller fender systems that improve vessel maneuverability while protecting platform structures from repeated contact damage.
- Industrial Marine Infrastructure: Heavy industrial berths, bulk cargo terminals, and offshore processing facilities utilize roller fenders to improve operational safety, reduce maintenance costs, and support efficient vessel movement.
- Specialized Offshore Engineering Experience: Extensive experience supplying marine protection systems for offshore terminals, energy facilities, and industrial ports worldwide.
- High-Quality Manufacturing Standards: Strict manufacturing standards with precision steel fabrication, controlled rubber molding, advanced welding inspection, and comprehensive quality inspection.
- Flexible Customization Capability: Customized solutions for roller diameter, shaft structure, frame arrangement, and corrosion protection systems according to customer specifications.
- Reliable Technical Support and Long-Term Service: Comprehensive technical assistance throughout the project lifecycle including product selection, engineering consultation, and after-sales support.
