Large Dock W Type Fender Natural Rubber For Tug Boat Bumper
Large Dock Rubber Fender W Type Rubber Fender For Tug Boat Bumper
Description
W type rubber fenders are usually installed on piers or ships, with a design compression deflection of 50%, which can effectively buffer the collision force between the pier and the ship during the mooring and berthing process, thereby preventing the ship and the pier from being damaged.
Both sides of the W fender have holes for installation, and the fender has good flexibility, which is convenient to be installed on various ship's sides. It is mainly used for all kinds of tugs and barges in port operation, and can also be used for the protection of bridge piles. The fender can be installed in rows, which is an ideal protection system. And it is also ideal for protecting the berthing section of a pontoon or bridge piles.
W type fender is designed for tugboats in extreme operating conditions. It has a unique double "legs" structure with hollows. It is easy to install, and the double "legs" can be deformed at will so that it can be well wrapped around the hull.
Specifications
| Place of Origin | China |
| Brand Name | DockFender |
| Model Number | DF-W500 |
| Product Name | Large Dock Rubber Fender W Type Rubber Fender For Tug Boat Bumper |
| Material | Natural Rubber |
| Size | As per customers' requirements |
| Color | Any color or according to Pantone colors |
| Quality Certification | PIANC 2014, BV, ABS, DNV |
| Samples | 1-2pcs of free samples are available |
| Service | OEM or ODM |
| Tolerance | ±0.05 mm |
| Application | Tug Boat |

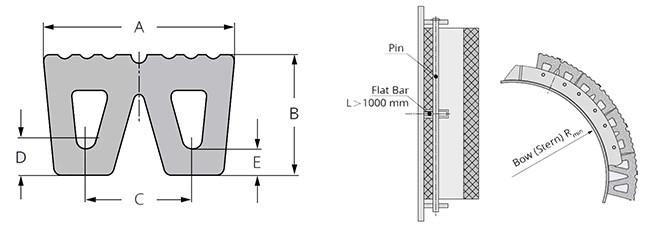

| Model | A | B | C | D | E | Lmax |
| DF-W320 | 320 | 200 | 180 | 67 | 50 | 3000 |
| DF-W400 | 400 | 250 | 220 | 75 | 55 | 3000 |
| DF-W480 | 480 | 300 | 268 | 85 | 65 | 3000 |
| DF-W500 | 500 | 350 | 268 | 85 | 65 | 3000 |
| DF-W500 | 500 | 450 | 268 | 100 | 80 | 3000 |
Features
1. Heavy Duty Durability
2. High energy absorption and low reaction force
3. Can perform even under rough conditions
4. Designed for extreme working conditions
5. Fits well onto vessel designs generally
Applications
● Tug Boats
● Work Boats
● Icebreakers
● Barges
● Supply Boats
● Corners of Wharf
● Bridge and Pile
FAQ
Q1. Are you manufacture or trade company?
A: We are manufacture.
Q2. What kind of payment do you accept?
A: Trade assurance, T/T, L/C, Weston Union are all accepted.
Q3. What is normal lead time?
A: Average 15-25days for tooling, bulk orders should be depends on quantity.
Q4. What is your standard package?
A: In general we use ziplock bag or bubble film plus cardboard boxes, wooden pallets or wooden cased will be used if necessary. Special packing method is available if needed.
Q5. What is the working life of the mould?
A: It depends on the parts we made. Besides, we will maintain or replace the mould by ourselves.
Q6. How many employees do you have?
A: We have 350 employees for factory, 45 employees for sales, 16 employees for technical support.
