8000rpm 7.1kw 125cc Dual Sport Motorcycles Splash 150 Hand Bar Protecter Disc Brake
Factory introduction
Dual Sport Motorcycle YBR125 Engine Hand Bar Protecter Disc Brake Yuasa Battery
Details:
| MAIN SPECIFICATION |
| Engine | |
| Engine Type: | Single cylinder,air-cooled,four stroke, |
| Displacement (ml): | 124 |
| Bore X Stroke(mm): | 54.0×54.0 |
| Compression Ratio: | 10:1 |
| Max. Power (kw/r/min) |
7.1kw(8000r/min) |
| Max. Torque (N.m/r/min): |
9.5N.m(6500r/min) |
| Max. Speed (Km/h): | ≥90 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: |
Electric/Kick Start |
| Transmission System: | Chain drive |
| The left and right steering angle | left 39º right 40º |
| CHASSIS | |
| Front Brake: | disc/drum brake |
| Rear Brake: | drum brcake |
| Front Tire: |
2.75-18 |
| Rear Tire: |
3.00-18 |
| Battery: | 12V/7AH |
| DIMENSIONS | |
| L X W X H (mm): |
2150×800×1080 |
| Seat Height (mm): | 775 |
| Wheelbase (mm): |
1290mm |
| Min. Ground Clearance(mm): | 160 |
| Max. Permissionable Weight (kg): | 165 |
| Rider Capacity: | 2 Person |
| Dry. Weigth (kg): | 118 |
| Engine Oil (L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): |
12 |
| Roll angle (°) | 10° |
Product description:
1. The new panel paint baking technology makes the whole Dual Sport Motorcycle body more shiny and dazzling.
2. YBR125 balance engine makes the riding more and more Smooth and comfortable.
3. Sport style hand bar and hand protecter makes Dual Sport Motorcycle more off road vision.
4. 2 year or 30000 Km quality guarantee demonstrates our confidence in our products and our commitment to our customers.
5. 96 units SKD packing and 170 sets CKD packing help customers save transportation costs and avoid damage during the transportation.
FAQ:
Q: What configurations are available?
A: MP3, USB, Remote Controller, Alarm.
Q: Can I set my own colors?
A: Customed color and sticker design is accepted.
Q: What are the engine displacements?
A: The engine displacement options are YBR125 or YBR150 or CG150.
Q: What other accessories are available?
A: Rear rack or Small rear carrier or Front bumper.
Q: What are the types of the light?
A: LED light and halogen lamp.
Q: What are the types of the odometer?
A: Digital Odometer and Mechanical Odometer.
Q: What are the types of brakes?
A: Front disc brake or drum brake.
Q: What are the forms of wheels?
A: Alloy wheel and spoke wheel.

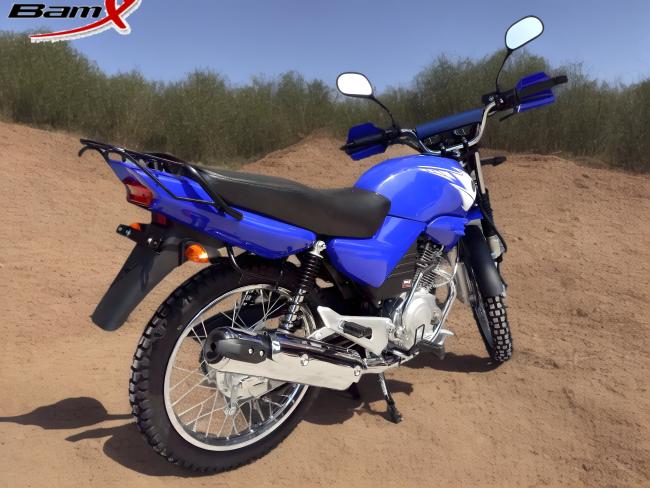

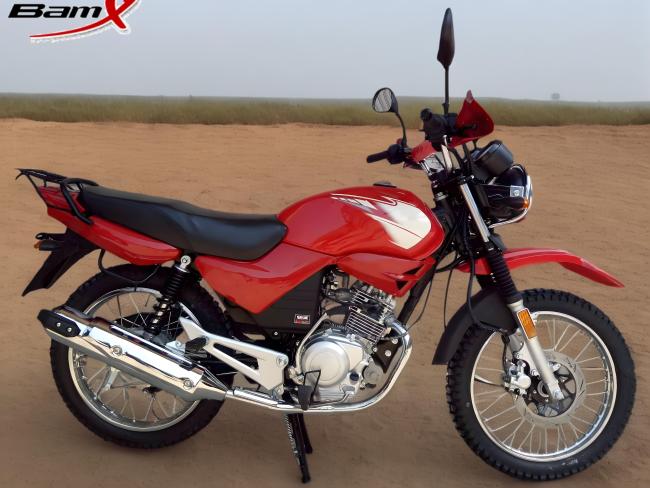

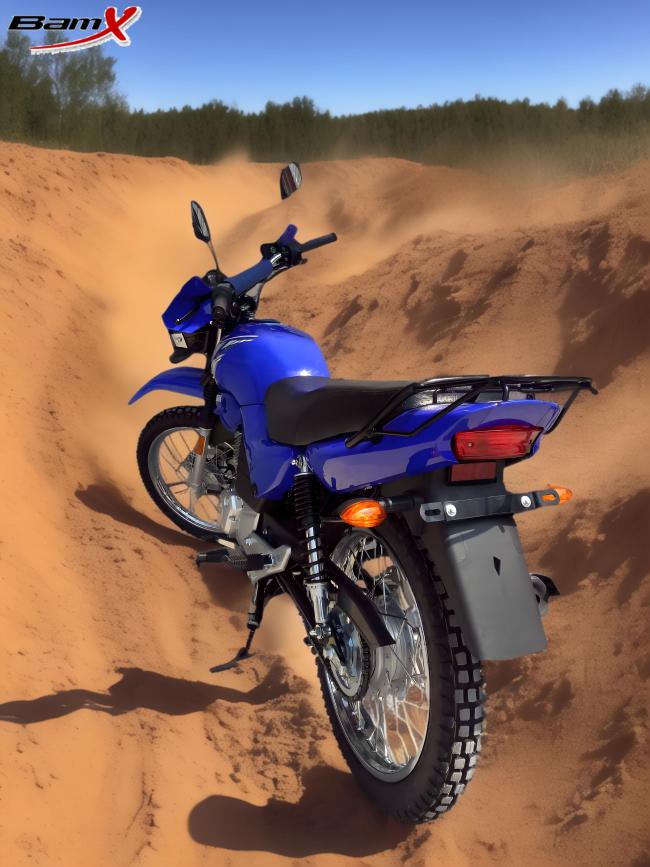

Product shows:
