125cc 9kw Gasoline Engines 7000rpm Single Cylinder Petrol
YX125M 125CC Gasoline Engine Auto Clutch Electric Start Air Cool
Details:
| Technical Parameter | |
| Engine Model | 1P52FMI |
| Engine Name | W125P |
| Engine Type | Single Cylinder, 4 Stroke, Air Cool, Horizontal |
| Displacement(ml) | 124.9 |
| Dimension(mm) | 460*300*260 |
| Net Weight(kg) | 21.5 |
| Max.Power(kw/rpm) | 6.5/7000 |
| Max. Torque(N.m/rpm) | 9.0/500 |
| Compression Ratio | 8.8:1 |
| Bore and Stroke(mm) | 52.4*57.9 |
| Ignition Type | CDI |
| Lubrication Type | Pressure Splash |
| Min. Fuel Consumption(g/kw.h) | ≤367 |
| Starting Type | Electric Start |
| Carburetor Model | PZ20 |
| Clutch Type | Multi Plate Oil Bath Type/Auto Clutch |
| Gearshift Type | 4 Gear |
Guarantee: 2 year or 30000 km
Delivery time: 30 Work days
Product description:
1. Start way: it can be started in any gear.
2. Piston: Lighten treating piston with anti-frication material, and with the thin piston ring, can decrease the power losing during the running, make the power output increasing and using life longer.
3. Acceleration: Processing the camshaft, piston, camshaft, clutch and magnetor with racrt tech, increasing the acceleration.
4. Magnetor: made of tombarthite material, can be with long time using life, without demagnetization.
5. Clutch: Clutch cushion made of anti-high-temperature rubber.
6. Start Shaft: Strength start shaft is making the using safer.
Options:
Kick starter/ Shift Padel/ Tail Cover/ Electric parts/ Intake Pipe/ Carburetor/ Standrad parts
Customed Brand Design Is Accepted

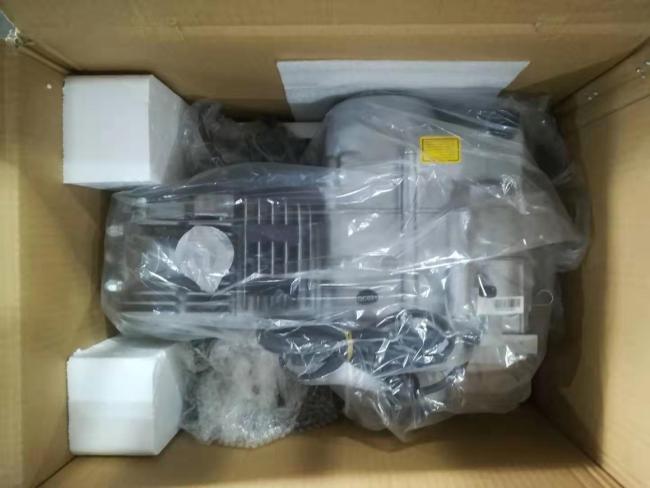

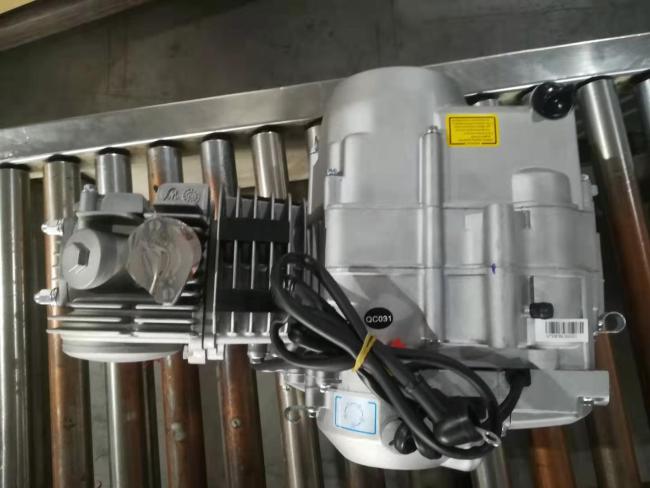

Product shows:
