Single Cylinder 110cc Enduro Dirt Bikes Automatic Clutch Pit
Factory introduction
UD110 110CC CUB Motorcycle 5-Bones Straight Wheel Drum Brake Halogen Lamps
Details:
| MAIN FUNCTIONS | |
| Size (LXWXH) :1900×680×1100mm | Displacement:106.7 |
| Wheelbase 1190mm | Compression Ratio:9:1 |
| Engine model: YX110 | Carburetor: Equal vacuum type |
| Ground Clearance: 130mm | Max power:5.1kw/8000r/min |
| Engine type: Single-cylinder Air-cooled, 4-stroke | Max. torque:7.2N•m(5000 r/min) |
| Fuel Capacity (l): 4.3L | Ignition: CDI |
| Wheels Front/rear: Spoke/Aluminum rim | Starter: Electric/kick |
| Types Front: 2.50-17L/175Kpa | Shift type: 1-N-2-3-4 |
| Types Rear: 2.75-17P/225Kpa | Drive Train: Chain |
| Suspensions Front/Rear:Telescopic, coil spring, oil damped / Swing arm type, coil spring, oil damped | Spark plug:A6RTC/CR6HSA |
| Brakes Front:Drum/Disk | Bore×Stroke: 52.4×49.5mm |
| Brakes Rear: Drum Brake | |
| Dry Weight: 95kg | |
| Max. loading: 150kg | |
| climbing ability: ≥16° | |
| Min fuel: 1.4L/100km | |
Product description:
1. Cub motorcycle manufacturing is our advantage compared with other factory, Technology R & D team with more than 10 years of experience for CUB motorcycle.
2. The new panel paint baking technology makes the whole CUB motorcycle body more shiny and dazzling.
3. ZS YB110 balance engine provides consistent and powerful and stable power output.
4. 2 year or 30000 Km quality guarantee demonstrates our confidence in our products and our commitment to our customers.
5. 96 units SKD packing and 170 sets CKD packing help customers save transportation costs and avoid damage during the transportation.
Options:
MP3, USB, Remote Controller, Alarm
Customed Color And Sticker Design Is Accepted
Engine: YX110/YB110/Z110/C110/YB115
Lagguge: Rear rack/ Small rear carrier / Tail box
Wheel: Alloy wheel/Spoke wheel
Brake: Front disc brake/drum brake

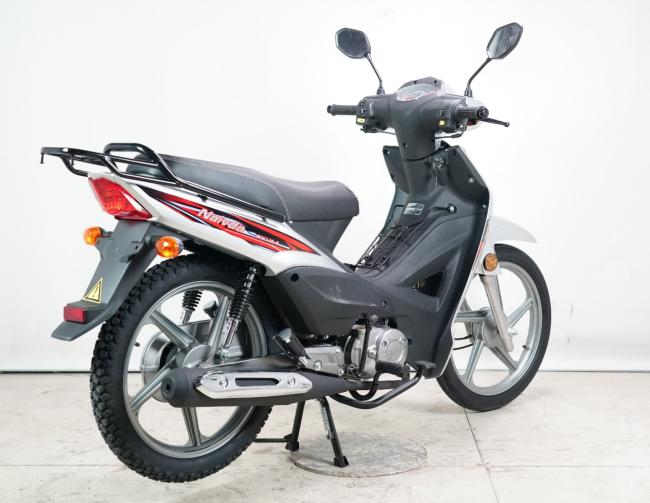

Product shows
