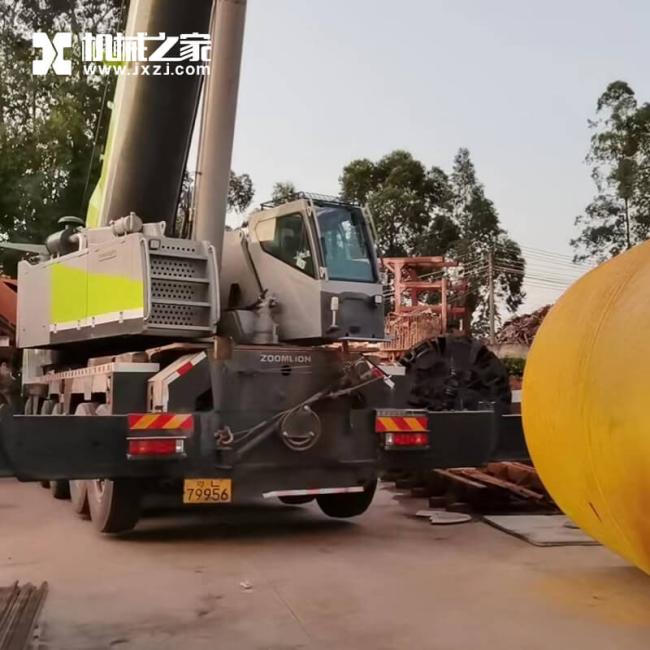

Used Zoomlion Truck Crane Zoomlion ZLJ5553JQZ130V Second Hand Truck Mobile Crane
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 Days
Brand:
Zoomlion
Product Description
Used Zoomlion Truck Crane Zoomlion ZTC1100V Second Hand Truck Mobile Crane
Production Details:
|
Model NO.
|
ZLJ5553JQZ130V |
Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
130000 kg | Max. Lifting Height of Jib | 73m |
|
Max Gradeability
|
45% | Working Diameter | 24m |
|
Transport Package
|
Complies with Min. export packaging requirements | Specification | 15680×3000×4000mm |
|
Driving mileage
|
3000kms | Working hours | 5000h |
|
Trademark
|
Zoomlion | Place of Origin | China |
- Zoomlion brand ZLJ5553JQZ130V all-terrain crane is a high-performance and high-reliability crane designed and developed by our company in order to meet the market demand, using the technology of designing and manufacturing mobile cranes for many years and combining with international advanced technology. This product is a high-tech product with a high concentration of electromechanical hydraulic systems.
- It will be active in various fields of my country's economic construction with its excellent handling performance, excellent fretting performance, huge lifting capacity and extraordinary lifting height. This product is suitable for lifting operations and installation projects in chemical, mining, oil fields, ports, construction sites and other places. This product is not suitable for areas with strong electromagnetic waves.
- This product is a full-slewing, telescopic boom type, electro-hydraulic proportional control all-terrain crane. It adopts the company's self-made full-drive five-axle special chassis, with a wide field of vision, luxurious and comfortable decoration, three-axle drive and three-axle steering.
- The latest electro-hydraulic proportional reversing valve with load feedback and multi-piston variable displacement pump is adopted, and the variable system combined with open type and closed type is adopted, so that the working ability of each actuator can be fully exerted. Double rocker operation can realize the main and auxiliary functions.
- The combined action of lifting, luffing, slewing, and telescopic mechanisms greatly improves the working efficiency of the crane. It has the characteristics of light and flexible operation, stable and reliable work, stepless speed regulation and so on. In the hydraulic system, there are safety devices such as relief valve, balance valve, hydraulic lock, brake valve, etc., to prevent the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe.
- Equipped with a variety of safety devices such as torque limiters and a complete lighting system, it can ensure safe and reliable operation and facilitate night work.
Product Parameters:
| Item | Value | Remarks | |
| Working performance | Max. rated gross lifting capacity (kg) | 130000 | 3m width |
| Max. load moment of the basic boom (kN.m) | 5115 | 6m width | |
| Max. load moment of max. length boom (kN.m) | 2112 | 28m width | |
| Max. lifting height of the basic boom (m) | 13.0 | ||
| Max. lifting height of main boom (m) | 74 |
Boom deformation is not considered
|
|
| Max. lifting height of jib (m) | 102.5 | ||
| Working speeds | Max. hoist rope speed (main winch) (m/min) | 135 | At 5th layer |
| Max. hoist ropes speed (auxiliary winch) (m/min) | 110 | At 3rd layer | |
| Boom derricking up time (s) | 65 | ||
| Boom telescoping out time (s) | 650 | ||
| Max. slewing speed (r/min) | 1.5 | ||
| Traveling parameters | Max. use altitude (m) | 2000 | |
| Max. traveling speed (km/h) | 75 | ||
| Max. gradeability (%) | 40 | ||
| Min. turning diameter (m) | 20 | ||
| Min. ground clearance (mm) | 305 | ||
| Limits for exhaust pollutants and smoke | Conform to related standards |
GB3847-2005 GB17691-2005(National Ⅴ) |
|
| Oil consumption per 100 km (L) | 76 | ||
| Weight parameters | Deadweight in traveling condition (kg) | 54900 | Driving state: without hook, counterweight, jib and goose head frame, main winch (including wire rope), auxiliary winch (including wire rope), movable outrigger (including oil cylinder). |
| Complete vehicle kerb mass (kg) | 54705 | ||
| Ⅰ, Ⅱ, Ⅲ axle load (kg) | 11700/11700/11700 | ||
| Ⅳ, Ⅴ axle load (kg) | 9900/9900 | ||
| Dimensions | Overall dimensions (L×W×H) (mm) | 15680×3000×4000 | |
| Longitudinal distance between outriggers (m) | 8.43 | ||
| Transversal distance between outriggers (m) |
7.8(full extension), 5.3(half extension) |
||
| Main boom length (m) | 13.7~73.5 | ||
| Main boom angle (°) | -0.5~82 | ||
| Jib length (m) | 10.4,17.5 | ||
| Jib + standard boom (m) | 25.5,33.5 | optional | |
| Offset (°) | 0 ,15,30 | ||
