Profile Sheet Cutting 600mm Heavy Duty Horizontal Band Saw Machine 45kw A-600TEC
A - 600TEC CNC High Speed Horizontal Band Saw Profile Sheet Cutting
Company Profile
Known as the precise sawing machine plan supplier, Heineda has develûped from traditional equipment, semi-autocontrol machinery to automatic digital control machinery and is possessed of above 100 types of self- -researched anddeveloped equipment. In the manufacturing of precise sawing machinery of aluminum, Heineda products have wonrecognition from a batch of aviation, military and civil equipment manufacturers in China mainland market.
Description

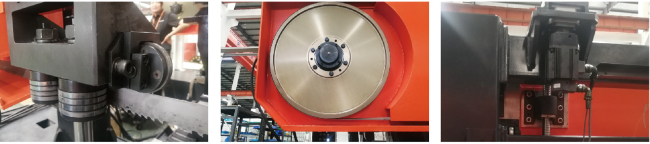

The band saw is mainly composed of a saw frame, a saw wheel, a transmission part, a saw belt guide wheel group, a waste conveyor, a hydraulic system, and an electric control system.It is suitable for sawing of profiles, pipes, plates and bars of aluminum, copper, plastic, composite materials, etc.
Technical specifications and parameters
| Model | CNC High Speed Horizontal Band Saw Machine |
| Maximum sawing ability: | Width 600mm, height 600mm |
| Motor | 45kw hydraulic motor:1.5kw |
| Saw Belt Speed | 200/2000m/min stepless adjustable |
| Saw Band Size | 8875L*34W*1.1T |
| Saw belt tensioning method | Independent Hydraulic Tensioning/Relaxation |
| Feed Way | Hydraulic drive, speed infinitely adjustable |
| Automatic feeding | Automatic cut to length , a single feed of 700mm |
| Chip removal way | 15HP pulsed filter core collector |
Features
- The structural parts including saw bow and base are all integrally processed by the processing center so as to ensure long—term and stable operation of the machine.
- Adopt quasi-dry micro—lubrication cooling system to ensure the normal operation of sawing.
- Hydraulic tensioning saw belt with break protection function.
- Feed clamps are movable clamps and micro—clamps to ensure smooth material transport.
- Specially designed saw belt clamping guide mechanism ensures geometric accuracy while maximizing saw strap life.
- A single feed stroke of 700mm, can be fed back and forth multiple times
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
