DN50 Forged Steel Ball Valve Fire Resistant Construction Black Ball Valve
American Standard Forged Ball Valve Fire Resistant Construction
Q41F forged steel ball valve adopts standard
1. Design and manufacturing according to API6D;
2, the structure length according to ANSIBI6.10;
3. Connection flange: ANSIBI6.5MSS-SP44;
4, valve inspection and test according to APISTD.598;
5. Socket and socket end comply with ASMEB16.11;
6. Threaded connection end (NPT) conforms to ANSI/ASMEB1.20.1
Forged ball valves work by rotating the stem to release or block the valve. It has full-diameter ball valve, 90° Angle, ball valve switch light, small but large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and the sphere is often closed. Forged steel ball valves are primarily used to cut or connect medium in pipes and can also be used to regulate and control fluids.
Forged steel ball valves have a removable metal-seated construction, pre-loaded plate springs, and a proper sealing force design, flexible opening and closing, and a highly reliable seal. Forged steel ball valves can be designed to contain solid particles, mud, and other media or to withstand high temperature structures according to customer requirements. Forged steel ball valves have underside hood and reverse seal construction to ensure packing seal. Pressure: 1.6-MPa-32.0MPa
Q41F Forged steel ball valve Product Description:
Q41F forged steel ball valve
| Specifications | Q41F-DN50-150LB | connection form | flange |
| applicable | medium steam | structure | floating ball valve |
| environment | high pressure | scale diameter | 15-450(mm) |
| Operating temperature |
high temperature | use | cut-off |
| GB/US | US standard | Type (channel position) |
Direct flow |
| direction | bidirectional | action object | Water |
| drive mode | manual turbine pneumatic electric |
parts and accessories | sphere |

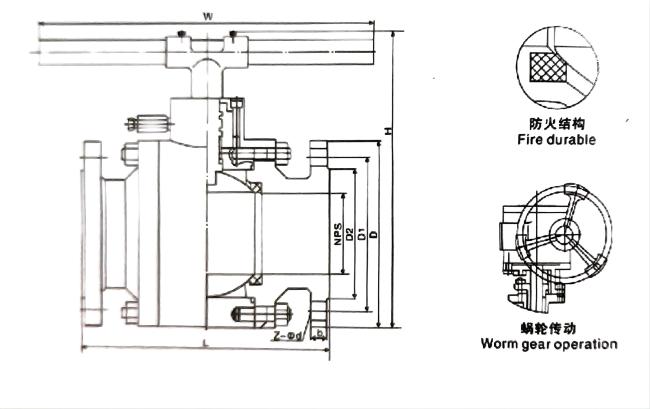

Main External and Connection Dimension unit:mm
| product model Type |
NPS | DN | Class 150Lb | 约置 (kg) |
|||||||
| in | mm | L | D | D₁ | D2 | b | Z-φd | H | W | ||
| CQ41F-150Lb CQ41F-150LbP CQ341F-150Lb CQ341F-150LbP CQ641F-150Lb CQ641F-150LbP CO9B41F-150Lb CQ9B41F-150LbP |
1/2 | 15 | 108 | 89 | 60.3 | 34.9 | 11.2 | 4-φ15.8 | 59 | 130 | 2.3 |
| 3/4° | 20 | 117 | 98 | 69.8 | 42.9 | 12.7 | 4-φ15.8 | 63 | 130 | 3.0 | |
| 1° | 25 | 127 | 108 | 79.4 | 50.8 | 14.3 | 4-φ15.8 | 75 | 160 | 4.5 | |
| 1/4 | 32 | 140 | 117 | 88.9 | 63.58 | 15.7 | 4-φ15.8 | 95 | 160 | 7.0 | |
| 1/2 | 40 | 165 | 127 | 98.4 | 73 | 17.5 | 4-φ15.8 | 107 | 160 | 9.5 | |
| 2 | 50 | 178 | 152 | 120.6 | 92.1 | 19.1 | 4-φ19 | 155 | 200 | 28 | |
| 2/2 | 65 | 191 | 178 | 139.7 | 104.8 | 22.36 | 4-φ19 | 164 | 200 | 39 | |
| 3″ | 80 | 203 | 190 | 152.4 | 127 | 23.9 | 4-φ19 | 182 | 200 | 50 | |
| 4° | 100 | 229 | 229 | 190.5 | 157.2 | 23.9 | 8-φ19 | 226 | 300 | 70 | |
| 5° | 125 | 355 | 229 | 215.9 | 185.7 | 23.9 | 8-φ22.2 | 230 | 300 | 150 | |
| 6° | 160 | 394 | 279 | 241.3 | 215.9 | 25.4 | 8-φ22.2 | 250 | 500 | 210 | |
| 8° | 200 | 457 | 343 | 298.4 | 269.9 | 28.5 | 8-φ22.2 | 280 | 500 | 280 | |
| 10° | 250 | 533 | 406 | 362 | 323.8 | 30.2 | 12-φ25.4 | 320 | 600 | 400 | |
The Q41F forged steel ball valve is mainly used for long distance pipeline transportation of oil and gas and urban gas pipeline systems. Due to the special performance of long distance pipeline valves, the pipeline's ability to withstand pressure, safety, weather resistance and long-term reliability has been considered in the design. Sealing and structural design are special techniques. Operating modes include manual worm and worm gear worm drive, pneumatic, electrical, pneumatic/hydraulic linkage, electrical/hydraulic linkage and various special control modes.
