Copper Fire Valve Double Acting Protective Grooved Gate Valve DN50

Copper Double Acting Z85T Grooved Protective Gate Valve

 I. Overview

    Groove gate valve traditional gate valve often in the water after washing the pipe with foreign objects such as stones, wood, bricks, cement and a variety of debris silted in the bottom groove of the valve, easy to cause the closure is not strict, resulting in water leakage, grooved soft seal gate valve bottom using the same flat bottom design of water pipe, not easy to cause debris siltation, so that the fluid is unobstructed.

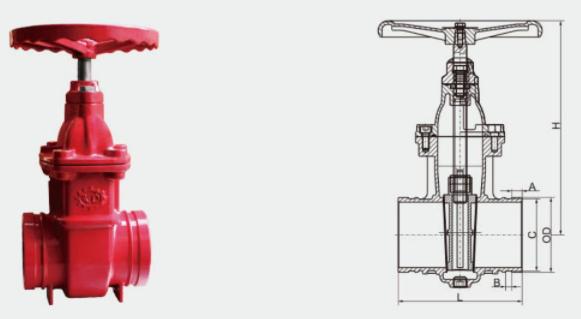

2.Main overall dimensions

 3. Use and maintenance

    Fire gate valves are often used in automatic sprinkler fire pipeline systems, rotating handwheels to control the opening and closing of water sources in water supply pipelines.

4. Installation:

(1) Handwheels, handles and transmission mechanisms are not allowed to be used for lifting, and collisions are strictly prohibited.

(2) Before installation, check whether the product model, tag and specification are consistent, and check whether the parts of the whole machine are defective and loose.

(3) Before installation, the pipeline should be cleaned, and there should be enough straight pipe section at the valve inlet, and equipped with a filter.

(4) The installation site should consider the comprehensive personnel and equipment, even if it is operated, it is conducive to disassembly and maintenance.

(5) The signal box is connected to the fire protection system circuit.
