High Temperature Forged Steel Globe Valve Power Station Shut Off Valve
Through J961H/Y-100 High Temperature And High Pressure Power Station Shut-Off Valve
Product Features:
1. Fire prevention and fire resistance: the main components are made of copper alloy, which is a non-combustible material. Even if the collision with solid particles in the high-speed air flow will not produce sparks. Therefore, the valve has a good fire resistance performance.
2. safe and reliable: the valve with dust-proof, waterproof, anti-oil device, all the oxygen contact valve parts before assembly are strictly degrease and oil ban measures, packing material is PTFE, can ensure the use of safe and reliable.
Product Introduction

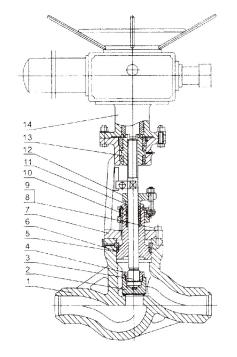

Product structure reference drawing
Working principle:
Oxygen special globe valve is made of excellent silicon brass or stainless steel casting, with high mechanical strength, wear resistance, good safety and so on. Oil prohibition treatment is used in the oxygen pipe, with good explosion-proof and flame retardant performance, eliminate the unsafe factors on the oxygen pipe.
Main shape and connection dimensions uint:mm
| Product Model | Nominal Pressure | Test Pressure | Work Pressure | Operating Temperature | Applicable Media | |||
| Shell Strength | Seal | P54 | P55 | P57 | ||||
| J(9)61H/Y-100 | 10.0 | 15 | 11 | / | / | / | ≤450 | Water, steam, oil |
| J(9)61H/Y-200 | 20.0 | 30 | 22 | / | / | / | ||
| J(9)61H/Y-250 | 25.0 | 38 | 28 | / | / | / | ||
| J(9)61H/Y-320 | 32.0 | 48 | 36 | / | / | / | ||
| J(9)6Y-P54/100V | / | 30 | 22 | 10 | / | / | ≤540 | steam |
| J(9)6Y-P54/140V | / | 38 | 28 | 14 | / | / | ||
| J(9)6Y-P54/170V | / | 48 | 36 | 17 | / | / | ||
| J(9)6Y-P55/100V | / | 38 | 28 | / | 10 | / | ≤550 | |
| J(9)6Y-P55/140V | / | 48 | 36 | / | 14 | / | ||
| J(9)6Y-P55/170V | / | 53 | 39 | / | 17 | / | ||
| J(9)6Y-P57/100V | / | 48 | 36 | / | / | 10 | ≤570 | |
| J(9)6Y-P57/140V | / | 55 | 40 | / | / | 14 | ||
| J(9)6Y-P57/170V | / | 60 | 44 | / | / | 17 | ||
