Manufacturer High Driveway Tunnel Lighting Led Flood Light 600w 500w 400w 300W 200W 100w
Descriptions of Dimmable Tunnel Light:

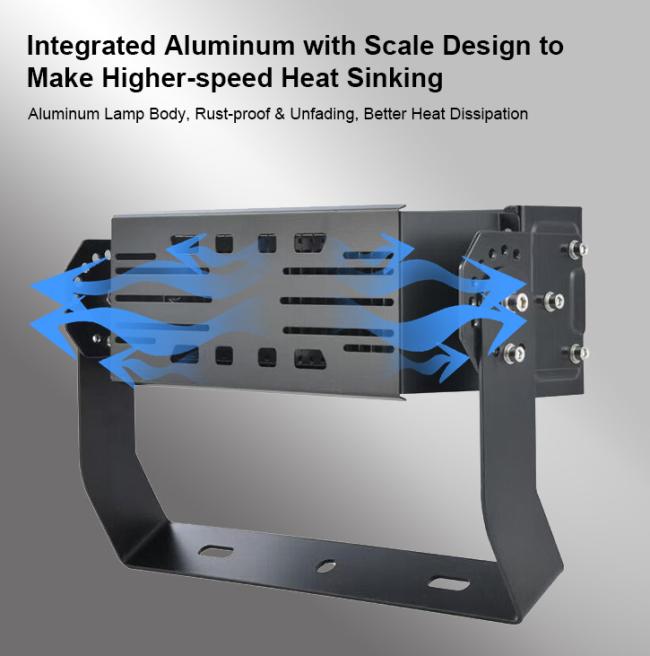

The LED tunnel light is adopted the integrated die-casting aluminum with high density, large heat dissipation area, and good thermal conductivity. The PC cover gets better light transmission, lame retardant and wear-resistant, strong oxidation resistance. The LEDs is made by single module, and each module is 100W. It can make 100w, 200w, 300w, 400w, 500w, and 600w. The Modules can be freely adjusted, so the installation is flexible and the bracket can be also adjusted as requested.
Product Features of Dimmable Tunnel Light:

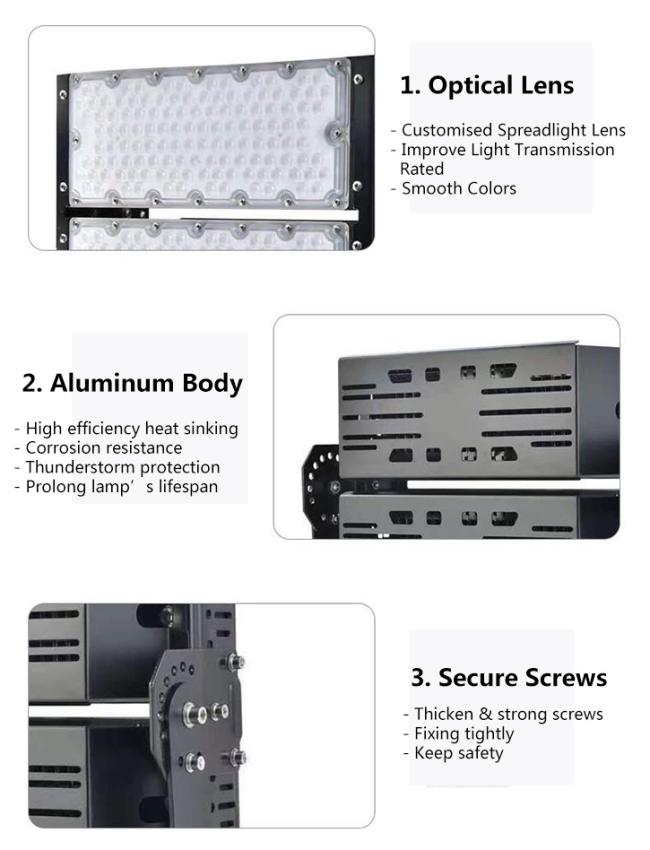

► Adopting high-density durable and sturdy die-cast aluminium, strong structure, nice and stable performance as well as good heat dissipation.
► High efficiency / MeanWell brand driver available.
► High quality Lumileds / Cree / Leds to 120-150lm/W.
Specifications of Dimmable Tunnel Light:
| Product Name | Dimmable LED Tunnel Lights | ||
| SKU | SU-QP200 | SU-QP300 | SU-QP400 |

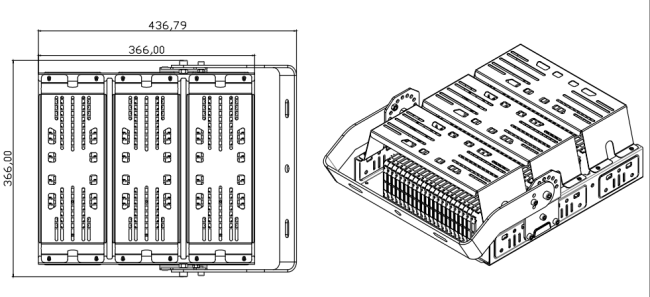

| Product Dimension (mm) | 366x311x142 | 366x436x142 | 366x561x142MM |
| Packing Size (mm) | 375x345x20mm | 470x375x200mm | 590x375x200mm |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Wattages | 200W | 300W | 400W |
| Lumen Flux | 24000lm | 36000lm | 48000lm |
| Light Source | SMD 3030 LED chips | ||
| Light Efficiency | 120-150lm/W | ||
| CCT | 2700, 3000k, 4500k, 6000k, 6500k (customised) | ||
| Body Material | Die-cast Aluminum | ||
| Cover | PC with lens | ||
| CRI | >70 | ||
| PF | >0.9 | ||
| Surge Protection | 6KV | ||
| Driver Mode | Constant current driver | ||
| Beam Angle | 20°, 40°, 60°, 90°, 140x100° (optional) | ||
| Work Temperature | -40 ~ +50 Deg | ||

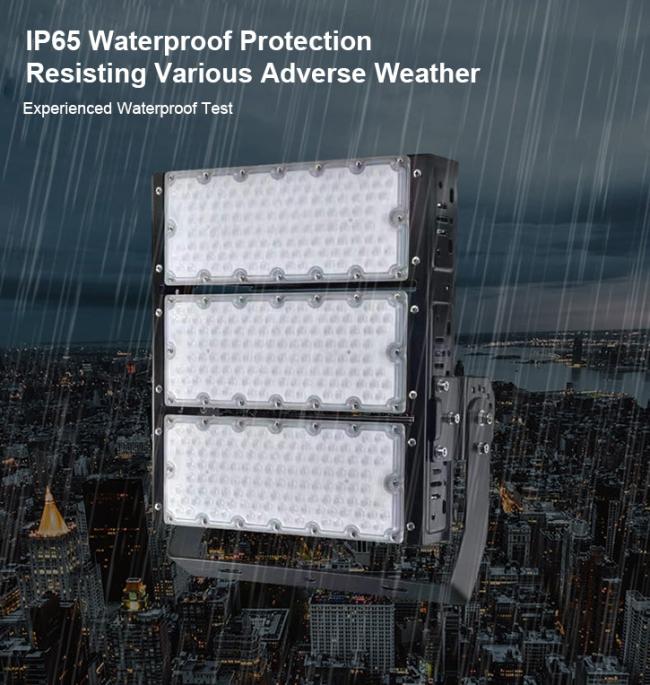

| Protection Class | IK07 / IP65 | ||
| Warranty | 5 Years | ||
| Control Mode | 0-10V / Dali / RGBW | ||




- We can provide all data of the products you have ordered.
- We can customize different color temperature for the flood lights.
- We can design stickers of the flood lights for you.
- We can adjust creative structure of the flood lights you are asking.
- We accept logo, image, package customization.
- We can provide laser marking for the flood lights, and no MOQ.
- OEM, ODM welcome.
