Food Fruit And Vegetable Vacuum Pump Freeze Dryer Lyophilizer Customised
Customised Food Fruit and Vegetable Vacuum Pump Freeze Dryer Lyophilizer Price
Product Description
The Customised Food Fruit and Vegetable Vacuum Pump Freeze Dryer Lyophilizer Price is composed of a refrigeration system, a vacuum system, a heating system, and an electrical instrument control system. Its working principle is to freeze the item to be dried to below the triple point temperature, and then directly sublimate the solid water (ice) in the item into water vapor under vacuum conditions, and then remove it from the item to make the item dry.
Product Features
The vacuum freeze-drying equipment produced by our company saves energy, is simple and convenient to operate, is energy-saving and environmentally friendly, and evenly processes materials, and can obtain high-quality freeze-dried products, which has huge advantages in the market.
Flow Chart
Product Application
♦ Vegetables: Edible mushrooms, garlic slices, scallions, green beans, peas, cucumbers, sweet corn kernels, carrots, spinach, asparagus, wild vegetables, etc.
♦ Aquatic products and meat: shellfish, shrimp, fish sticks, beef, pork, chicken, mutton and so on.
♦ Seasoning: garlic powder, ginger powder, onion powder, tomatoes, pepper.
♦ Instant drinks: coffee, tea, soup, soy milk, milk, etc.
♦ Convenience food: children's food, snack food, military camp food.
♦ Fresh Chinese herbal medicine: ginseng, antler, medlar, notoginseng, etc.
Technical Specifications
| Model | NT-F5M | NT-F10M | NT-F20M | NT-F30M |
| Control Type | PLC+ human-computer interface | PLC+ human-computer interface | PLC+ human-computer interface | PLC+ human-computer interface |
| Working | Quick freezing | Quick freezing | Quick freezing | Quick freezing |
| Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Drying area (m²) | 5 | 10 | 20 | 30 |
| Loading capacity(kg) | 50 | 100 | 200 | 300 |
| External dimensions(m) | 3.8x1.2x1.9 | 5.8x1.7x2 | 7x1.7x2 | 9x1.7x2 |
| Tray quantity | 16 | 24 | 48 | 72 |
| Shelf temperature(℃) | -55~120 | -55~120 | -55~120 | -55~120 |
| Shelf medium | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil |
| Prefreeze temperature(℃) | -30~-60 | -30~-60 | -30~-60 | -30~-60 |
| Cold trap temperature(℃) | -50~-80 | -50~-80 | -50~-80 | -50~-80 |
| Vacuum pump | Rotary vane pump | Rotary vane pump | Combined pump set | Combined pump set |
| Working vacuum | ≤130Pa | ≤130Pa | ≤130Pa | ≤130Pa |
| Defrosting mode | Hot water spray | Hot water spray | Hot water spray | Hot water spray |
| Cooling Power(kw) | 9 | 18 | 25 | 34 |
| Heating Power(kw) | 6 | 12 | 24 | 36 |
| Total Power(kw) | 18 | 34 | 56 | 83 |
| Working Temperature | ≤40℃ | ≤40℃ | ≤40℃ | ≤40℃ |
About Us

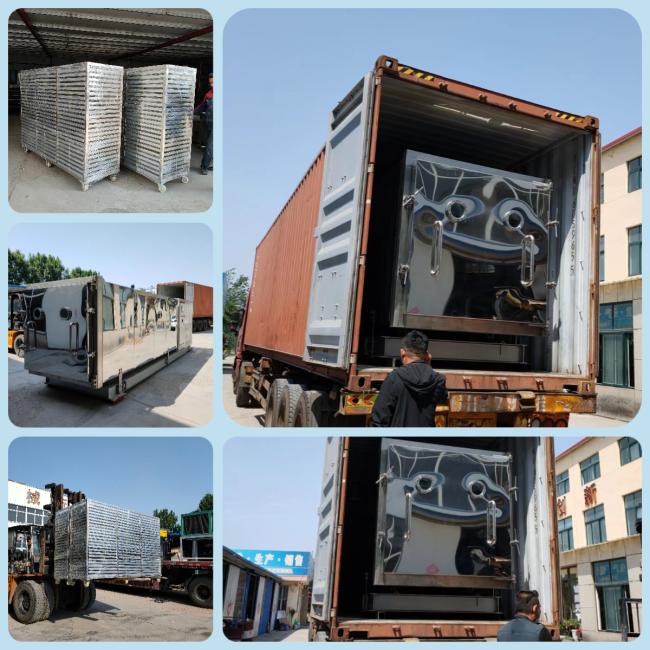

Packing and Shipping
1. Plastic film as inner packaging.
2. Formal export packaging or packaging according to customer requirements.
Choose the best shipping method according to the actual situation or customer requirements.
FAQ
Q: Can you supply OEM or ODM?
A: Of course we can supply it. We are manufacturer, we can manufacture the equipments according to your exactly requirements.
Q: How long is your warranty period?
A: One year after commissioning is completed.
Q: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union, ect.
Q: Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q: Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
