Multifunction Food Medicine Meat Vacuum Freeze Dryer Low Energy Consumption
Low Energy Consumption Multifunction Industrial Food Medicine Meat Vacuum Freeze Dryer
Production Introduction
The Low Energy Consumption Multifunction Industrial Food Medicine Meat Vacuum Freeze Dryer is composed of refrigeration system, vacuum system, heating system, electrical instrument control system and so on. The main components are drying oven, steam trap (cold trap), refrigeration unit, vacuum pump, heating/cooling device, etc. The item to be dried is first frozen to a temperature below the triple point, and then the solid water (ice) in the item is frozen under vacuum. It then sublimates to water vapor, which is removed from the product to dry it. After pretreatment, the materials are sent to the quick-freezing warehouse for freezing, then sent to the drying warehouse for sublimation and dehydration, and finally enter the post-processing workshop for packaging.
Product Features
1. Energy saving and high efficiency.
2. Simple and convenient operation.
3. The product processing effect is good.
Brief description of freeze-drying process
Raw material prepared - Loading and conveying - Freezing- Delivering to Storehouse - Vacuum Drying - Discharging - Paking
Product Details
Technical Specifications
| Model | NT-Y50M | NT-Y100M | NT-Y200M |
| Control Type | PLC+ human-computer interface | PLC+ human-computer interface | PLC+ human-computer interface |
| Working | Freeze Drying | Freeze Drying | Freeze Drying |
| Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Drying area (m²) | 75 | 100 | 200 |
| Loading capacity(kg) | 500 | 1000 | 2000 |
| External dimensions(m) | dia.2.2 | dia.2.5 | dia.2.5 |
| Shell thickness(mm) | 8 | 10 | 10 |
| Shelf temperature(℃) | 0~120 | 0~120 | 0~120 |
| Shelf medium | Pure water | Pure water | Pure water |
| Cold trap temperature(℃) | -50~-80 | -50~-80 | -50~-80 |
| Vacuum pump | Combined pump set | Combined pump set | Combined pump set |
| Working vacuum | ≤130Pa | ≤130Pa | ≤130Pa |
| Defrosting mode | Hot water spray | Hot water spray | Hot water spray |
| Cooling water consumption(m3/h) | 6.5 | 13 | 25 |
| Cold Trap Capability (kg/bin) | >500 | >1000 | >2000 |
| Power rating(kw) | 30/90 | 60/180 | 120/360 |
| Steam consumption(kg/h) (Pressure 0.6mpa) | 150 | 300 | 600 |
| Working Temperature | ≤40℃ | ≤40℃ | ≤40℃ |
About Us

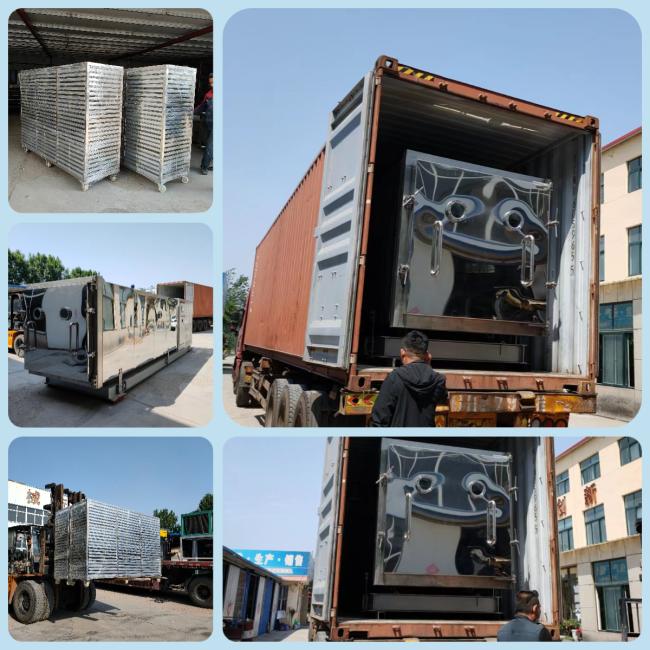

Packing and Shipping
Inner Packaging: plastic film
Outer Packaging: wooden box
Choose the best shipping method according to the actual situation or customer requirements.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are manufacturer and have many years experience in this industry.
Q: Can I visit your factory?
A: Of course. Many domestic and foreign customers visit our factory every year.
Q: How can I get to your company?
A: Great, you can visit our factory, welcome! You can take a flight to Jinan Airport. We are happy to arrange a car to pick you up!
Q: If we want to buy the machine, what's the payment terms?
A: T/T 30% down payment, then the balance should be paid before shipment.
Q: How long is your guarantee?
A: One year. If you have any questions, you are welcome to contact us, we will surely provide you with support when needed.
