HD LCD Video Wall 46" 49" 55 inch Seamless 3.5mm Bezel Less 2x3 3x3 Splicing Screen Commercial Advertising Display Video Wall
55 Inch Indoor Full Hd Wifi Lcd Video Wall
|
Model
|
55 inch 3.5mm Video wall screen specification
|
|
Contrast
|
3000:1
|
|
Display color
|
16.7M
|
|
Response time
|
8ms
|
|
Viewing angle
|
89/89/89/89(Typ)
|
|
working frequency
|
60HZ
|
|
Stitching
|
3.5mm
|
|

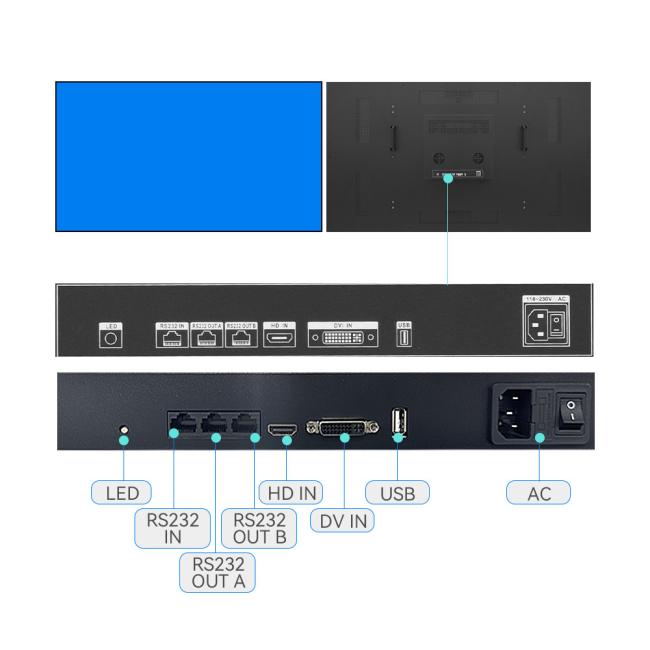

USB input
|
(usb * 1) can be upgraded to support video picture media playback
|
|
HDTV input
|
(HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible
with 4k, customization required
|
|
VGA input
|
(vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
|
|
DVI input
|
(dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
4k needs customization
|
|
BNC input
|
(bnc * 1) Support ntsc pal and other formats
|
|
Remote Receive Input
|
(debug * 1) Remote control signal transmission
|
|
RJ45 input
|
(rj45 * 1) rs232 signal input
|
|
RJ45 output
|
(rj45 * 2) rs232 signal output
|
|
BNC output
|
(bnc * 1) Support ntsc pal and other formats
|
|
Show diagonal
|
AC220V 50/60Hz
|
|
Dimensions
|
<=240W
|
|
Display area
|
3W
|
|
Zoom
|
0～50℃
|
|
Panel type
|
-20～65℃
|
|
Resolution
|
Simplified Chinese, Traditional Chinese, English and other languages
|
|
Dot Pitch
|
18KG
|
|
brightness
|
Wall-mounted, embedded, floor-standing, front maintenance, cabinet
|
|
Model
|
55 inch 1.8mm Video Wall Screen Specification
|
|
Show diagonal
|
55 "
|
|
Outline size
|
1211.54(W)*682.34(H)*118.2(D)mm
|
|
Display area
|
1209.6(W)*680.4(H)mm
|
|
display scale
|
LED backlight
|
|
Resolving power
|
1920(RGB)X1080,FHD
|
|
Point spacing
|
0.210(H)*0.630(V)
|
|
brightness
|
500CD/M
|
|
contrast ratio
|
4000:1
|
|
Display color
|
16.7M
|
|
response time
|
8ms
|
|
viewing angle
|
89/89/89/89(Typ)
|
|
working frequency
|
60HZ
|
|
Splicing joint
|
1.7mm
|
|
USB input
|
(USB * 1) upgradeable video picture media playback
|
|
HDTV input
|
(HDTV * 1) support 1920 * 1080 @ 60Hz signal input, downward
compatible 4K, customized
|
|
VGA input
|
(VGA * 1) support 1920 * 1080 @ 60Hz signal input and downward
compatibility
|
|
DVI input
|
(DVI * 1) support 1920 * 1080 @ 60Hz signal input and downward
compatibility 4K needs customization
|
|
BNC input
|
(BNC * 1) support NTSC pal and other systems
|
Remote control
receiving input
|
(debug * 1) remote control signal transmission
|
|
RJ45 input
|
(RJ45 * 1) RS232 signal input
|
|
RJ45 output
|
(RJ45 * 2) RS232 signal output
|
|
BNC output
|
(BNC * 1) support NTSC pal and other systems
|
|
working voltage
|
AC220V 50/60Hz
|
Product power
consumption
|
Less than 240W
|
|
standby power
|
3W
|
|
working temperature
|
0~ 50 C
|
|
Storage temperature
|
-20~ 65 C
|
|
Menu language
|
Simplified Chinese, traditional Chinese, English and other multi-national
languages
|
|

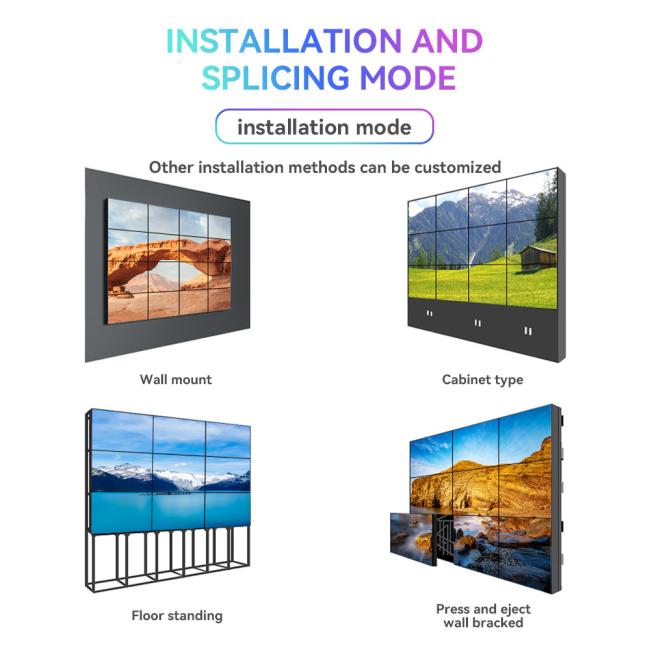

Installation mode
|
Wall mounted, embedded, floor standing, front maintenance, cabinet
|
|
Model
|
49 inch 3.5MM splicing unit specifications
|
|
Diagonal display
|
49 "
|
|
Display area
|
1073.8 (W) *604.0(H)mm
|
|
Zoom
|
led Backlight
|
|
Panel Type
|
LED backlight
|
|
Resolution
|
1920(RGB)X1080, FHD
|
|
Spacing
|
0.1864 (H) * 0.5593 (V)
|
|
brightness
|
450CD / M²
|
|
Contrast
|
1300: 1
|
|
Color display
|
16.7M
|
|
response time
|
8ms
|
|
Viewing angle
|
89/89/89/89(Typ)
|
|
working frequency
|
60HZ
|
|
Patchwork stitching
|
3.5mm
|
|
USB input
|
(USB * 1) can be upgraded media player supports video pictures
|
|
HDTV input
|
(HDTV * 1) * Support 1920 1080 @ 60HZ signal input is backward
compatible with 4K be customized
|
|
VGA Entry
|
(VGA * 1) * Support 1920 1080 @ 60HZ signal inputs can be
backward compatible
|
|
DVI Entry
|
(DVI * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward
compatible 4K be customized
|
|
BNC Entry
|
(BNC * 1)And other standard support NTSC PAL
|
|
Remote control receiver input
|
(DEBUG * 1) the remote control signal transmission
|
|
RJ45 input
|
(RJ45 * 1) RS232 input signal
|
|
RJ45 output
|
(RJ45 * 2) RS232 signal output
|
|
BNC output
|
(BNC * 1)And other standard support NTSC PAL
|
|
Operating Voltage
|
AC220V 50 / 60Hz
|
|
Power consumption
|
≤240W
|
|
Standby power consumption
|
3W
|
|
Operating temperature
|
0~ 50 C
|
|
storage temperature
|
-20~ 65 C
|
|
Menu language
|
Simplified Chinese, Traditional Chinese, English and other languages
|
|
Installation mode
|
Wall-mounted, embedded, floor, before the maintenance, cabinet
|
Feture:
Resolution: 1920 x 1080 /3840 x 2160
High display resolution, and delicate image with rich color;
High definition, high brightness, high color gamut DID LCD screen with 178° wide angle.
Large display area with light weight Longer display lifespan
Multiple jointing methods, applicable for various scenes.
Stable running and low maintenance cost, support 24 hours continuous wokring.
Metal case enhances the function of anti-radiation, anti-magnetic filed and strong electric field interference.
Working humidity: 10% ~ 90%, able to work under harsh envionment.
LED direct-lit backlight with uniform brightness and no boundary shadow.
