KE-3010A Automatic Pick And Place Machine JUKI Chip Mounter

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5 weeks

Brand: JUKI

Product Description

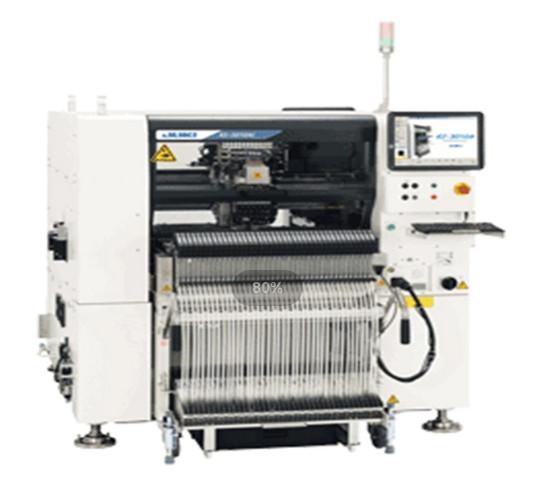

JUKI Pick and place machine KE-3010A

Product description:

JUKI KE-3010A Smt Line Chip Pcb Mounter Machine. Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

Feature & parameter:

1. Single Gantry; 1 Head Per Gantry

Ideal for high-mix, high-changeover environments.

2. 6 Nozzles per Gantry

(plus IC head on 3020V)

Can place 6 components simultaneously and center on the fly.

3. High Accuracy Low Noise Ball Screw

Drive with Linear Encoders

High Accuracy Laser

4. Align Component Centering

Select centering method based on component type, shape, size and material.

BOARD SIZE

COMPONENT SPECS

FEEDER INPUTS

PLACEMENT SPECS

Longer sized PWB in X axis(option)

Component Height:
6/12/20/25mm

Max.160 in case of 8mm tape
(on a Electric double tape feeder)

The use of electronic double
tape feeders enables mounting
of a maximum of 160 component types.

Placement Speed

• IC: 9,000CPH
(Vision centering/MNVC option)

• CHIP: 23,500CPH
(Laser centering)

• CHIP: 18,500CPH
(Laser centering / IPC9850)

Component Size:

• Laser Recognition:
01005 (0402 metric)～33.5mm

• Vision Recognition:
Standard Camera 3mm～33.5mm
High-Resolution Camera 1.0x0.5mm～20mm

Placement Accuracy:

• Laser Align: ±0.05mm(Cpk≧1)

• Vision: ±0.04mm

FAQ

Q: What we can do for you?

A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?

A: OEM & ODM service are available.

Q: What is your delivery date?

A: The delivery date is about 35 days after receipt of payment.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.

Q: Why choose us?

A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.

Global Service:

For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

5. We Can Solve Any Question About SMT
