Stainless Steel Stencil Printer Machine Automatic Arch Bridge Type

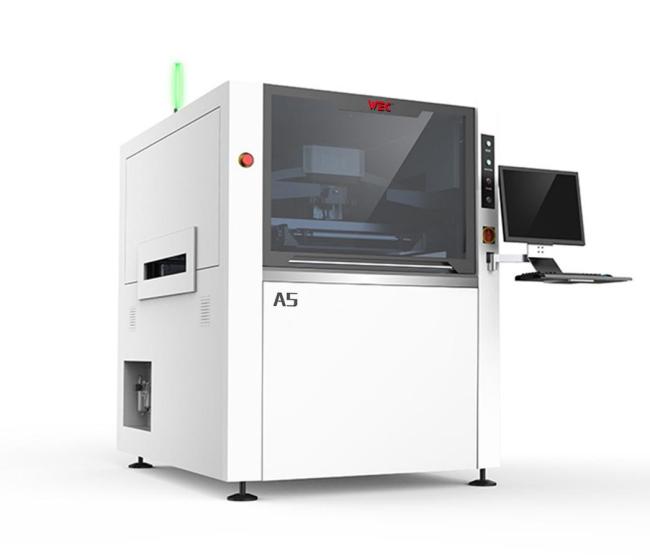

WA5 Automatic Printer
Main Function Of Automatic Printer:
- Arch bridge type suspending direct-connected scraper.Print head with the programmable and suspending self-adjusting stepper motor drive.Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth.Unique belt transmission system avoids being stuck or fall-off of PCB.
- Programmable motor controls transport speed and puts PCB in the precise position.The unit to clean is separated from CCD camera, which can minimize the load of motor and impulse, improve the positioning precision and speed and extend the service life.With Stepper motor and lead screw, the direct connection UVW platform is featured with high precision, high rigidity and compact structure.
Main Specification Of Automatic Printer:
| Machine size | 1215mm(L) x 1410mm(W) x 1550(H)mm |
| PCB size | 50*50～400*340mm |
| PCB Thickness | 0.4 - 6mm |
| PCB Warpage | <1% |
| Transport Height | 900±40mm |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right |
| Transport Speed | Max 1500mm/s(Programmable) |
| Support System | Magnetic Pin/Up-down table adjusted /support block |
| Clamping System | Side clamping,vacuum nozzle,Automation retractable Z pressure |
| Printer Head | Two independent motorised printhead |
| Squeegee Speed | 6~200mm/sec |
| Squeegee Pressure | 0~15kg |
| Squeegee Angel | 60°/55°/45° |
| Squeegee Type | Stainless steel(standard),plastic |
| Stencil Separation Speed | 0.1~20mm/sec (Programmable) |
| Cleaning System | Dry ,Wet,Vacuum (Programmable) |
| Table Adjustment Ranges | X:10mm;Y:10mm;θ:2° |
| Solder Paste Inspection | 2D Inspection(Standard) |
| Repeate Position Accuracy | 0.01mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time | <7s(Exclude Printing & Cleaning) |
| Air Required | 4.5~6kg/cm2 |
| Power Input | AC:22010%,50/60HZ,3KW |
| Control Method | PC Control |
| Machine Weight | Approx:1000kg |
| Product Changeover | <5Min |
