4 Gantries SIEMENS Pick And Place Machine Equipment SIPLACE D4

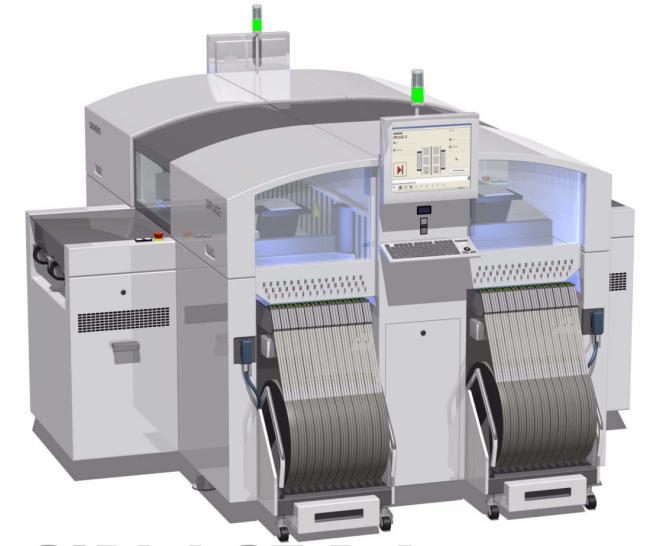

SIEMENS Pick and Place machine SIPLACE D4
Product Description:
SIPLACE D4 equipped with four cantilevers and four 12 nozzle collecting and mounting heads, it can not only achieve an accuracy of 50 μ m,but also mount the components of 01005 High performance, high precision and excellent flexibility make SIPLACE D4 a high-speed mounter.
Equipment Parameter:
| Types of placement head | 12-nozzle Collect & Place head (C&P12) |
| Number of gantries | 4 |
| Placement ratea (Benchmark test) | 66,000 comp./h |
| Placement positions | 6,000 / gantry |
| Range of components | 0.4 x 0.2 mm² (01005) b, 0.6 x 0.3 mm² (0201)c to 18.7 x 18.7 mm² |
| Max. component height | 6 mm |
| Placement accuracy / angular accuracy | Camera type 28: ± 60 μm, ± 0.6° (3σ), ± 80 μm, ± 0.8° (4σ) Camera type 29: ± 60 μm, ± 0.6° (3σ), ± 80 μm, ± 0.8° (4σ) |
| Component feeding | 4 component changeover tables with tape reel holders and integral waste containers (12 locations, each 30 mm wide, for each component changeover table) |
| Feeder module types | Tapes, bulk cases, stick magazines, application-specific OEM feeder modules, surftape feeder modules (8, 12, 16 mm) |
| Feeding capacity | 48 tape feeder modules 3 x 8 mm S (144 tracks) 48 tape feeder modules 2 x 8 mm S (96 tracks) 48 tape feeder modules 12/16 mm S (48 tracks) 32 tape feeder modules 24/32 mm S (32 tracks) |
| PCB format (LxW) | Single conveyor 50 x 50 mm² to 368 x 460 mm² 50 x 110 mm² to 610 x 460 mm² (Long board option) (Width up to 508 mm for Wide board configuration) Flexible dual conveyor 50 x 50 mm² to 368 x 216 mm² 50 x 110 mm² to 610 x 216 mm² (Long board option) (Width up to 242 mm for Wide board configuration) Flexible dual conveyor in Single conveyor mode 50 x 50 mm² to 368 x 380 mm² 50 x 110 mm² to 610 x 380 mm² (Long board option |
| PCB thickness | 0.3 - 4.5 mm (thicker PCBs on request) |
