SMT Assembly SIEMENS Pick And Place Machine SIPLACE D Series D1

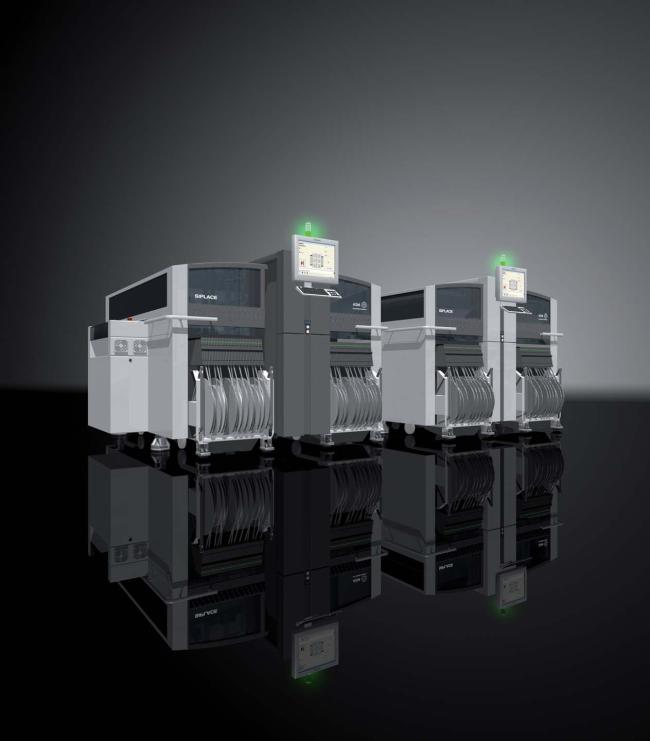

SIEMENS SIPLACE D1 Pick and Place machine
Product Description:
Perfect price-performance ratio: The SIPLACE D-Series is the perfect combination of high-tech innovation and widely-proven technology, with a price-performance ratio that is unique in the industry.
Best product quality: The SIPLACE D series has the highest production quality in its class - its excellent zero defect rate reduces your quality costs. The most attractive thing is that the machine maintains high quality for a long time. Even after many years of service, the SIPLACE placement machine still will maintain a high resale value.
High flexibility: With the SIPLACE D series, you can best prepare for the future. Thanks to its modular structure, the D series can be flexibly reconfigured; from replacing placement heads to converting from single rail to synchronous, asynchronous dual rail mode, all done quickly and easily.
Equipment parameters:
| Number of cantilevers | 1 |
| Placement head | 2 or 1 |
| IPC Speed | 13.000cph |
| SIPLACE benchmark | 15.000cph |
| Theoretical speed | 20.000cph |
| Component range(mm2) | 01005 to 200x125 |
| Head Features | 6 nozzle collect & placehead |
| Placement accuracy | ±52,5μm/3σ |
| Angular accuracy | ±0,225μm/3σ |
| Conveyor belt type | SIPLACE single track, flexible double track |
| Conveyor Mode | asynchronous, synchronous |
| PCB size | 50x50mm²－610x508mm² |
| PCB thickness | 0.3-4.5mm2 (other sizes can be customized upon request) |
| PCB weight | Max 3kg |
| Feeder capacity | SIPLACE Waffle Tray(WPW),SIPLACE Feeder |
| Pickup rate | ≥99,95%1 |
| DPM rate | ≤5dpm2 |
| Lighting class | 6-level illumination |
FAQ
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
Q: Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
