High Speed Fully Automatic Stencil Printer Machine GKG GSE

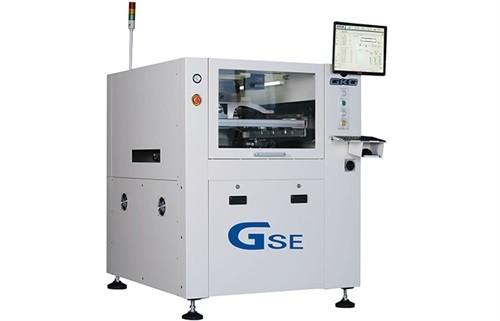

GKG GSE SMT Stencil Printing Machine
Product Description:
High precision, high speed, high stability, high cost performance
GSE automatic vision printing machine is a new product for SMT application field, which has the characteristics of high precision, high speed, high stability and high cost performance.
Equipment parameter:
| Bare board: | |
| Max bare board size(XxY) | 400*340mm |
| Min bare board size(XxY) | 50*50mm |
| Thickness | 0.4~6mm |
| Max weight | 3Kg |
| Edge clearance | 2.5mm |
| Bare board height | 15mm |
| Transport height | 900 ± 40mm |
| Transport speed | 1500mm/s(Max) |
| Transport method | One stage transport guide |
| Clamping | Manual loading |
| flexible side clip | |
| Support Method | Magnetic Thimble |
| Contour block | |
| Manually adjust the jacking platform | |
| Printing parameter: | |
| Printing (Snap-off) | 0-20mm |
| Printing mode | Single or double doctor blade printing |
| scraper type | Rubber Scraper/Steel Scraper (Angle 45/55/60) |
| Print speed | 10~200mm/sec |
| Printing pressure | 0.5~10Kg |
| Template frame size | 370*370mm~737*737mm |
| Cleaning method | Drip cleaning system |
| Enhanced vacuum adsorption function | |
| Dry, wet, vacuum three modes | |
| Image: | |
| Image Field of View (FOV) | 8*6mm |
| Datum point type | Standard shape reference point |
| pad | |
| hole | |
| Camera system | Vision system for top/bottom imaging |
| analog camera | |
| Geometry match positioning | |
| Performance: | |
| System alignment accuracy and repeatability | ±0.01mm |
| Actual solder paste placement repeatability | ±0.025mm |
| Repeatability of actual solder paste printing position based on third-party test system (CTQ, Germany) verification | |
| printing cycle | <8 sec (excluding printing and cleaning time) |
| Equipment: | |
| Power requirements | AC:220±10%,50/60HZ,2.5KW |
| Compressed Air Requirements | 4~6 Kgf/cm2 |
| Air consumption | around 5L/min |
| Working temperature | 一20℃~+45℃ |
| Working environment humidity | 30%~60% |
| Machine height (remove tri-color light) | 1463(H)mm |
| Machine length | 1158(L)mm |
| Machine width | 1362(W)mm |
| Machine weight | Approx:1000Kg |
