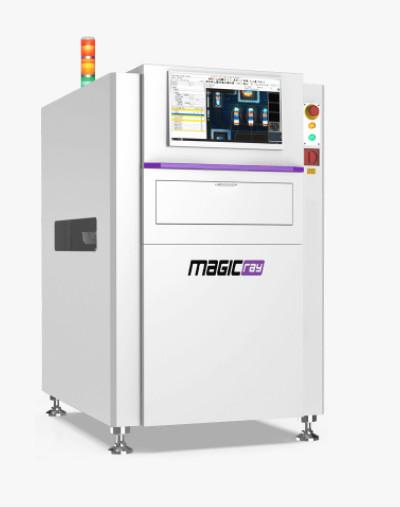

MAGICray AOI V5000 Automated Optical Inspection Systems AOI machine
MAGICray AOI V5000 Automated Optical Inspection Systems AOI machine
Product feature:
The whole system adopts marble platform and telecentric lens
Powerful algorithm logic, creating powerful solder joint inspection capabilities
Automatic compensation of plate bending, which can deal with flexible and high temperature deformation circuit boards
Abundant SPC inspection data analysis helps to improve and improve process quality.
Product parameter:
| Model No. | V5000(single rail) | V5000D(dual rail) | V5000XL(XL single rail) | V5000DL(XL dual rail) |
| Imaging system | Camera | 4MP/12MP industrial camera | ||
| Resolution | 4MP camera:20um 15um 12MP camera 15um 12um 10um | |||
| FOV | 30*30mm(4MP,15um) 60*45mm(12mp,15um) | |||
| height resolution | 0.37um | |||
| light source | 3-color ring programmable LED light source (RGB) | |||
| Motion mechanism | Height measurement method | Structured grating | ||
| exercise system | AC serve | |||
| Abutment | marble | |||
| rail width adjusted | automatic | |||
| rail type | belt | |||
| input direction | left to right, right to left | |||
| Hardware Configuration | rail height | 900±25mm | ||
| machine size | 935*1360*1570mm | |||
| measurement size | dual rail:50*60~510*320mm, single rail:50*60~510*580mm | |||
| board edge | 3mm | |||
| max measurement height | 600um | |||
| inspection item | tip, average height, offset | |||
| inspection speed | 400-450ms/FOV | |||
