“USA Standard 3 in 1 Water Downpipe Roll Forming Machine, Multi Function Rainwater Downspout Gutter Profile Making Machinery, Durable Metal Down Pipe Roll Former for American Construction”

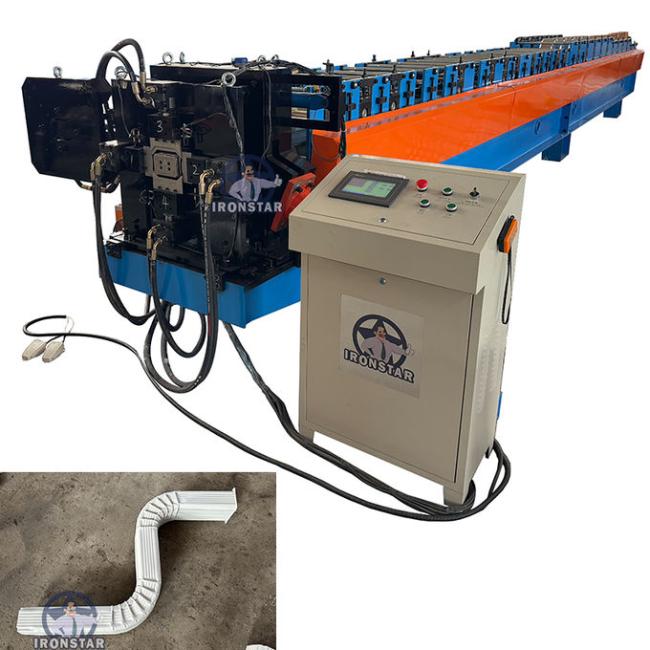

3 in 1 water downpipe roll forming machine in America
Short Description:
Water gutter roll forming machine popular sell in many countries, common Water gutter rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material
Water gutter roll forming machine | Gutter roll forming machine | downpipe roll forming machine
- Raw material:PPGI (Pre-Painted Galvanized Steel ) material
- Warranty:3 years
- Export port:Tianjin port
- Payment Terms:T/T, L/C, D/A, D/P
- Container:40 feet container
- Working days:40 working days
Diameter of Water gutter roll forming machine
| NO | Type | Specification | |
| 1 | Raw material | Type | PPGI |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
| 2 | Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||
| 3 | Main body | Roller station | 18 rows |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | Steel plate welding | ||
| Frame thickness | 16 mm | ||
| Machine size | About 7*0.8*1 m | ||
| Machine weight | About 3.8 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 5.5 KW | ||
| Pump motor for cutter | 4 KW | ||
| Voltage | 380V/50HZ, 3 phase or as customer' request | ||
| 6 | Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
- gutter forming machine
- gutter machine
- gutter machines for sale
- gutter making machine
- gutter production
- gutter profile machine
- gutter roll forming machine
- gutter roll forming machine for sale
- half round gutter roll forming machine
- portable gutter machine
- rain gutter forming machine
- rain gutter machine
- rain gutter making machine
- rain gutter roll forming machine
- seamless gutter machine
- used gutter machine canada
- Water gutter roll forming machine
-
Details of K gutter roll forming machine
Water gutter install
![英文网站-1]()
Feeder decoiler
![3T MANUAL (2)]()

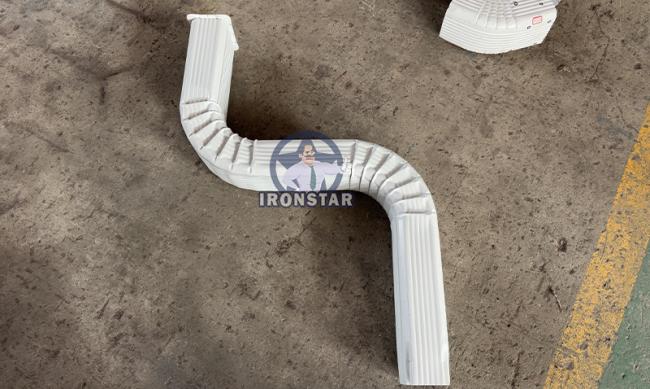

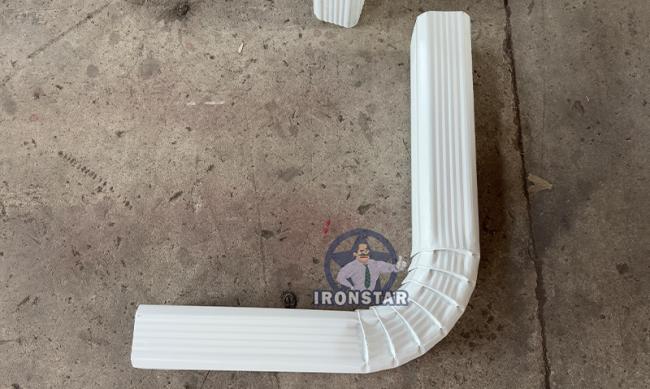

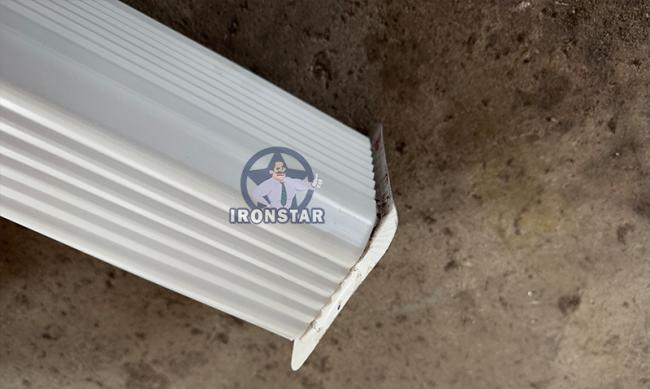

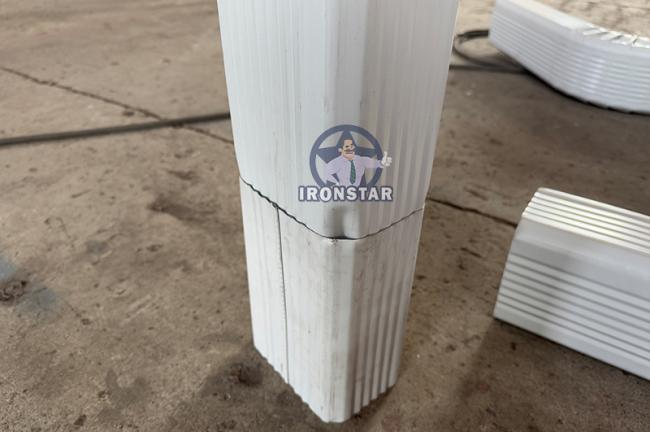

Down Pipe Product Show
Water gutter roll forming machine

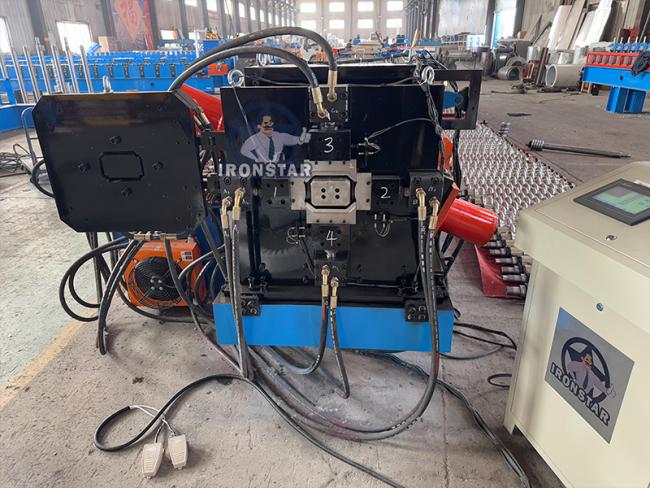

Machine cutter
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment

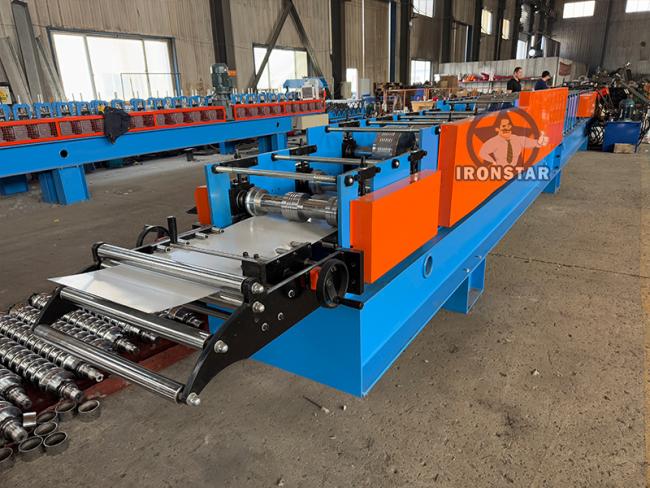

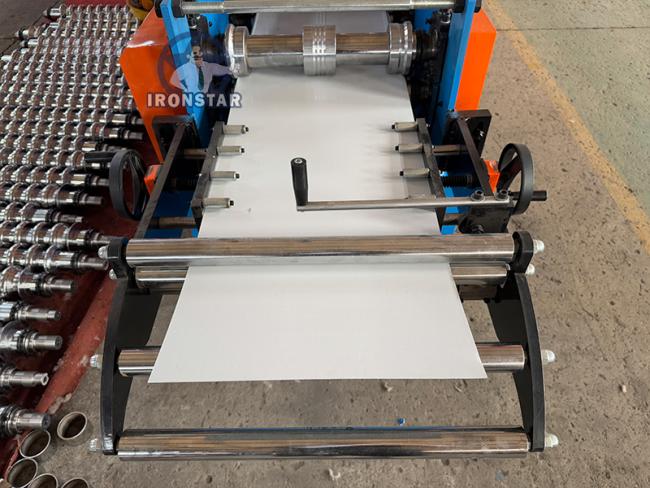

Feeding table
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel

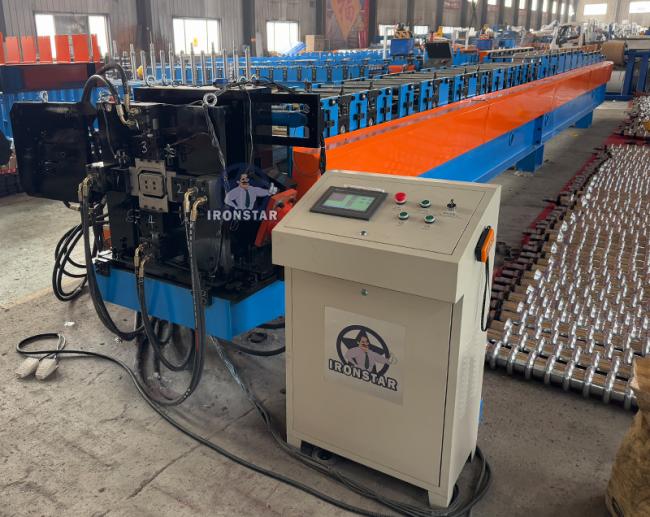

Control box
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need

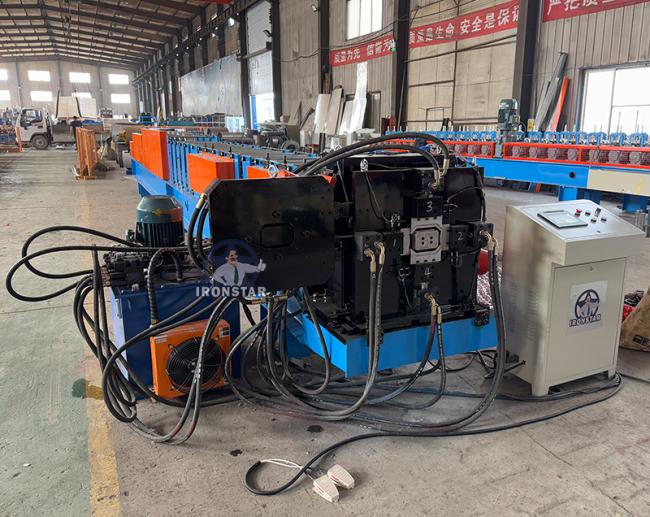

Hydraulic oil pump
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Receiving table
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
Spare parts free for customer
Packing & Payment & Service
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
