Steel Scrap Electromagnetic Lifter Moisture Resistance Easy Operation
Steel Scrap Electromagnetic Lifter moisture resistance Easy Operation
Electromagnetic Lifter Description
Suitable for cast ingot ,steel ball ,machine chip ,for various kinds of steel scraps ,return scrape ,cropping, baling scraps and etc in foundry factories and for iron powder in coal washery ,during slag disposal process ,it can remove large size of iron at initial step .Outlet box has two chambers, an extra-thick fender and an anti-twist setting .There are the excitation options; rated voltage DC220V; strong excitation; over excitation.
Electromagnetic Lifter Technical Parameters
|
Mpdel |
Diameter(mm) |
Dead weight(kg) |
Lifting Capacity(ton) |
|
MW5-50L/1 |
500 |
220 |
1.2 |
|
MW5-60L/1 |
600 |
340 |
2 |
|
MW5-70L/1 |
700 |
490 |
2.5 |
|
MW5-80L/1 |
800 |
620 |
3 |
|
MW5-90L/1 |
900 |
800 |
4.5 |
|
MW5-110L/1 |
1100 |
1350 |
6.5 |
|
MW5-120L/1 |
1200 |
1700 |
7.5 |
|
MW5-130L/1 |
1300 |
2010 |
8.5 |
|
MW5-150L/1 |
1500 |
2830 |
11 |
|
MW5-165L/1 |
1650 |
3200 |
12.5 |
|
MW5-180L/1 |
1800 |
4230 |
14.5 |
|
MW5-210L/1 |
2100 |
7000 |
21 |
|
MW5-240L/1 |
2400 |
9000 |
26 |
|
MW5-260L/1 |
2600 |
10100 |
30 |
|
MW5-280L/1 |
2800 |
12450 |
34 |
|
MW5-300L/1 |
3000 |
14980 |
39 |
Advantages of Electromagnetic Lifter
1. Adopt full sealing structure, good moisture resistance.
2. Reasonable product structure, light weight, large suction, low energy consumption.
3. The electrical and mechanical properties of the coil are improved, and the heat resistance of the insulation material reaches GRADE C, extending the service life.
4. Easy installation, operation and maintenance.

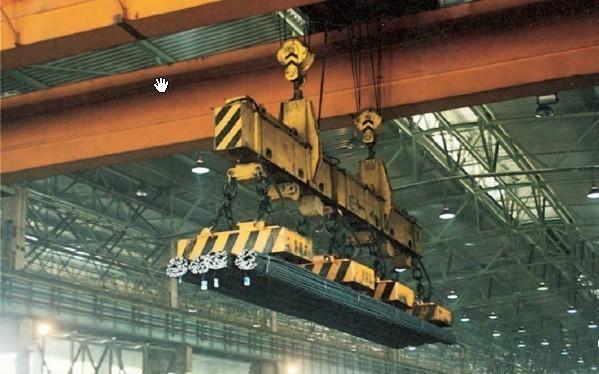

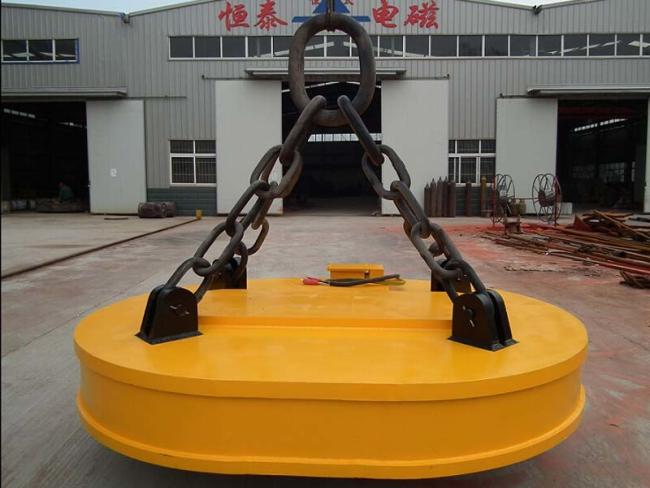

Electromagnetic Lifter Photo
