European Style Single Girder Overhead Crane With Hoist 5 Ton-10 Ton 220V-440V

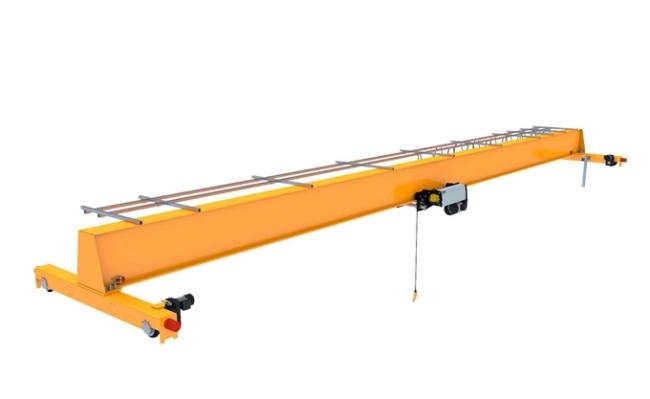

European Standard Single Girder 10 ton Overhead Crane EOT Traveling Crane

European Standard Single Girder Overhead Crane Introduction

European standard single girder 10 ton overhead crane for A3 working level is consisting of the beam, electric hoist, long travelling mechanism, cabin or hand controller,and electrical control system. The electric hoist can move horizontally on the rail fitted under a beam.This type crane holds many characters of light structure, easy to install and maintain, which is typically used for either manufacturing or maintenance applications, where efficiency or downtime are critical factors, for instance, plants, warehouses, or material stocks. The beam adopts the whole type without welding, which structure is more reasonable and reliable. Cabin, radio controller or hand controller can be used for operating. The cabin has seats inside. Floor adopts insulation pads and toughened glass for windows; extinguisher and fanareequipped. Other accessory equipments like air-condition, buzzer, interphone can be configured according to ourclient’s request! The travelling motor can be standard motor,soft stard motor or work with frequency controller to meet the different speed requirements.

European Standard Single Girder Overhead Crane Parameter

High Safety, Reliability, Efficiency and Maintenance Free

1. Germany ABM Hoist lifting motor double-winding squirrel-cage pole-changing dual speed hoisting motor with stable and reliable operation, and free of maintenance. SEW variable speed inverter controlled travelling motors with stable and reliable operation and low noise.

2. Safety monitoring systems for hoisting and travelling mechanism, many functions can be achieved according to the demands of users.

3. The crane provides with many protection including linkage, overload protection, zero protection and limit protection, ensuring the crane always under safety operation.

4. The crane provides with advanced PLC automatic detection function, which can perform measurement, calculation and monitoring to the performance, safety and working condition in order to ensure more safe and reliable transportation of items.

5. The Crane Standard working duty is FEM 2M/ISO M5, equipped with our ND or NR series electric rope hoist with 1,600 hours of service at full load.

6. Standard dual speed for hoisting and variable frequency drive (VFD) control speed for cross and long travelling. Which improve load handling and reduce load sway motions.

7. Electric Components. Electrical components uses ABB, Siemens and Schneider international brands.

European Standard Single Girder Overhead Crane Details
