CD Model 5 Ton Lifting Speed 8m/Min Compact Wire Rope Hoist
5 Ton CD Model Wire Rope Electric Traveling Hoist for Lifting
Electric Wire Rope Hoist Brief Introduction
Our factory can produce 1-20 tons of wire rope electric hoist, including CD and MD type, low headroom hoist, HC type large weight and high working level,HB/BHC explosion proof type , European electric hoist and Chain hoist.
The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc.
It can also be used as a winch.It is widely used in factories,mines,harbors,warehouses,cargo storage areas and shops.CD has one speed,MD has two speed.
Electric Wire Rope Hoist Technical Specification
| Type | CD1(MD1) | |||||||
| Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 |
| Lifting Height (m) | 3~9 | 6~12 | 6~30 | 6~30 | 6~30 | 6~30 | 9~30 | 9~30 |
| Lifting Speed (m/min) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | |||||
| Travel Speed (m/min) | 20 | 20/30 | 18 | |||||
| Rail | 10-20b | 16-28b | 20a-32c | 25a-50b | 32b-50b | 32b-63c | ||
| Work Duty | M4 | |||||||
Electric Wire Rope Hoist Characteristic
1.CD1/MD1 type electric hoist, have a compact structure, light weight, small volume, convenient operation, reliable quality, widely used, etc.
2.It can be used alone, also can as a complete set install in the electric single-girder, double beam, cantilever, gantry crane, etc.
3.When required fast speed and low speed, it should choose MD1 electric hoist type with double lifting speed.

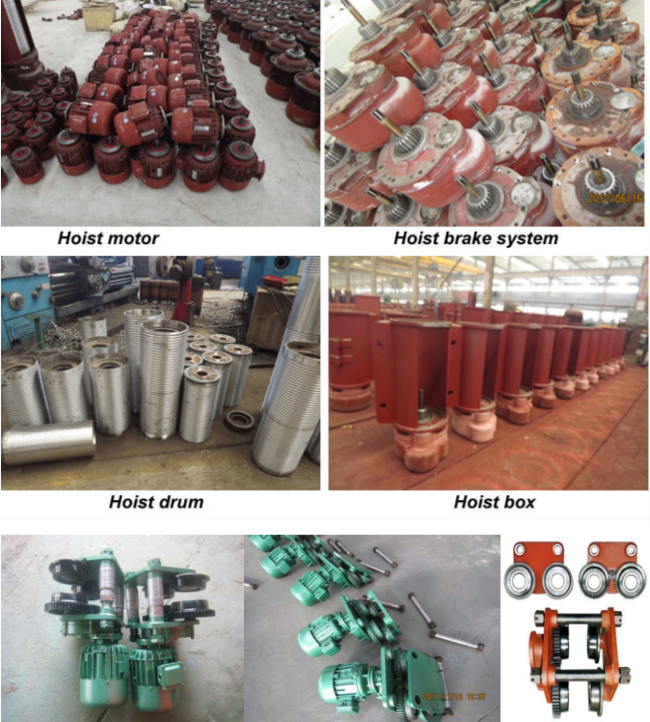

Electric Wire Rope Hoist Images
