Portable Medical Fingertip Pulse Oximeter Blood Oxygen Monitor 35.5g
Portable LED Finger Pulse Oximeter New Design Export Only Blood Oxygen Monitor
Fingertip Pulse Oximeter Operation:
1) SpO2 value display
2) Pulse rate value display, bar graph display
3) Pulse waveform display
4) PI value display
5) The display mode can be changed
6) Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
7) Pulse sound indication and over limit indication
Fingertip Pulse Oximeter Parameters
| Product Name | LED Display Private Model Pulse Oximeter |
| Measurement Range | SpO2: 35%-99% |
| Pulse Rate(PR): 30~240BPM | |
| Measurement Time | ≤20S |
| Resolution | Spo2: ±1% |
| Pulse Rate(PR): ±1BPM | |
| Accuracy | ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
| Low Perfusion | ≤0.4% |
| Power | Two of 1.5(AAA Size) alkaline batteries |
| Power Consumption | <30mA |
| Automatic Power-off | The product will automatically power off when no signals for 8s. |
| Operation Environment | Operation temperature: 5℃~40℃ |
| Humidity: 30%~90% | |
| Air pressure: 59KPa~107.4KPa | |

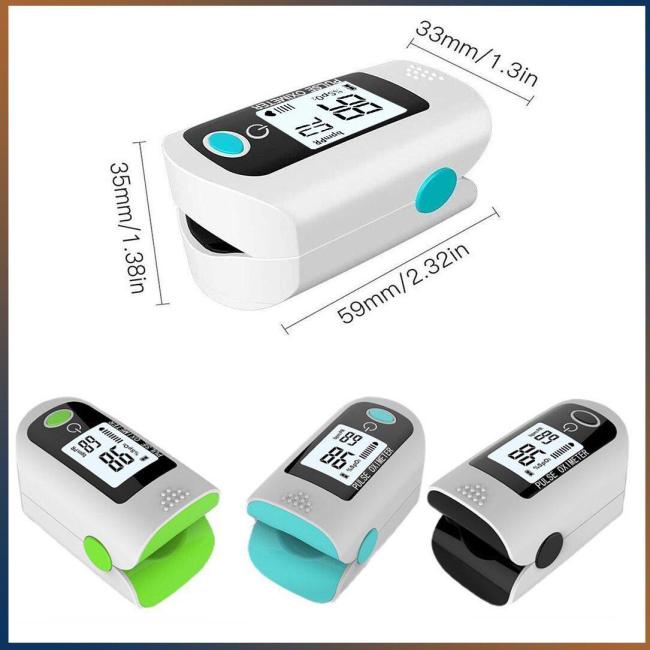

| Dimension | 58*32*22mm |
| Net Weight | 27.5g (Batteries Not Included) |
| Package | 1 Unit/Box, 200 Boxes/Ctn |
| Carton Size | 40*28*31cm |
| G.W./Carton | 8.1kg |
| Certificates | CE |
| Warranty | 6 months |
Fingertip Pulse Oximeter Features
-
Display Mode:0.96" LED display
-
Screen Resolution:128*64
-
SpO2 Measuring Range:0%~100%, (the resolution is 1%), accuracy:70%~100%:±2% ,Below 70% unspecified.
-
PR Measuring Range:30 bpm~250 bpm, (the resolution is 1 bpm), accuracy:±2 bpm or ±2% (select larger)
-
PI Measuring Range: 0 %~ 20%, accuracy:When the PI measure range is 1%~20%,the permission of absolute error is ±1%. When the PI measure range is 0%~0.9%,the permission of absolute error is ±0.2%
-
Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
-
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%
-
Power Consumption:less than 80 mA
-
Voltage: DC 2.6 V - 3.6 V
-
Power Supply:1.5 V (AAA size) alkaline batteries × 2
-
Safety Type:Interior Battery,BF Type
