China 90Kpa-60Kpa Battery Manufacturing Machine , 220 / 110V Lithium Battery Production Line for sale

90Kpa-60Kpa Battery Manufacturing Machine , 220 / 110V Lithium Battery Production Line

Name: 90Kpa-60Kpa Battery Manufacturing Machine , 220 / 110V Lithium Battery Production Line
Brand: Shandong Gelon Lib Co., Ltd

Price Negotiable

MOQ: 1 set

Delivery Time: 20~35days

Brand: Gelon

Product Description

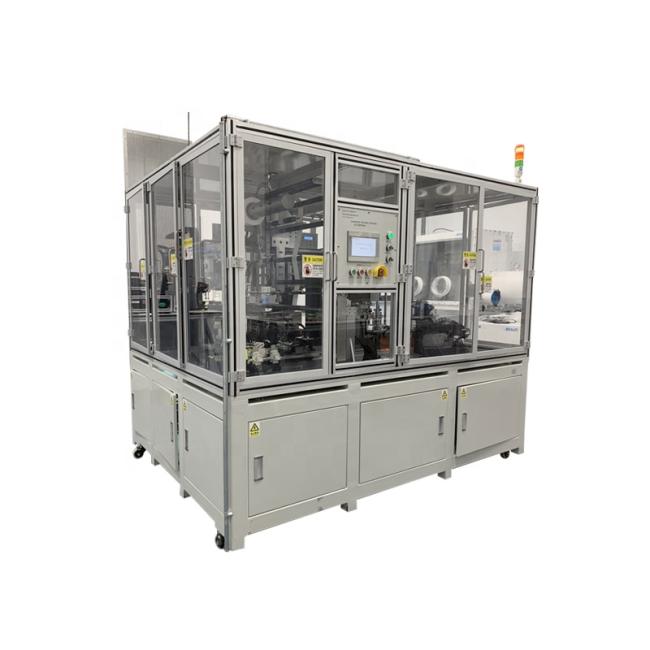

Automatic Battery Lamination Stacking Machine Battery Equipment Manufacturers

1. Brief Description

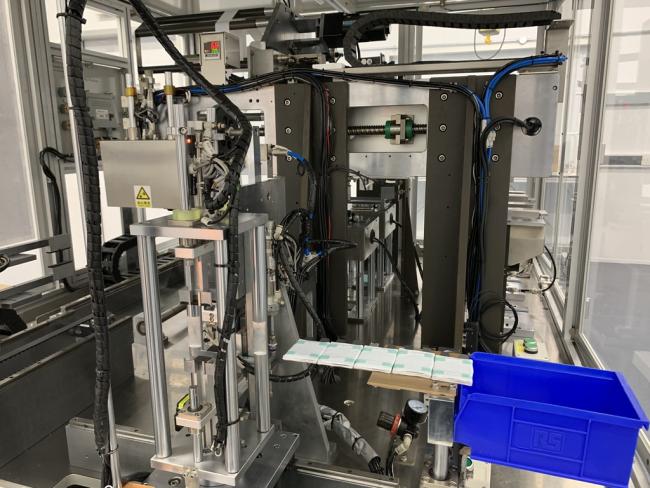

The machine is used for stacking cathode, anode and separator together. Put cathode, anode and separator roll in the right

position, the mechanical arm automatically stacks electrodes and separator.

2. Technology Index * Power: AC220V±10%/2.0KW

* Compressed Air: 0.5 ～ 7Mpa

* Vacuum: 90Kpa ～ -60Kpa

* Weight: 900Kg

* Outside size: 2000mm*1800mm*1700mm (L*W*H)

* Productivity: 1.1~1.5S/pc

* Electrode putting precision: ±0.2mm

* Separator putting precision: ±0.2mm

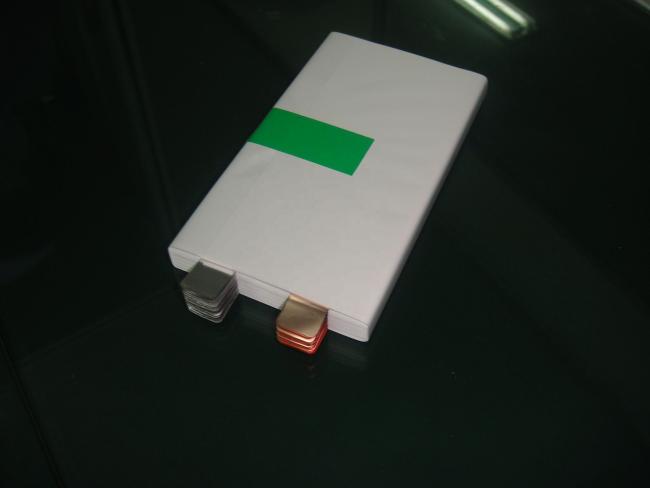

Suitable battery core specification(can be customized according to the buyer’s request)

			Item

			GN-DP300A

Suitable

			battery core specs

			thickness(mm)

			0～20

			width(mm)

			80～150

			length(mm)

			200～300

			Tabs length(mm)

			Q≤30

			vacuum

			Connect the user’s vacuum source(match the vacuum

			magnetic valve

			temhumidity

			5-45℃; 5-65%

Compressed air

			pressure 0.5-0.7Mpa(5kgf-7kgf/cm2)

			using volume 200L/min

			dry(with filter device)

			Single piece efficiency

			2~2.5s/pcs

			Single cell making time

			20S-40S(according to the length)

			Accuracy for Electrode And separator

			center error<±0.5mm

			stacking core width

			Min: anode electrode +0.6mmMax: anode width+1.3mm

			Stacking layer

			If within the thickness allowed range,can be set

			Battery core thickness

			≤20

			Fixture

			Suitable the single side tab

			Take down

			Worker take down and taping
