Gelon 220V Lithium Battery Vacuum Drying Oven with PLC Automatic Control Touch Screen 1-Year Warranty for Research Lab Line

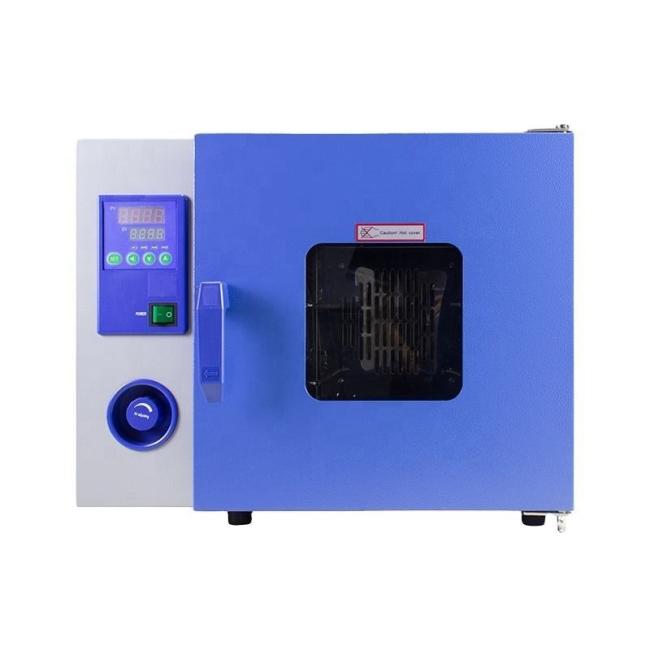

Gelon Lithium Battery Vacuum Drying Oven
Contact for details
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348
Products Description
Ⅰ．Features
1. Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
2. 3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.
3. Silicone door gasket and positive latch door maintain seal at all vacuum levels.
4. Exclusive polycarbonate safety shield protects door glass.
5. Easy-to-clean #304 stainless steel chamber interior.
Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
II. Specifications
|
Type |
GN-6020
|
|
Power Supply |
Standard AC220V 50HZ, 110V can customize |
|
Power |
400W |
|
Temperature Range |
RT+10～250℃
|
|
Temperature resolution |
0.1℃ |
|
Temperature fluctuation |
±1℃ |
|
Vacuum |
<133Pa |
|
Operating ambient temperature |
+5～40℃ |
|
Inner Chamber size(mm)W*D*H |
300*300*275 |
|
Outside size(mm)W*D*H |
605*490*450 |
|
Shelf |
one |
|
Weight |
About 50kg |
|
Timing range |
0~9999min |
|
Studio material |
Stainless steel liner |
