GN-VC-25H Gelon Lab Desktop Precision Coating Machine for Lithium-Ion Battery Electrode Film Coating
Gelon Gelon Lab Desktop Precision Coating Machine for Lithium-Ion Battery Electrode Film Coating
Contact for details
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348
Products Description
1．Overview
-
This product uses a micrometer to adjust and achieve the desired coating thickness of the electrode.
-
The equipment is equipped with a precise adjustable scraper, and the scraper push rod moves it at a constant speed to ensure the uniformity of the slurry coating on the foil.
-
This model of equipment is particularly suitable for making battery electrodes, ensuring the uniformity of the density of the electrodes.
2．Features
-

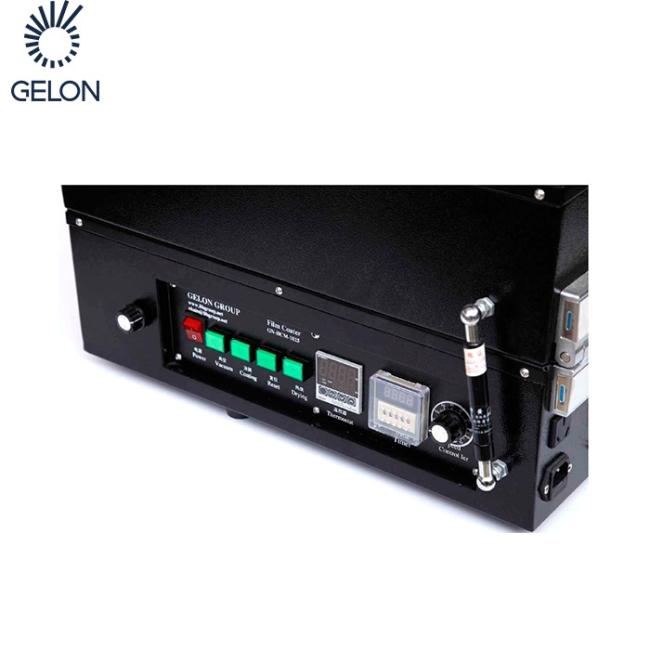

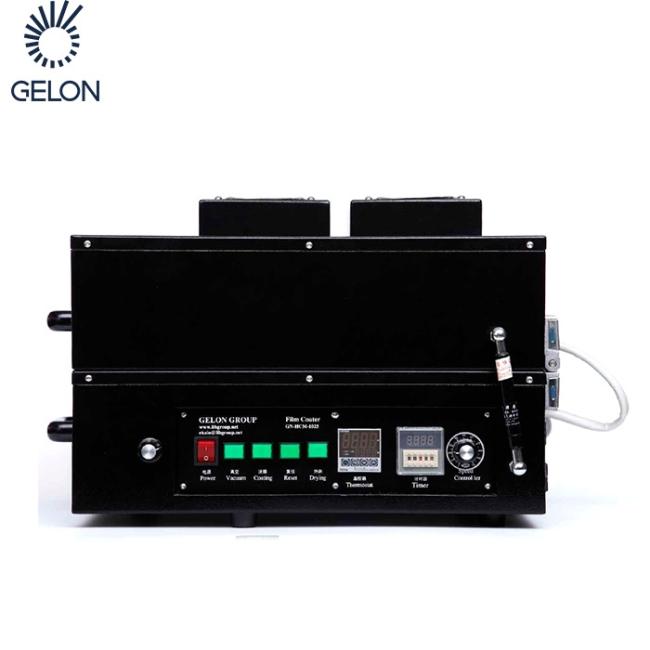

Drying and heating, with digital temperature display control.
-
Digital display timer, allowing for free setting of drying time.
-
Exquisite appearance, with sheet metal designed in a three-dimensional geometric style, simple and aesthetically pleasing.
3. Specifications
|
Name |
Parameters |
Remarks |
|
Vacuum |
Equipment equipped with vacuum pump |
|
|
Temperature |
Max. 100℃ |
Recommended around 80°C |
|

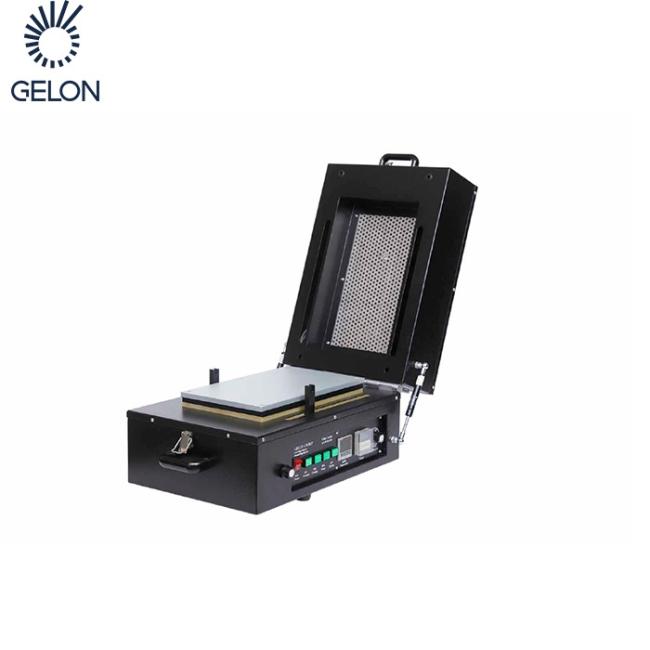

Vacuum Suction Plate Effective Dimensions |
300mm(L) x 250mm(W) |
Other sizes can be customized according to customer needs |
|
Vacuum Suction Plate |
Approx. Φ0.5mm/pc |
|
|

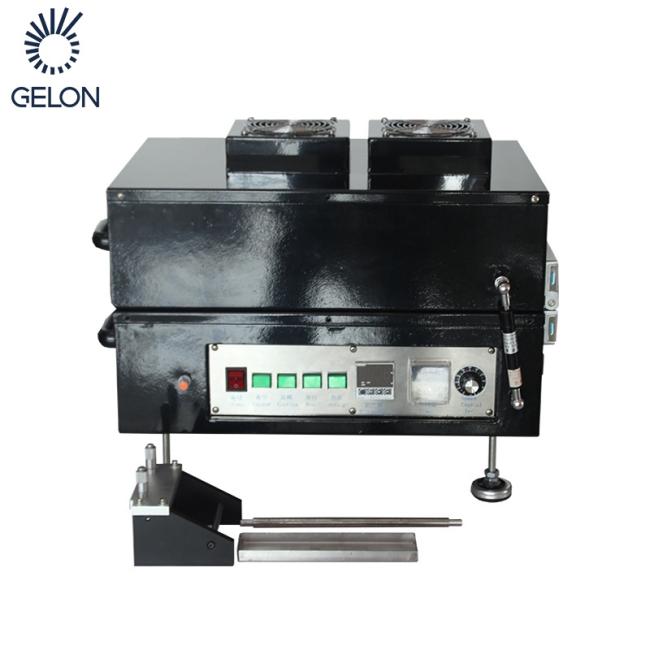

Adjustable Scraper |
250mm Standard |
The equipment comes standard with a set of scraper that is 250mm wide with adjustable thickness, with a scraper precision of 0.02mm; its adjustable thickness range is 0.01-3.5 mm; (optional 250mm thickness and width adjustable scraper, coating width range can be adjusted freely between 0-250mm) |
|
Gas Source |
0.5~0.8MPa argon, nitrogen (inside glove box), or 0.5~0.8MPa compressed air |
If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used if the equipment is placed outside the glove box. |
|
Power Supply |
AC220V/50Hz, AC110V/60Hz |
Customized |
|
Vacuum Pump Flow Rate |
70L/Min |
|
|
Power |
2200W |
|
|
Equipment Dimensions |
Approx. L600*510*H370mm |
|
|
Size of Wooden Box after Equipment Packaging |
Approx. L940*W700*H740mm |
|
|
Net Weight of Equipment |
Approx. 50kg |
Including vacuum pump |
|
Gross Weight of Equipment |
Approx. 82kg |
|
|
Usage Site |
|
Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions |
|
Warranty Period |
1-year warranty, lifetime maintenance |
|
|
Remarks: An optional viscosimeter can be equipped standardizing the viscosity of the slurry used during the most suitable coating , thereby maintaining the smoothness of the coating in each experiment. After the coating, a vacuum oven may be required to dry the thin film and remove the binder. To ensure the tightness of the coated electrode material with the substrate material, a calendaring machine can be used for rolling. |
||
