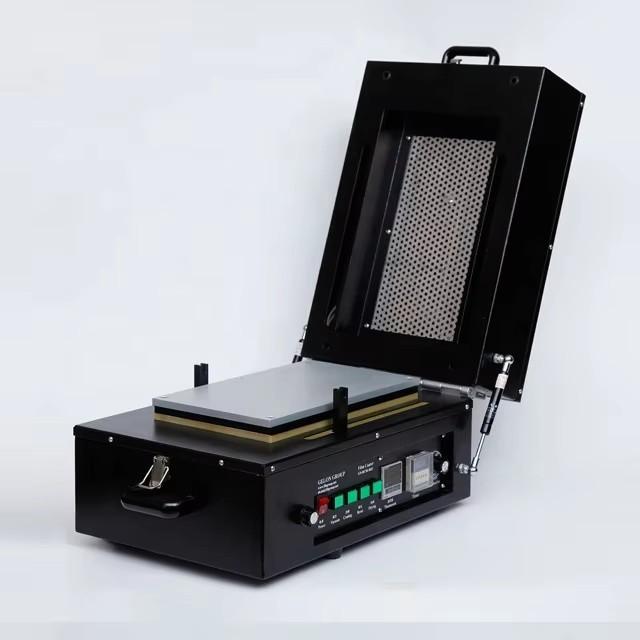

GELON GN-VC Series High-Precision Laboratory Film Coater for Battery R&D
Lab R&D Electrode Coating Machine for Battery Powder Slurry Coating Machinery Equipment GN-VC-15H
Contact for details
Email: Nirvana@libgroup.net
WhatsApp/Mobile/Wechat: +86-18774688262
Products Description
I. Equipment Accessories List
|
No. |
Name |
QTY |
Picture |
|
1 |
Machine/Manual |
Each 1 |
|
|
2 |
Power cord |
1 |
|
|
3 |
Vacuum pump |
1 |
|
|
4 |
Scraper |
1 |
|
|
5 |
Feed box |
1 |
|
|
6 |
Scraper push rod |
1 |
II. Equipment Introduction
|
No. |
Item |
Description |
|
1 |
Overview
|
1. This product uses a micrometer to adjust and achieve the desired coating thickness of the electrode. 2. The equipment is equipped with a precise adjustable scraper, and the scraper push rod moves it at a constant speed to ensure the uniformity of the slurry coating on the foil. 3. This model of equipment is particularly suitable for making battery electrodes, ensuring the uniformity of the density of the electrodes. |
|
2 |
Features |
1. Drying and heating, with digital temperature display control. 2. Digital display timer, allowing for free setting of drying time. 3. Exquisite appearance, with sheet metal designed in a three-dimensional geometric style, simple and aesthetically pleasing. |
|
3 |
Notes |
1. Before each work session, please carefully clean the scraper with a dust-free cloth moistened with alcohol. 2. Handle high-precision parts such as the scraper, micrometer, or digital display gently without knocking, and place them carefully. When adjusting the micrometer or digital display, ensure symmetrical and even adjustment on both sides. 3. Regularly inspect the screws, nuts, pins, and other fasteners of the machine to prevent malfunctions and accidents due to loosening. |
III. Process Effect
IV. Equipment Technical Parameters
|
Name |
Parameters |
Remarks |
|
Vacuum |
Equipment equipped with vacuum pump |
|
|
Heating Method |
Top heating |
|
|
Temperature |
Max. 100℃ |
Recommended around 80°C |
|
Vacuum Suction Plate Effective Dimensions |
250mm(L) x 150mm(W) |
Other sizes can be customized according to customer needs |
|
Adjustable Scraper |
150mmStandard |
The equipment comes standard with a set of scraper that is 150mm wide with adjustable thickness, with a scraper precision of 0.02mm; its adjustable thickness range is 0.01-3.5 mm; (optional 150mm thickness and width adjustable scraper, coating width range can be adjusted freely between 0-150mm) |
|
Gas Source |
0.5~0.8MPa argon, nitrogen (inside glove box), or 0.5~0.8MPa compressed air |
If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used if the equipment is placed outside the glove box.. |
|
Power Supply |
AC220V/50Hz,110V/60Hz |
Customized according to customer requirements |
|
Vacuum Pump Flow Rate |
70L/Min |
|
|
Power |
1700W |
|
|
Equipment Dimensions |
Approx. L570*W420*H380mm |
|
|
Size of Wooden Box after Equipment Packaging |
Approx. L900*W540*H560mm |
|
|
Net Weight of Equipment |
Approx. 50kg |
Including vacuum pump |
|
Gross Weight of Equipment |
Approx. 68kg |
|
|
|
Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions |
|
|
Warranty Period |
|
|
|
Remarks: An optional viscosimeter can be equipped standardizing the viscosity of the slurry used during the most suitable coating, thereby maintaining the smoothness of the coating in each experiment. After the coating, a vacuum oven may be required to dry the thin film and remove the binder. To ensure the tightness of the coated electrode material with the substrate material, a calendaring machine can be used for rolling. |
||

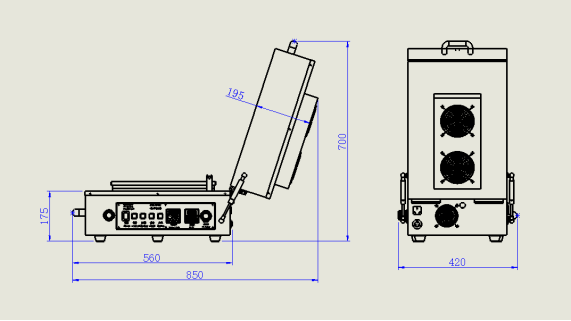

V. Equipment Installation Dimensions
|
