China Battery Pneumatic Single Spot Welder Mini Needle Welding Battery Production Equipment for sale

Battery Pneumatic Single Spot Welder Mini Needle Welding Battery Production Equipment

Price Negotiable

Price: USD6521-7921/PCS

MOQ: 1PCS

Delivery Time: 15-30days

Brand: Gelon

Product Description

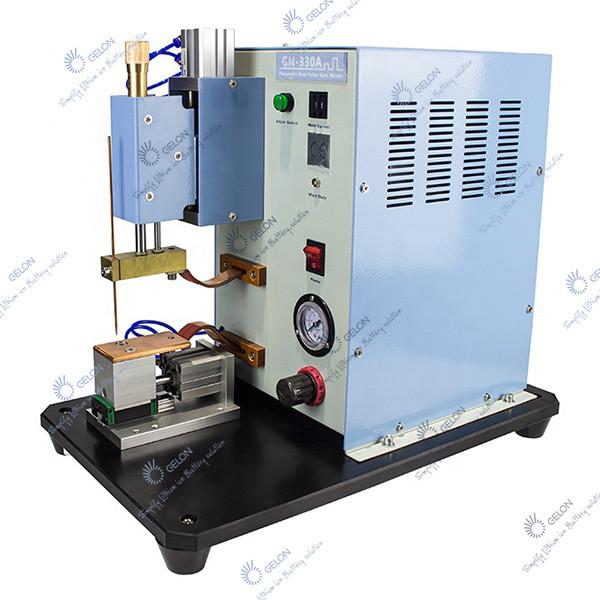

Battery Pneumatic Single Spot Welder Mini Needle Welding Battery Production Equipment

GELON precision spot welding is widely popular AC pulse spot welding, based on the production of high-grade battery (nickel-cadmium, nickel hydrogen, lithium batteries) the world needs now and specially designed. Microcomputer MCU control, more stable and reliable.

Mainly has the following features:

1. beautiful appearance, compact.

2. The joint appearance, a small spark, no black, and stable welding current, spot size uniform.Low pressure and water phenomenon

3. completely overcome lithium battery spot welding, is your ideal battery production assembly equipment.

4. As the machine uses microcomputer MCU control, can achieve single pulse, double pulse and multi-pulse welding.

5. Set the parameters are digital, so intuitive and accurate parameter adjustment.

6.SWA-2208/2408-type (sub-pedal and pneumatic), they all have accurate position, suitable for welding cap batteries, high-yield and other characteristics.

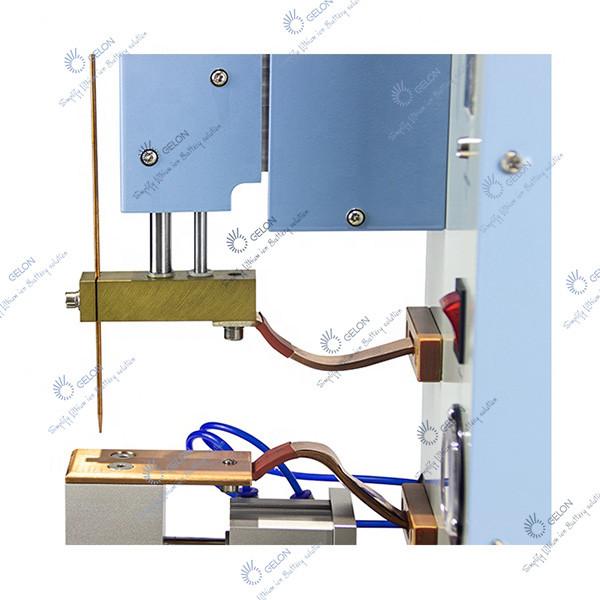

7. Pressure independent adjustment of two solder pins, and easy to adjust, to ensure the welding pressure is stable and reliable. Welding switch is the only use of photoelectric switches eliminate the need to replace the same machine switches .

Model	GN-330A
Power	AC 220V ± 10% 50Hz ± 2Hz
input air pressure	0.1-0.8MPa
welding current	00-99
Scope	Suitable for 0.03mm - 0.5mm in a variety of welding pieces.
OEM	China
Weight	45KG
