Baked Food Vertical Packing Machine Paper Bag Roll Film Packaging
Baked Food Packing Machine Vertical Paper Bag Roll Film Packaging
Machine Specification:
| Model | ZC--VP32 | ZC-VP42 | ZC-VP52 | ZC-VP62 | ZC-VP730 | ZC--VP85 |
| Packing Speed | 10-50 bags/min | 10-50 bags/min | 10-50 bags/min | 5~50 bag/min | 5----40 bags/min | 10~40 bags/min |
| Bag Size | (L) 50-190mm (W) 50-150mm | (L) 80-320mm (W) 70-200 mm | (L) 80-320mm (W) 70-200 mm | (L)120-400mm (W)110-300mm | (L)100-500mm(W) 80-350mm | (L)150-500mm (W)150-410mm |
| Bag Making Form | Pillow type back seal bag (roll film for packaging material, automatic bag making by machine is upper sealing, lower sealing and back sealing.) | Pillow bag (optional: stand-up bag, prong bag, punch bag)) | Roll film for packaging materials, back seal bag | Pillow bag, stand-up bag, hole punching bag | ||
| Maximum Packaging Film Width | 320mm | 420mm | 420mm | Max 2500ml | 730mm | 850mm |
| Measurement Range | 500ml | 1000ml | 1000ml | 620mm | Max2000ML | Max 7500ML |
| Membrane Thickness | 0.04-0.12mm | 0.04-0.10mm | 0.04-0.10mm | 0.04-0.14mm | 0.04-0.15mm | 0.04-0.14m |
| Complete Set of Air Consumption | 0.8Mpa 0.5m3/min | 0.8Mpa 0.3m³/分 | 0.8Mpa 0.3m³/分 | 0.8Mpa 0.5m3/min | 0.8Mpa 0.7m3/min | 0.8ps 0.4m3/min |
| Total Power/Voltage | 2.5KW/220V 50Hz | 2.7KW/220V 50Hz | 2.7KW/220V 50Hz | 4.2KW/220V 50Hz | 7.0KW 380V 50Hz | 6.5KW 220V 50Hz |
| Dimensions | (L)1350*(W)820*(H)1150mm | L1480*W960*H1400mm | L1480*W960*H1400mm | L1964*W1240*H1960mm | L2100*W1640*H2040mm | |
| Switchboard Weight | 380kg | 450kg | 450kg | 450kg | 680KG | 780KG |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
With the increasing demand for bakery food additives. The bakery food additive packaging machine can strictly control the packaging quality of bakery food additives and help the food additive industry to produce efficiently. Bakery food additive packaging machine. Packaging: Breathalyse, erythrocyte, maltose, lithology, brown sugar powder, solicitor, polypropylene glycol, mannitol, natural vitamin C, baking powder, enzymes, dietary fiber and other baking cake additives.

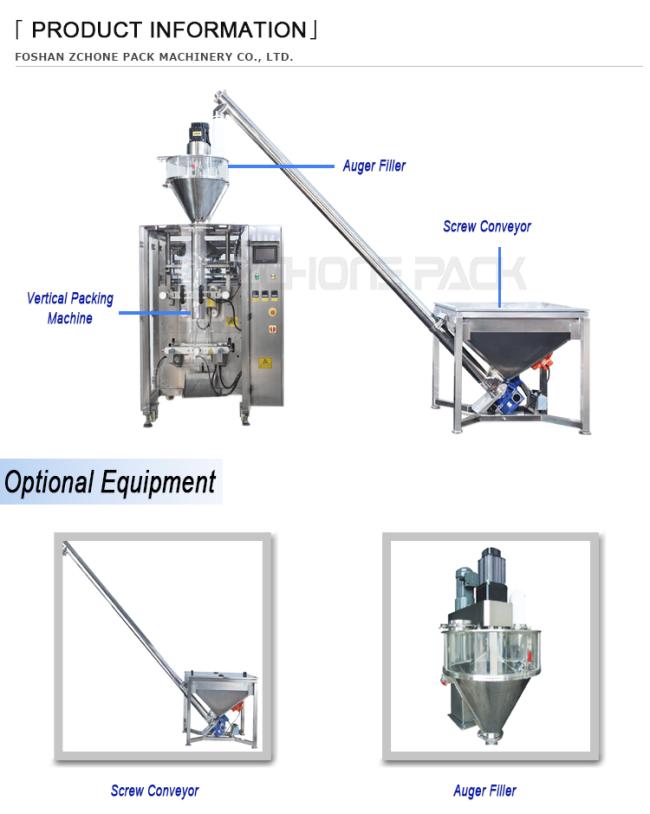

According to the different packaging styles and dosages, bakery food additive packaging machines include vertical packaging machines for baked food additives, bag-feeding packaging machines and horizontal packaging machines. Among them, the vertical packaging machine has a series of functions such as automatic feeding, metering, bag making, filling, sealing, bag cutting, printing, counting, and conveying. , the necessary equipment to improve the packaging grade.
Advantages of vertical packaging machine:
1. Adopt closed screw feeding system, inclined conveying, prevent powder dust from overflowing, clean and hygienic, easy to clean and low noise.
2. The spiral meter adopts stepper motor and electronic weighing technology, and is equipped with a combined transparent material box, which can visually observe the materials in the material box, and is equipped with a height adjustment hand wheel with a reasonable position, which can adjust the height of the machine head.
3. The unit is controlled by PLC program, and the touch screen is operated in Chinese and English, which clearly displays the working status, operation instructions, etc., and the operation is intuitive and simple.

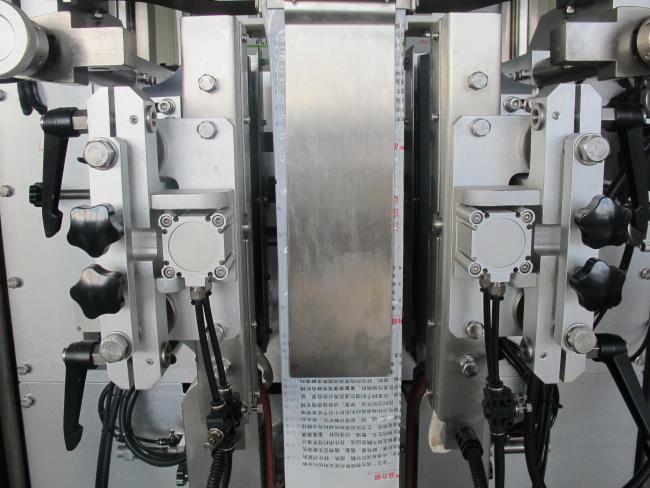

4. The high-precision servo film feeding system is adopted, and the film feeding is stable. With the photoelectric automatic positioning and tracking system, the positioning accuracy is high. No need to stop the machine, you can directly adjust the position of the rectifying sealing and cutting on the touch film screen, the sealing and cutting are smooth and the incision is neat.
