Iadc 537 Tricone Bit Drilling For Water Oil Gas Drilling
7 7/8" 200mm IADC537 TCI Tricone Rock Bit for Water Oil Gas Drilling
According to the number of cones, it can be divided into single-cone, double-cone, three-cone and multi-cone bits. The most widely used at home and abroad is the tri-cone bit. Roller cone bits are an indispensable and important part in oil, water well, HDD and various drilling industries.
Product Features
1. The use of high-strength and high toughness hard alloy teeth improves the impact resistance of the teeth and reduces the rate of tooth breakage;
2. The optimized design of tooth arrangement, tooth number, exposed tooth height, and unique alloy tooth shape fully utilizes the cutting ability and cutting speed of the drill bit;
3. Adopting a snap spring to lock the tooth wheel, capable of withstanding high drilling pressure;
| Basical Specification | |
| Bit Size | 200mm |
| IADC Code: | 117/127/517/537 etc. |
| Thread Connection | 2 3/8 API REG PIN |
| Series | rubber sealed bearing |
| Recommended Drilling Parameters | |||
| IADC | WOB(kn/mm) | RRM(r/min) | Applicable Formations |
| 116 117 | 0.35~0.8 | 150~80 | Very soft formations with low compressive strength and high drillability.such as clay,mudstone,chalk,etc. |
| 126 127 | 0.35~0.9 | 150~70 | Soft formations with low compressive strength and high drillability,such as mudstone,gypsum,salt,salt,soft shale,soft limstone,etc. |
| 136 137 | 0.35~1.0 | 120~60 | Soft to medium soft formations with low compressive strength and high drillability,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds,etc. |
| 216 217 | 0.4~1.0 | 100~60 | Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft for mations with harder interbeds etc. |
| 246 247 | 0.4~1.0 | 80~50 | Medium hard formations with high compressive strength,such as abrasive shale,limestone,sandstone,dolomite,hadr gypsum,marble,etc. |
| 417 437 447 | 0.35~0.9 | 150~70 | Very soft formations with low compressive strength and high drillability,such as clay,gypsum,salt,soft shale,soft limestone,etc. |
| 517 527 | 0.5~1.0 | 140~60 | Soft formations with low compressive strength ang high drillability such as mudstone,gypsum,salt,soft shale,soft limestone,etc. |
| 537 547 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,mediun soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds.etc. |
| 617 627 | 0.45~1.1 | 90~50 | Medium hard formations with high compressive strength such as hadr shale,limestone,sandstone,dolomite,etc. |
| 637 | 0.5~1.2 | 80~40 | Hard formations with high compressive strength, such as sandstone,limestone,dolomite,hard gypsum,marble,etc. |
| Note:the upper limits of WOB and Rpm in above lable should bot used simulaneously | |||
Packing: standard exporting packing.
Delivery: Normally 7-10 days after your advanced payment.

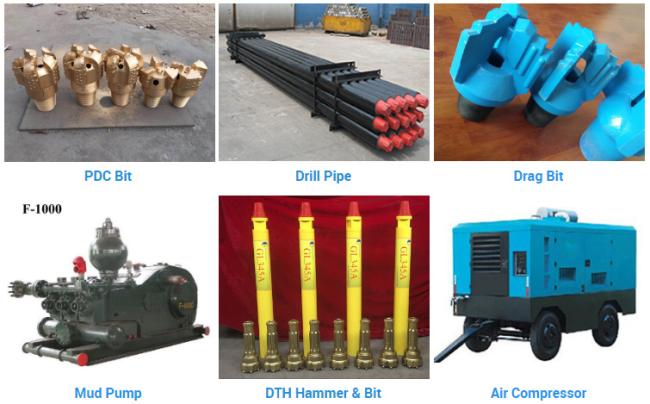

Related Products:
