GL - IIA 300m Small Well Drilling Rig Portable Trailer Mounted Diesel Engine Power

Price Negotiable
Price: To be negotiated
MOQ: 1 sets
Delivery Time: 20 workdays
Brand: GLORYTEK
Product Description

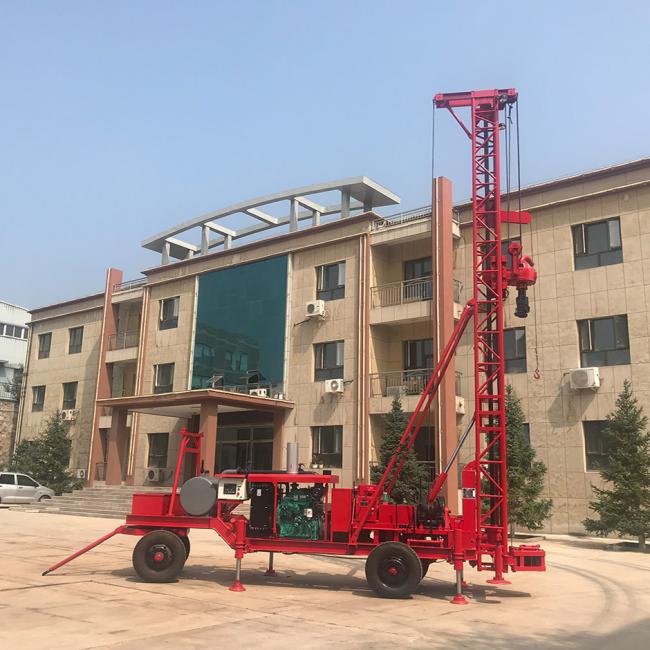

GL - IIA 300m Small Portable Trailer Mounted Water Well Drilling Rig With Diesel Engine Power


1,Description:


>> A drilling rig is a machine designed to drill a hole in the Earth’s crust. Since long time, various drilling techniques, like percussion, auger, etc have been used;
>> Water well drilling rigs also called water well drilling equipment, are mainly used to develop groundwater resources, including domestic, agricultural, and industrial water drilling work.
>> It is also suitable for hydrogeological exploration, construction engineering, and bridge foundation drilling. Water well drilling rigs are divided into small water well drilling rigs,Trailer and crawler water well drilling rigs.
>>Can save a lot of auxiliary time and water well drilling rig when lifting drilling tools, thereby increasing the pure drilling time.
>>Hydraulic control can be used to realize hydraulic feed pressure and decompression drilling of drilling tools.


2,Applications:

(1).Powerhead drilling rigs adopt long-stroke feed mode to meet the high-speed requirements of multi-process drilling rigs.
(2).The degree of mechanization is relatively high, and the labor intensity is reduced.
(3).
it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.


3,Specifications:



Drilling Parameter
Hole diameter: 90--1200(mm)
Hole depth: 400(m)
Run Of Rod : 3,4(m)
Drill rod diameter: φ73 φ89 φ95 φ133(mm)
Drilling Technology: Normal and Reverse Circulation for both Mud and Air
Down-The-Hole hammers: Middle-High-Pressure Air
Performance Parameter
Drill Head Inside Diameter : Φ60 φ80 φ120
Drill Head lifting speed(m/s): 0.37 0.16
Drill Head lifting Force(T): 18T
Drill Head Spin Speed: A(Forward:14-23-52-84,Reverse:8-13-29-47r/min)
B(Forward:32-52-116-188,Reverse:18-29-65-106r/min)
Shape Parameters
Dimensions: (L-W-H) Working conditions 5300×2000×7200(mm)
Transport status: (L-W-H) 7900×2000×3000(mm)
Supporting Form: Mechanical Screw
Mast Up-Down: Hydraulic Type
Rig mass: 3800(Kg)
Chassis: Trailer with four wheels
Power Unit: Diesel Engine
Power: 49(kW)
Pump: LBN-20 Normal and Reverse Circulation Pump Group
Flow(m³/h): 80
Main Hoist Lifting Force: 3T
Feed Thrust: 2T
Notes: Drill head spin speed can be selected, A is normal
