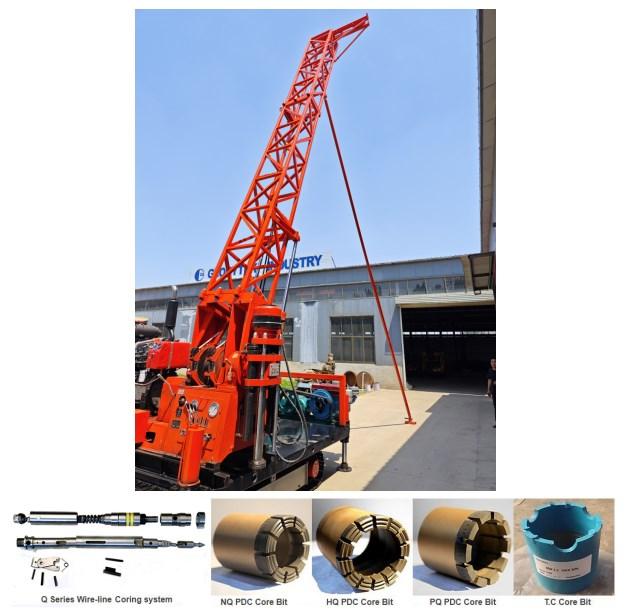

Mineral Geotechnical Drilling Rigs Up To 1000 Feet Inclined Hole
Product Description:
Exploration Drilling Rigs are designed for surface exploration drilling projects. They are equipped with a diesel engine rated at 30.1kw, and a spindle stroke of 560mm. The rigs are lightweight, weighing 1100kgs, yet can drill to depths of up to 1000 feet. These reliable rigs provide a secure and efficient way to explore geological formations.
Features:
- Subsea Exploration Rig
- Drill rig dimensions: L2200*W900*H1800
- High-capacity Exploration Rig: Wire rope capacity: 50m
- Motor rated power: 22kw
- Spindle stroke: 560mm
- Wire rope dia: 12.5/14(Optional)
Technical Parameters:
| Parameters | Specification |
|---|---|
| Drill rig dimensions | L2200*W900*H1800 |
| Motor rated speed | 1470(r/min) |
| Usage | Geological Exploration |
| Wire rope capacity | 50m |
| Drilling Depth | Up To 1,000 Feet |
| Hydraulic tower height | 8.5m |
| Wire rope dia | 12.5/14(Optional) |
| Max .lifting capacity(single rope) | 3000kgf |
| Diesel engine rated power | 30.1kw |
| Spindle stroke | 560mm |
| Subsea Exploration Rig | Yes |
| Subsea Drilling Rig | Yes |
| Offshore Drilling Rig | Yes |
Support and Services:
At Glorytek, we pride ourselves on providing the highest quality technical support and services for our exploration drilling rigs. Our team of experienced professionals are available 24/7 to offer help with any issues that may arise during the operation of the drilling rig, from basic maintenance to complex repairs.
Packing and Shipping:
Exploration drilling rigs are packaged and shipped in a secure and safe manner for transport. To ensure the rig is safe and secure, all parts will be securely fastened to prevent any damage or movement during shipping. The rig will be wrapped in a protective material such as plastic wrap or padding to prevent any scratches or dents.
The rig will be loaded onto a truck or trailer. It will be strapped down to the trailer to ensure it remains in place during transport. If the rig is too large to be loaded onto a trailer, then a crane or other lifting device may be used to safely load the rig. The rig will then be transported to its destination.
FAQ:
Q: What is the brand name of Exploration Drilling Rigs?A: The brand name of Exploration Drilling Rigs is Glorytek.
Q: What is the model number of Exploration Drilling Rigs?
A: The model number of Exploration Drilling Rigs is GLXY-2T.
Q: Where is Exploration Drilling Rigs made?
A: Exploration Drilling Rigs is made in China.
Q: What certifications does Exploration Drilling Rigs have?
A: Exploration Drilling Rigs has CE, TUV, and SGS certifications.
Q: What is the minimum order quantity of Exploration Drilling Rigs?
A: The minimum order quantity of Exploration Drilling Rigs is 1SET.
