Gl110 Dth Drilling Hammer Rock Drill Tools Cir110 Low Pressure

Price Negotiable
Price: To be negotiated
MOQ: 1 piece
Delivery Time: 5-7 workdays
Brand: GLORYTEK
Product Description

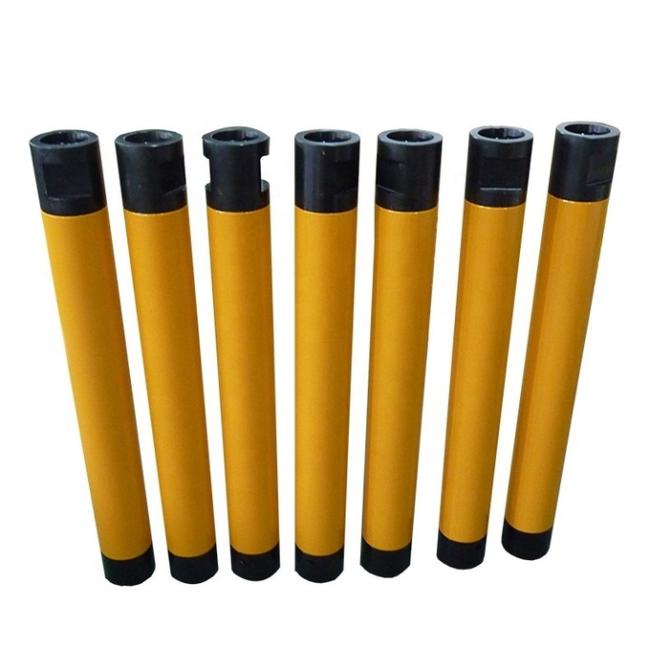

GL110 DTH Drilling Hammer Rock Drill Tools CIR110 Low Pressure DTH Hammer

1.Features:

DTH Hammer has a wide range of use in all kinds of hard and abrasive rocks.
>>DTH hammers are used for blast hole drilling and blasting, mainly applied in Mining,
>>Marble quarry or well drilling and other construction projects.
>>New products designed based on mining condition in china, improving by advanced technology from global market.
>>Superior materials, advanced process,guaranteed quality.
>>Faster drillinq rate.
>>Hardness can be enhaced to expand the lifespan of hammer, and lower the cost.
>>Huge impulse with low consumption of electricity.
>>The modern theory is adopted in the structural design, which makes the stress.

2.Application:
They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.



3.Specifications:

Item GL65B GL70 GL76 GL80 GL90 GL90-1 GL110 GL150 GL170
Drilling Dia.(ф/mm) 68-70 72-74 74-76 80-82 90-130 90-130 110-150 150-185 170-250
Hammer Length(mm) 745 803 766 796 796 796 838 908 1023
Outside Dia.(ф/mm) 61.2 67.2 67.2 72 80.2 80 98 137 156
Weight(kg) 13 14 15 17 20 20 30 75 90
Working Pressure(Mpa) 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7
AirConsumption(M3/Min.) 2.5 3 3 5 6 5.5 11 17 19.5
Torque(N.M) 51 70 75 81 110 120 180 340 420
Impact Frequency (Times/Min.) ≥810 ≥810 ≥810 ≥800 ≥820 ≥820 ≥830 ≥800 ≥790
Connection 1 M42×10×1.5P DZ50 M48×10×2P M48×10×2P M48×10×2P M48×10×2P API 2 3/8REG API 3 1/2REG API 3 1/2REG
Connection 2 ф37-4 ф43-6 ф44-4 ф50-6 ф54-6 ф54-6 ф65-6 ф90-6 ф98-6

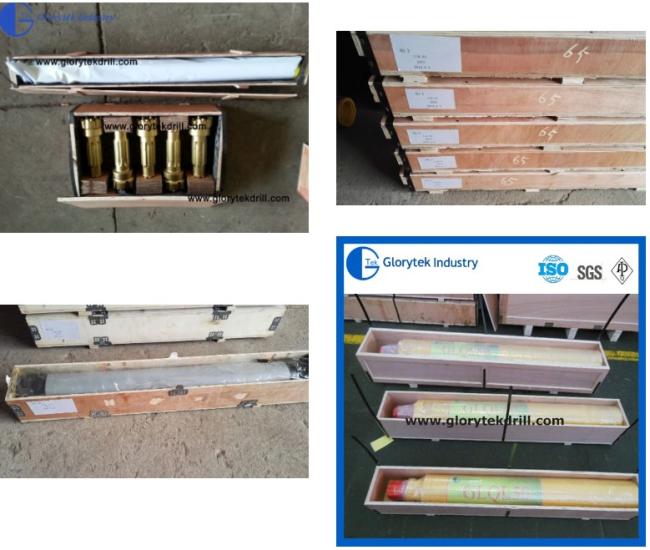

4.Packaging & Shipping

We normally have stock, we can prepare shipment within 3 days after placing order. Shipping by express, by air and by sea are all available.







Related Product
We can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.



Company Profile




Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.



Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.



FAQ

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ?
A: No requirement for testing and trial order.
