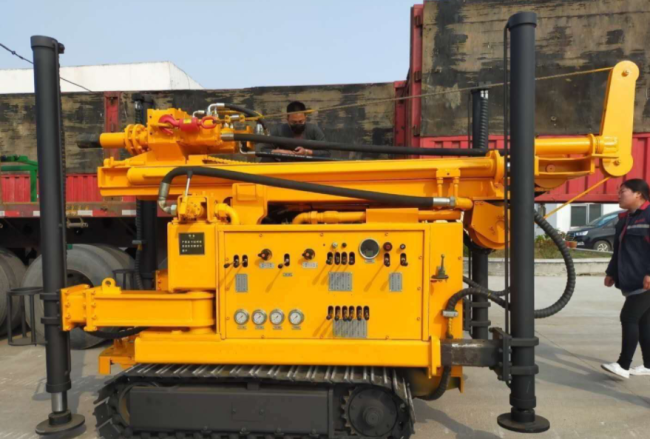

The drilling rig is a powerful and versatile machine designed for various drilling applications. With a maximum drilling depth of 300 meters and a drilling diameter range of 105-273 mm, it can handle a wide range of drilling tasks. The rig operates with an air pressure range of 1.2-3.5 MPa, providing the necessary force for efficient drilling. It has an air consumption rate of 16-55 m³/min, ensuring a steady supply of compressed air.
Equipped with a 90 kW diesel engine, the rig delivers reliable performance and ample power for drilling operations. The main shaft pressure reaches up to 5 tons, while the lifting force is rated at 18 tons, ensuring efficient lifting and lowering of drilling equipment. The rig's total swing stroke measures 3.6 meters, allowing for precise positioning during drilling operations.
The rig is capable of generating a maximum rotary torque of 10,000 Nm, with a maximum rotary speed of 50/100 rotations per minute, providing efficient drilling performance. It also features a secondary winch with a lifting force of 2 tons for additional lifting needs. The jacks have a stroke of 1.4 meters, contributing to the rig's stability during drilling.
With a moving speed of 2.5 km/h and an uphill angle capability of 21 degrees, the rig offers excellent mobility and maneuverability even on challenging terrains. It has a weight of 5.5 tons, ensuring stability during drilling operations.
The drilling rig's compact overall dimensions of 2400 mm in length, 1350 mm in width, and 2000 mm in height facilitate easy transportation and operation in confined spaces. It is suitable for drilling in loose bed and bedrock conditions, and it supports various drilling methods, including top drive hydraulic rotating and feeding, DTH percussion drilling, and mud drilling. The rig is compatible with high-pressure hammers, ranging from 5" to 8" in size.
In summary, this drilling rig combines power, versatility, and mobility to handle a wide range of drilling tasks. Its robust specifications, including drilling depth, diameter, air pressure, and lifting force, make it a reliable choice for various drilling projects.
